Description

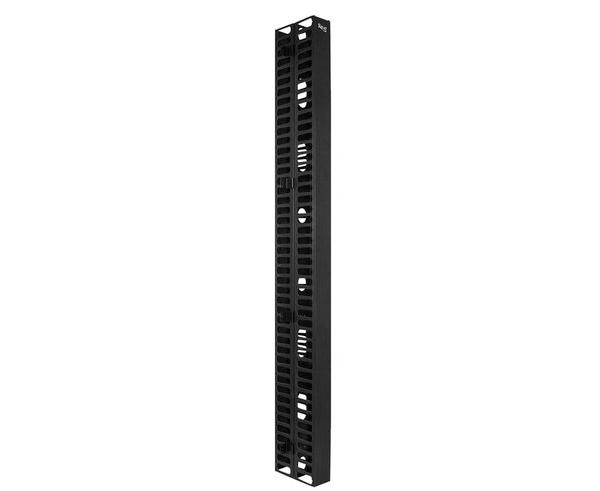

Double-Sided Vertical Finger Duct 78"
Our Double-Sided Vertical Finger Duct Panels (side-mount) panels are 4 in. x 5 in. x 8 in. high and provide vertical cable management for the front and back of the rack. This product comes complete with mounting brackets and screws. This package also includes a snap-on cover to help keep cables organized and neat in appearance.
Product Quality
This product is constructed from 16 GA CRS and is UL 94V-0 with large finder openings that create flexibly for patch cord routing. Vertical Finger Ducts fit on the side of individual racks and are equipped with feed-through holes on the back side for easier cable routing.
Features
Features
- Provides flexibility for vertical cable management.
- Fits on the sides of individual racks.
- Equipped with feed-through holes on the back side for easier cable routing.
- Includes covers to conceal routed cables providing a neat and clean appearance.
- Compatible with all distribution racks.
- Large finger openings create flexibility for patch cord routing.
- Manages cable bundle.
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Duct Panel | Panel Cover | Bracket |
| Material: PVC, UL 94V-O | Material: PVC, UL 94V-O | Material: 16 GA CRS |
| Finish: Texture, Black | Color: Black | Surface Finish: Black Powder Coat |
Additional Information
| ESTIMATED CABLE FILL CAPACITIES | ||||||
|---|---|---|---|---|---|---|
| FEATURE | CHANNEL DEPTH (WXD) | USABLE AREA (IN²) | CAT 5E (.18” OD) | CAT 6 (.225” OD) | CAT 6A (.34” OD) | FIBER (.079” OD) |
| 5” Channel Size | 7.5” x 10” | 36.72 In² | 378 | 238 | 112 | 1752 |
| Finger Spacing | 1.3” x 3.67” | 4.31 In² | 45 | 30 | 12 | 225 |
| Large Pass-through | 2.25” x 5” | 10.16 In² | 103 | 70 | 30 | 600 |
| Small Pass-through | 2” x 2.5” | 4.14 In² | 42 | 28 | 11 | 247 |
| *Cable capacities are based on ICC’s cable diameter. | ||||||
What's in the Box
What’s in the Box
- Qty 2 - Double-Sided Vertical Finger Duct Panel, 4”x5”x78”
- Qty 4 - Mounting Brackets
- Qty 2 - Double-Sided Vertical Finger Duct Panel Cover, 4”x5”x78”
- Qty 8 - Pilot Point Machine Screw, #12-24 x 5/8" Pan Head
