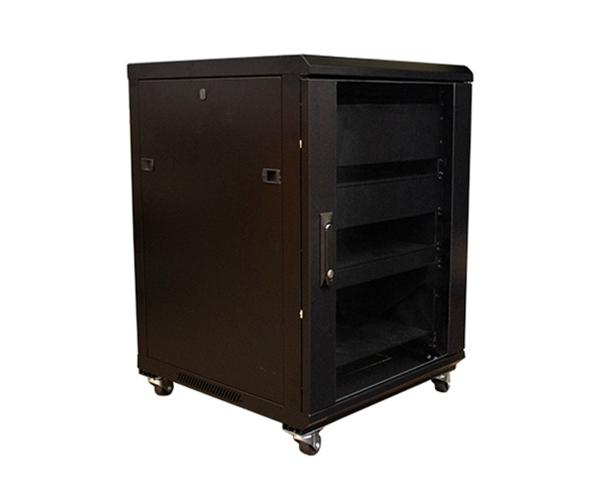

AV Cabinets, 15U/ 27U/ 36U
Primus Cable AV Cabinets are designed for flexibility and security, making them a great choice for a multitude of audio and video applications. Fully assembled and ready to perform out-of-the-box, they are equipped with pre-installed shelving, blank panels, and tapped 10-32 mounting rails.
Available in three sizes (15U, 27U and 36U), Primus Cable AV Cabinets are designed with a host of features, including casters and adjustable leveling feet that are provided for maximum mobility and sturdy placement.
- Cable entry on top, bottom and back
- Two  pair of heavy-duty, EIA-compliant 19" mounting rails, complete with 10-32 tapped holes and RU markings
- Removable, reversible, and lockable tempered-glass front door which opens a full 180°
- Cable entry slots with removable covers on top, back and bottom
- Top panel includes a provision for two  optional double fan units (maximum of four  total fans)
- Welded frame of heavy gauge cold-rolled steel
- Locking front door & rear access panel limit unwanted access to equipment
- Shelf straps and backstops secure equipment to shelves
- Available in three standard sizes that can handle most any audio /video equipment configurations
- Includes both casters & adjustable leveling feet for both fixed & mobile installations
- Front door, side & rear panels are all removable for convenient access to equipment
- Vented top & bottom panels provide free air cooling, and are compatible with an optional fan unit when additional cooling is needed
- Fully assembled with shelves & blanking panels pre-installed
- Easy to order - everything you need in one item number, no need for a complicated configuration tool
|Product Type||AV Cabinet
|Frame Material||Heavy Gauge Cold Rolled Steel|
|Finish||Black Powder Coat|
|Rack Unit Quantity||15U, 27U, or 36U|
|Dimensions (HxWxD)||(15U/ 27U/ 36U) x 23.6" x 23.6"
|Front Door||Removable, Reversible & Lockable Tempered Glass, Opens Full 180
|Side Panels||Solid, Full Height, Removable
|Top Panel||(1) Solid Knockout, (1) Vented Knockout, (1) Removable Cable Entry Slot [NOTE: Removing The Solid Knockout & The Vented
(6) Knock-Out Cable Entry Holes Located at Back:
Two Pairs of Mounting Rails, Adjustable
14 AWG Ground Wire Connects Doors & Side Panels
|Static Loading Capacity||
|Compliance & Standards||
ANSI/EIA RS-310D, IEC60297-2,
What's in the box?
What's in the box?
- Qty 1 - Package of Fixed Wall Mount Cabinet
- Qty 48 - 10-32 Mounting Screws & Washers
- Qty 2 - Grounding Kits
- Qty 1 - Paper Mounting Template
- Qty 2 - Keys
