Descriptions

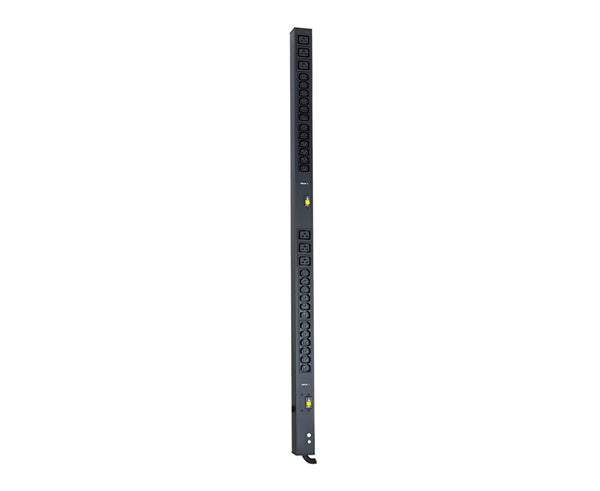

Basic Rack Mount PDU - 30A, 200-240V, 4.9kW w/IEC C13 & C19 Outlets (Vertical)
Fiber Savvy Basic Rack Mount PDUs distribute reliable power to IT equipment in a wide variety of applications where intelligence and/or remote monitoring are not required.
It features (24) IEC C13 and (6) IEC C19 outlets protected by a pair of hydraulic magnetic circuit breakers and a durable anodized aluminum chassis. A 10 ft power cord with a NEMA L6-30P twistlock plug connects to an external power supply, while the versatile mounting design allows outlets to face any of three directions.
Features
Features
- 24 C13 and 6 C19 outlets

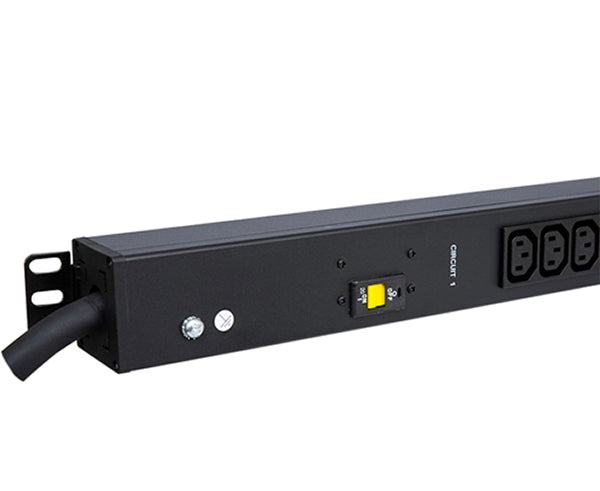

- Dual 20A 2 pole hydraulic magnetic circuit breakers
- Switchless design prevents accidental shutdowns

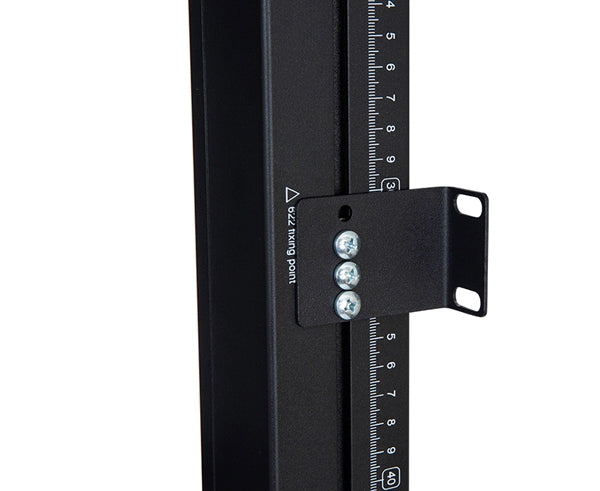

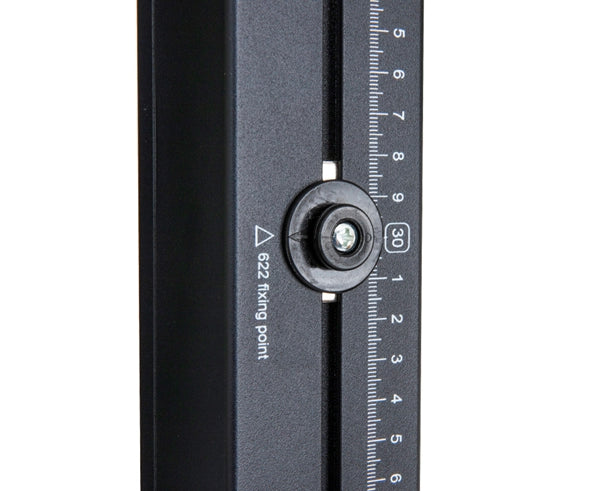

- Includes button mounts for vertical mounting to Primus Cable network and server cabinets, toolless mounting brackets that allow outlets to face the front, rear, or side, and additional brackets for mounting to rack rails
- Conforms to UL 60950-1 and is RoHS compliant
Specifications
Specifications
| OVERVIEW |
||
|---|---|---|
| Item Number |
NPNB-VPB-L633039V |
|
| PDU Type |
Basic |
|
| Form Factor |
Vertical (zero U) |
|
| UPC Code |
846788117352 | |
| OUTPUT |
||
| Rated Output Voltage | 208V Single Phase | |
| Output Recepticles | (24) IEC C13 + (6) IEC C19 | |
| Overload Protection | (2) 20A Magnetic Hydraulic Circuit Breakers | |
| INPUT |
||
|
Rated Input Voltage |
200-240V Single Phase | |
|
Max. Input Current |
30A |
|
|
Frequency |
50/60 Hz |
|
|
Power Capacity |
4.9 kW |
|
|

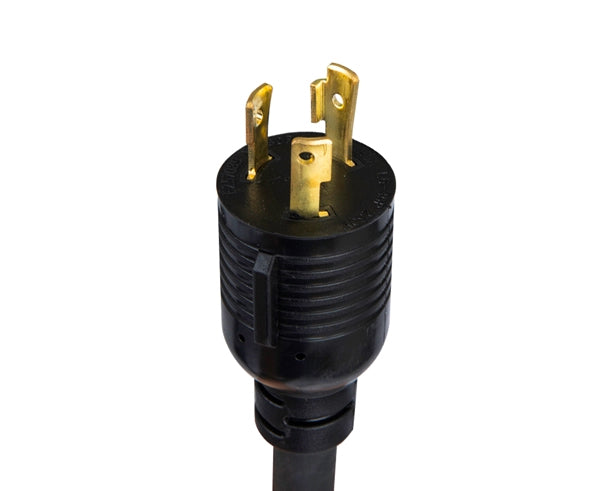

Plug Type |
NEMA L6-30P Twist-lock |
|
|
Cord Type |
10/3 AWG |
|
|
Cord Length |
10 ft (3.05 meters) |
|
| PHYSICAL |
||
|
Unit Width |
48.5 inches (1232mm) |
|
|
Unit Height |
2.2 inches (55mm) |
|
|
Unit Depth |
2.2 inches (55mm) |
|
|
Unit Weight |
9.3 lbs (4.2 kgs) | |
|
Shipping Length |
60.0 inches (1,524mm) |
|
|
Shipping Width |
6.3 inches (160.0mm) |
|
|
Shipping Depth |
4.5 inches (114.3mm) |
|
|
Shipping Weight |
11.8 lbs (5.4 kgs) |
|
|
Chassis Material |
Annodized Aluminum (black) |
|
|
Mounting Options |
1) Adjustable button mounts, 2) Adjustable right-angle mounting brackets 3) Toolless 4-way mounting brackets |
|
| ENVIRONMENTAL | ||
|
Operating Temperature |
30° to 140° F (0° to 60° C) |
|
|
Operating Relative Humidity |
0 - 95% |
|
|
Operating Elevation |
0 - 13,123 ft (4,000 meters) |
|
|
SPECIAL FEATURES |
||
|
Breaker Reset |
(2) switches on back |
|
|
COMPLIANCE |
||
|
Certifications |
• Tested to conform to UL 60950-1; IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013: CB Scheme • RoHS |
|
What's in the box?
What's in the box?
- Qty 1 - Basic Rack Mount PDU - 30A, 200-240V, 4.9kW w/IEC C13 & C19 Outlets (Vertical)
