Description
CABLE SUPPORT SYSTEMS

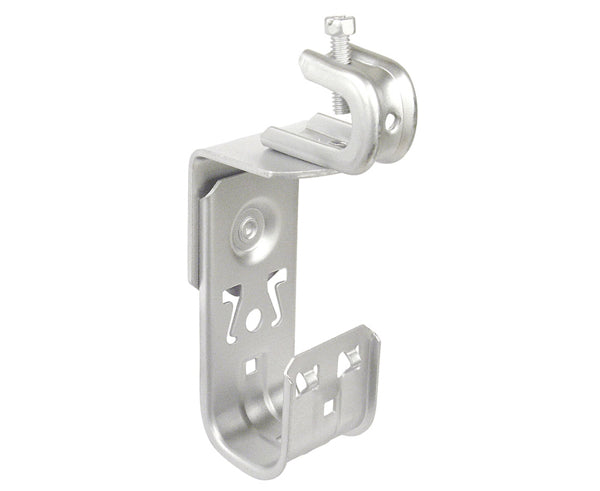

J-HOOKS WITH SPRING STEEL BEAM CLAMP
J-HOOKS with spring steel screw on beam clamp feature allows J-Hook to easily attach to beams. The J-Hooks provide support for data cables: fiber optic, innerduct and low voltage.
Applications
J-Hooks with screw-on beam clamp feature allows the J-Hook to easily attach to beam flanges. J-Hooks provide support for data cables: fiber optic, inner-duct and low voltage.
Features
Features
- Available in multiple sizes
- Alternative cable management solution to complex cable trays
- J-Hooks are designed with round edges to provide proper bend radius
- Beam clamp screw-on attachment allows for easy repositioning of the J-Hook
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MATERIAL / FINISH | CLAMP: SPRING STEEL / GEOSEAL™ J-HOOK: STEEL / GALVANIZED |
| CERTIFICATIONS | UL STANDARD: UL 2239 |
| UPC # | 751338043923 |
| DIMENSIONS | |||||
|---|---|---|---|---|---|
| HOOK DIAMETER | A | B | C | D | E |
| 3/4" | 1.65" | .748" | 1.42" | .866" | 3.23" |
| 1-5/16" | 1.79" | 1.24" | 1.42" | 1.64" | 3.62" |
| 2" | 2.50" | 1.99" | 1.42" | 1.64" | 4.37" |
Additional Information
Wire & Cable Management Accessories
Having an effective cable management system in place keeps your networking cable organized, which helps make system maintenance easier. We carry a wide assortment of cable management solutions. Our wire management solutions help organize and protect your network cabling by keeping it off the floor.
To learn more about our Wire & Cable Management please visit our overview page. Our J-Hooks can be combined with a wide array of products such as:
- Flat Cable Lacing Panel
- Flanged Lacing Bar
- 2 Post Free Standing Relay Racks
- 4 Post Server Rack, Open Frame Rack Systems
What’s In The Box
What’s In The Box

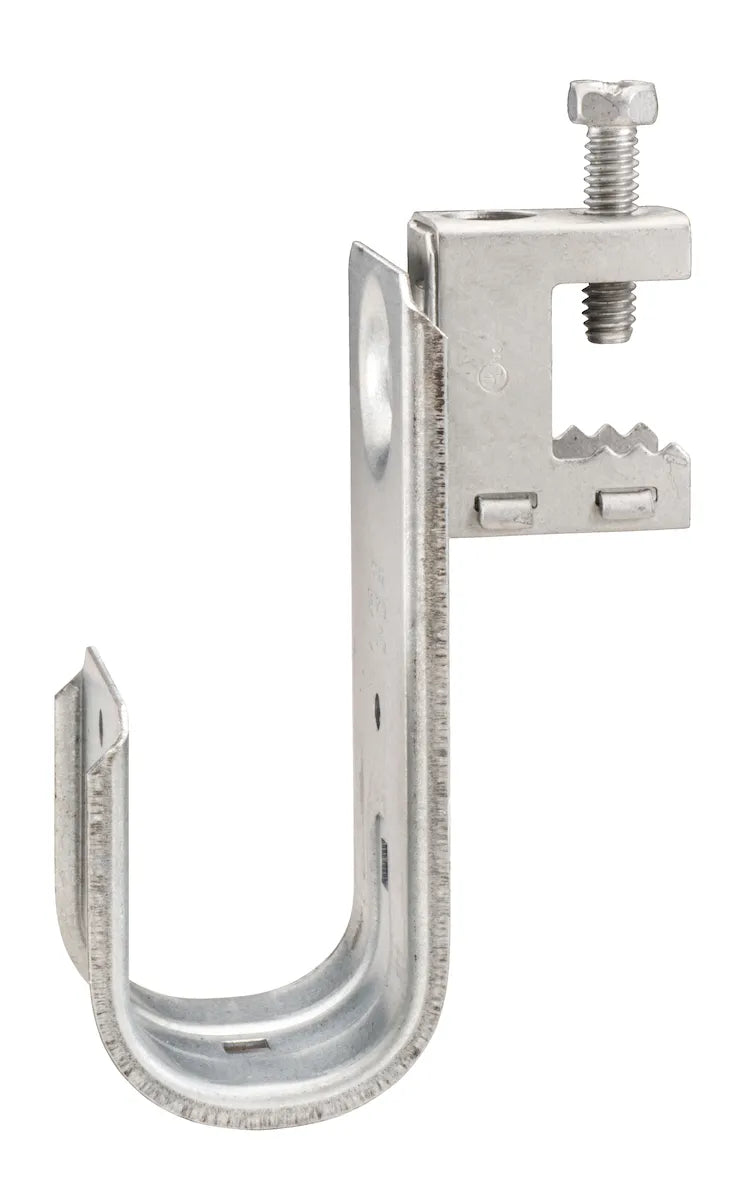

- Qty 1 - 3/4” J-HOOK ASSEMBLED TO BEAM CLAMP
