Description

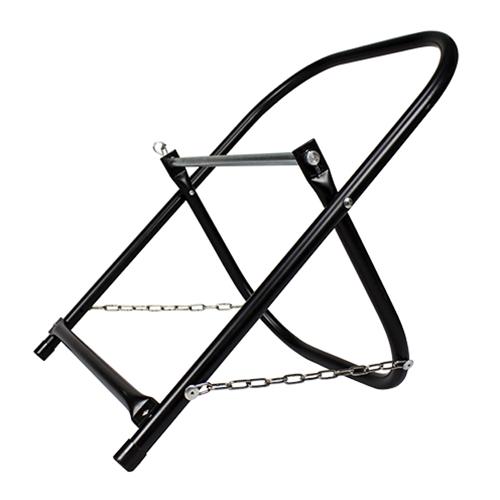

Folding Cable Caddy
Our Cable Caddy takes the aggravation out of installing bulk cable reels. It allows you to pull cable easily and safely from a sturdy and lightweight frame. This cable caddy holds one reel of cable up to 18 inches wide, 20 inches in diameter, and 100 lbs. When installation is complete, fold flat for convenient storage and transportation.
Features
Features
- Made of sturdy heavy-duty steel tubing
- Folds for easy storage
- Tough durable finish
- Maximum reel width: 18”
- Maximum reel size: 20" diameter
- Maximum reel weight: 100 lbs.
- Height from floor to rod: 13”
- Weight: 7.5 lbs.
Specifications
Material Specifications
| No. | Qty. | Description | Material | Notes |
| 1 | 1 | Front Frame | Steel Black | Ф 22 x 1.5 mm |
| 2 | 1 | Rear Frame | Steel Black | Ф 22 x 1.5 mm |
| 3 | 1 | Front Brace | Steel Black | Ф 22 x 1.5 mm |
| 4 | 1 | Spool Bar | Zinc Plated Steel | Ф 16 x 470 mm |
| 5 | 2 | Chain | Stainless Steel | Ф 3 x 320 mm |
| 6 | 2 | Foot Cover | Rubber | Ф 22 x 25 mm |
| 7 | 1 | Retaining Pin | Steel | Ф 6 x 30 mm, Spring Pin |
| 8 | 1 | Dowel Pin | Steel | Ф 3 x 60 mm, Cotter Pin |
Technical Illustration
What's In The Box
What's In The Box
- Qty 1 - Folding Cable Caddy
