Description
Cable Ties with Stainless Steel Barb
Primus Cables’ Natural and UV resistant black, nylon cable ties have stainless steel barb; barb is at 45° pitch with 60° cutting angle, setting strap to desired position to suit all diameters in range.
Features
- Natural and UV resistant black, nylon cable ties have stainless steel barb; barb is at 45° pitch with 60° cutting angle, setting strap to desired position to suit all diameters in range.
- Flexible and resistant at low temperatures and humidity-free environments.
- Cold and fastening resistances are higher than normal cable tie tolerances.
Specifications
- cULus Listed for Positioning Devices UL62275.
- Temperature Rating: Min., -40°F to Max., 185°F (-40°C to 85°C).
- Ideal Storage: 23˚C, Humidity 50%, Avoid storing cable ties next to warm objects.
- Type 21 AH-2: “Suitable for use in air-handling spaces (Plenums)”.
| Part# | Color | Max. Wire/Cable Size (L) | Max Bundle Diameter | Tensile Strength | Length (in.) | Width (in.) |

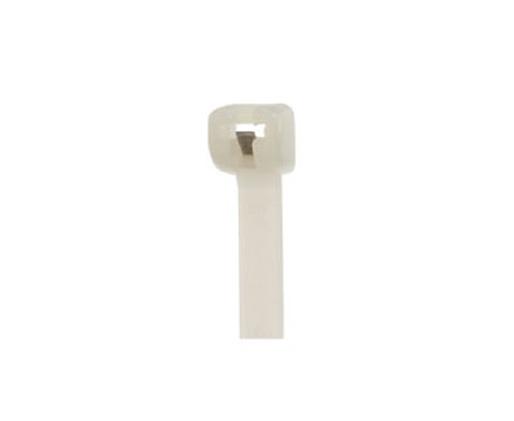

| NPNB-418SB | Natural | 4" | 0.944 | 18 Lbs. | 4.000 | 0.100 |
| NPNB-540SB | Natural | 5" | 1.417 | 40 Lbs. | 5.500 | 0.137 |
| NPNB-750SB | Natural | 7" | 2.007 | 50 Lbs. | 7.322 | 0.177 |
| NPNB-818SB | Natural | 8" | 2.165 | 18 Lbs. | 7.874 | 0.100 |
| NPNB-840SB | Natural | 8" | 2.165 | 40 Lbs. | 7.874 | 0.137 |
| NPNB-1140SB | Natural | 11" | 3.149 | 40 Lbs. | 11.023 | 0.137 |
| NPNB-1150SB | Natural | 11" | 3.149 | 50 Lbs. | 11.023 | 0.177 |
| NPNB-1450SB | Natural | 14" | 3.976 | 50 Lbs. | 14.173 | 0.177 |
| NPNB-14120SB | Natural | 14" | 3.976 | 120 Lbs. | 14.173 | 0.295 |

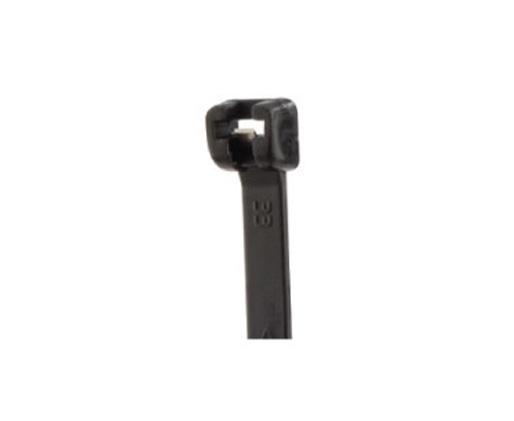

| NPNB-4180SB | UV Black | 4" | 0.944 | 18 Lbs. | 4.000 | 0.100 |
| NPNB-5400SB | UV Black | 5" | 1.417 | 40 Lbs. | 5.500 | 0.137 |
| NPNB-7500SB | UV Black | 7" | 2.007 | 50 Lbs. | 7.322 | 0.177 |
| NPNB-8180SB | UV Black | 8" | 2.165 | 18 Lbs. | 7.874 | 0.100 |
| NPNB-8400SB | UV Black | 8" | 2.165 | 40 Lbs. | 7.874 | 0.137 |
| NPNB-11400SB | UV Black | 11" | 3.149 | 40 Lbs. | 11.023 | 0.137 |
| NPNB-11500SB | UV Black | 11" | 3.149 | 50 Lbs. | 11.023 | 0.177 |
| NPNB-14500SB | UV Black | 14" | 3.976 | 50 Lbs. | 14.173 | 0.177 |
| NPNB-141200SB | UV Black | 14" | 3.976 | 120 Lbs. | 14.173 | 0.295 |
What's In The Box
- Qty 1-100 Pack - Cable Ties with Stainless Steel Barb
