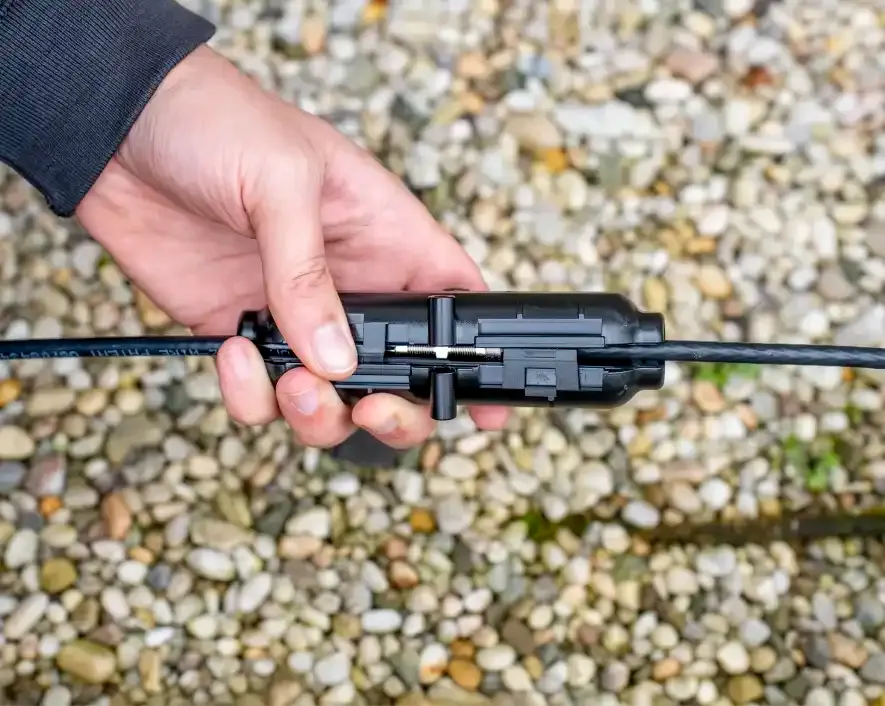

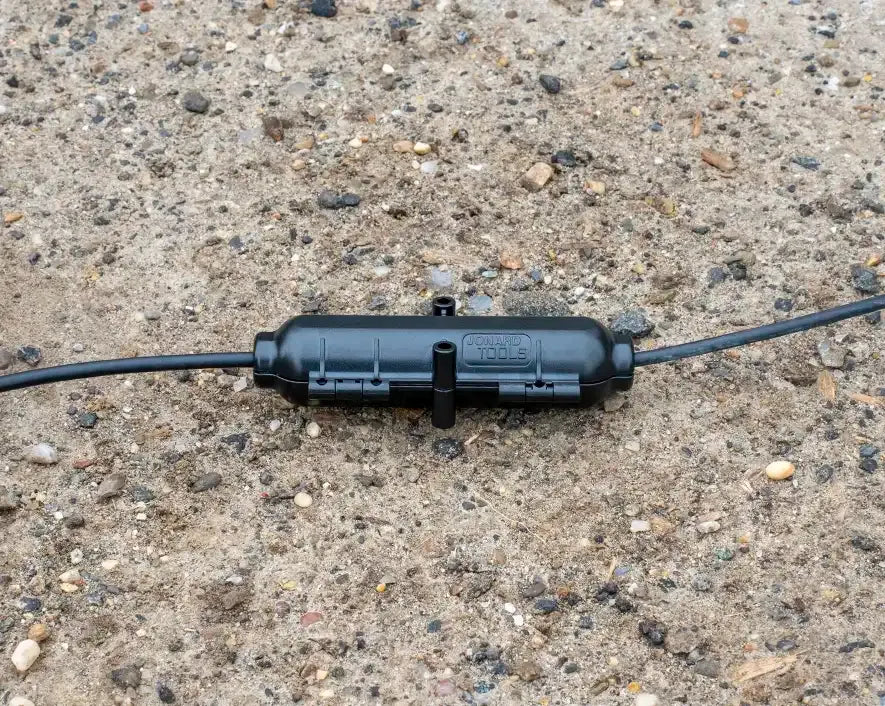

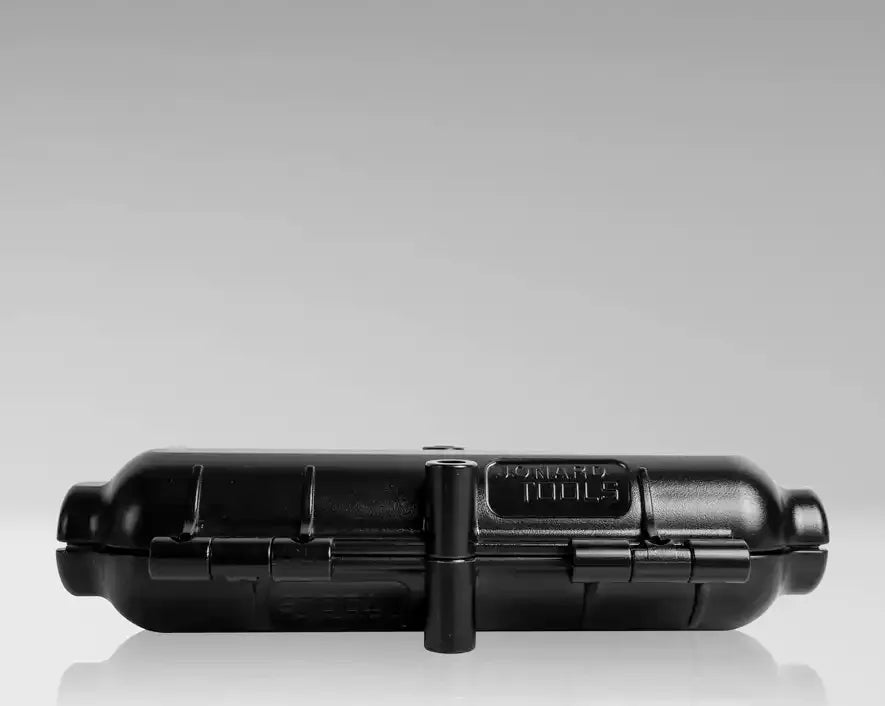

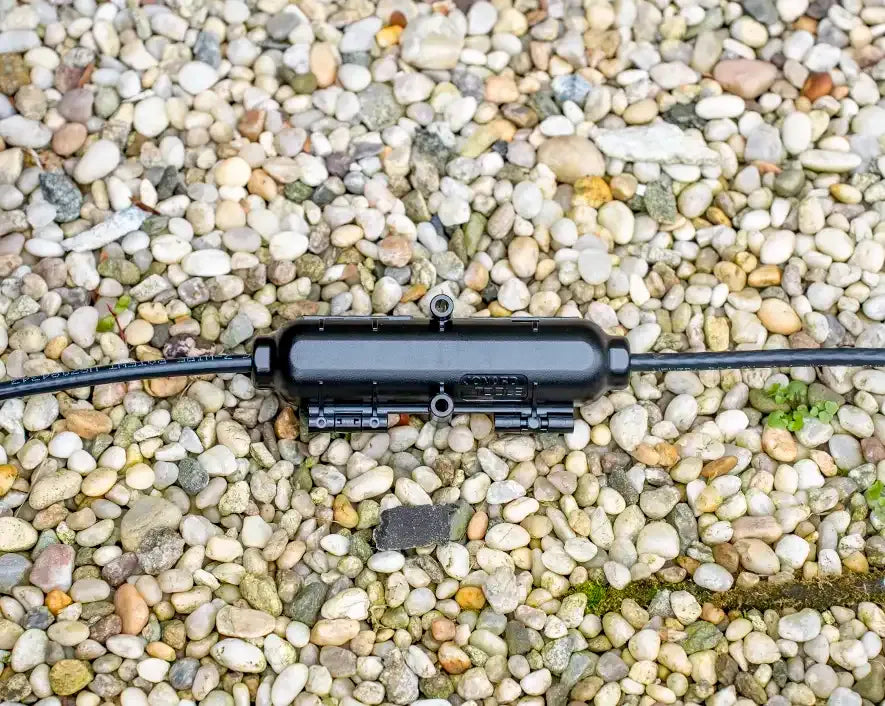

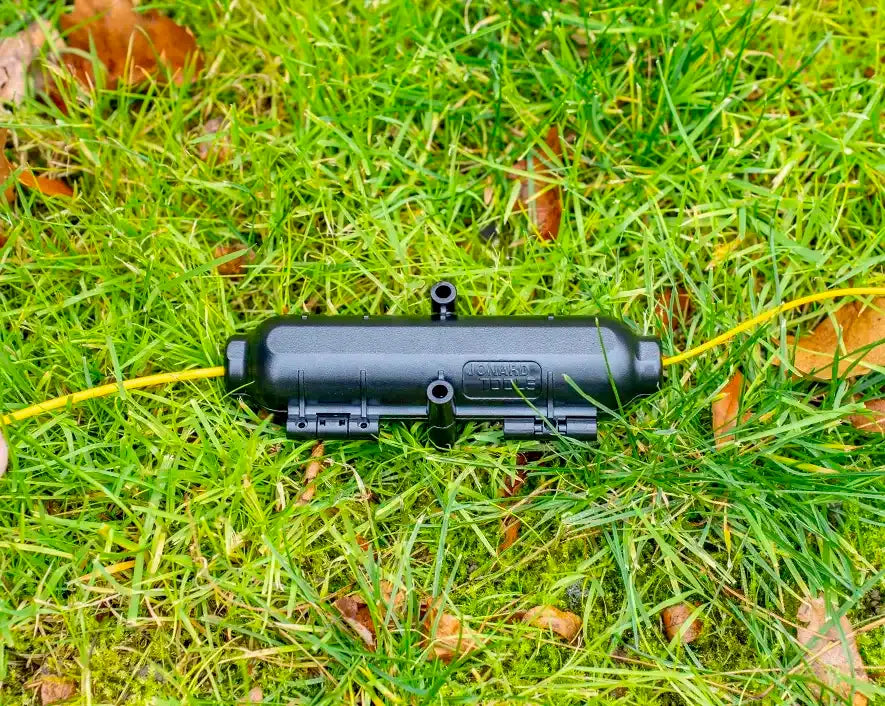

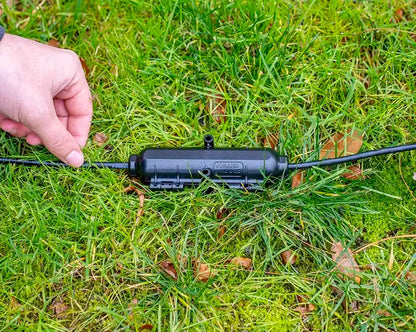

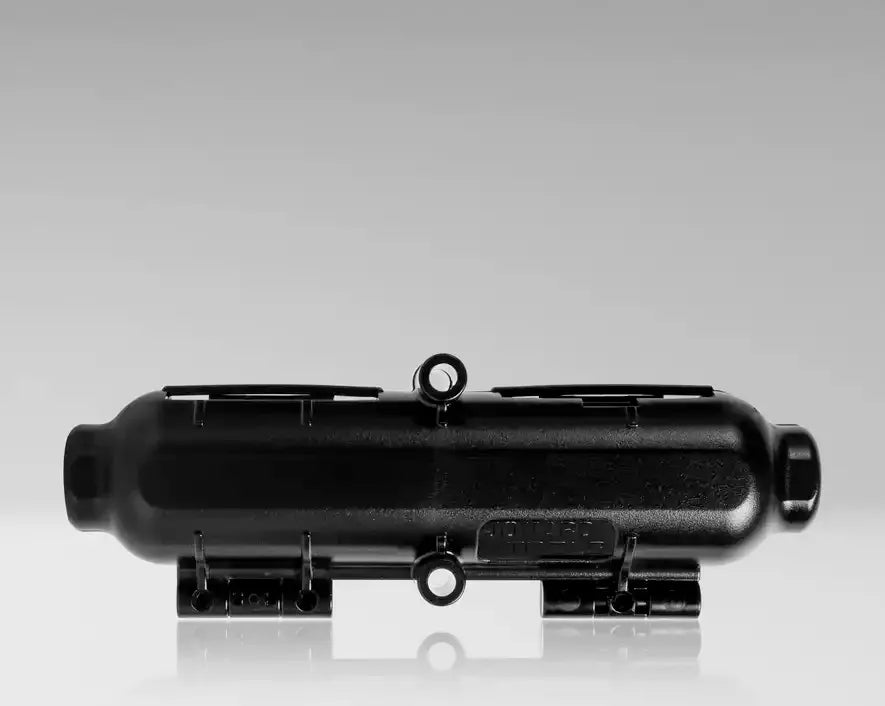

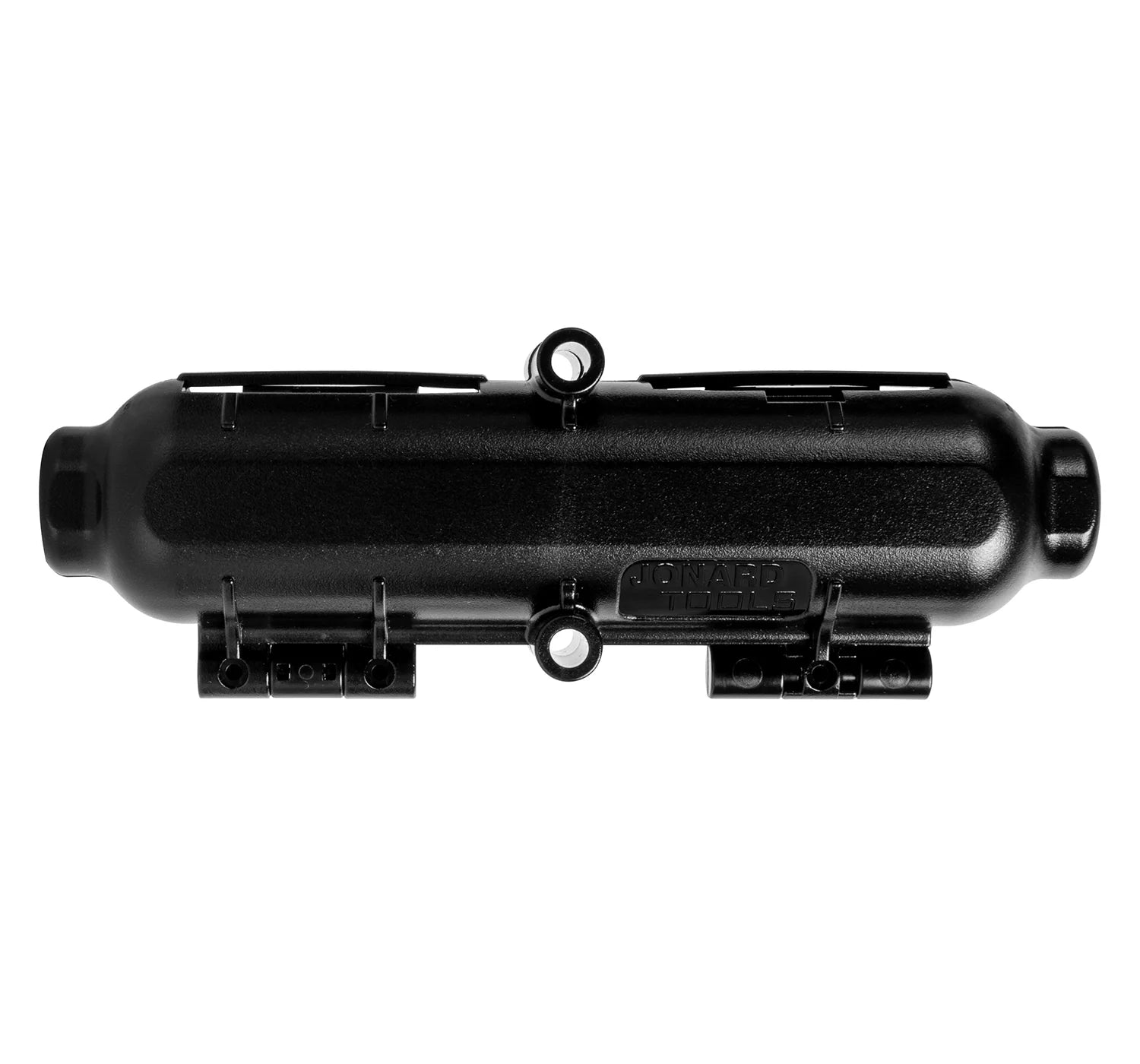

CableShield Pro, Weatherproof Coupled Cable Enclosure
Designed to protect both copper and fiber cables, the CableShield Pro provides versatile connector protection from harsh outdoor conditions.
Features
Features
This weatherproof coupled cable enclosure also features the following:

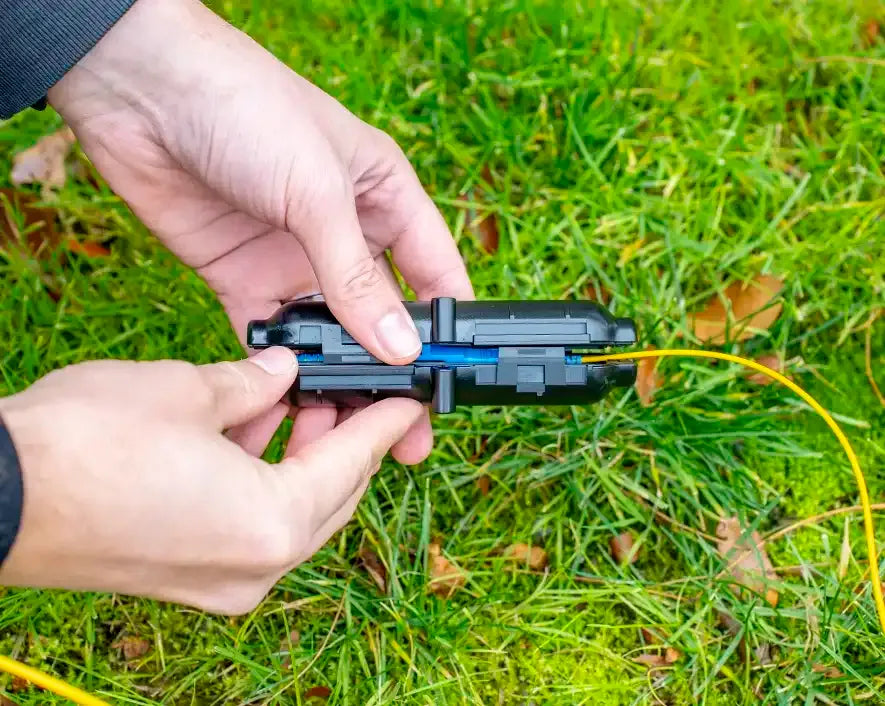

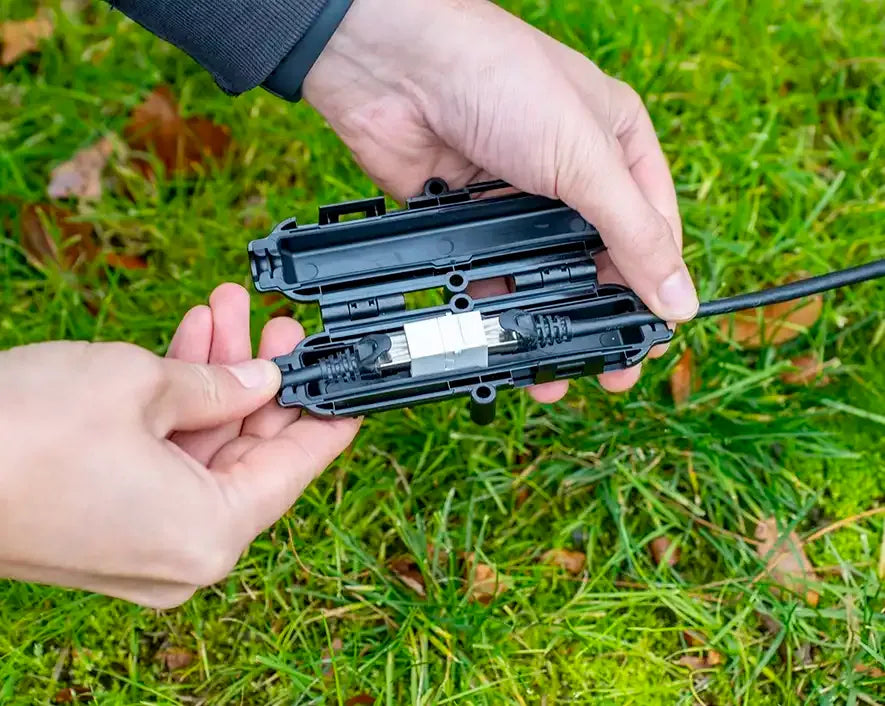

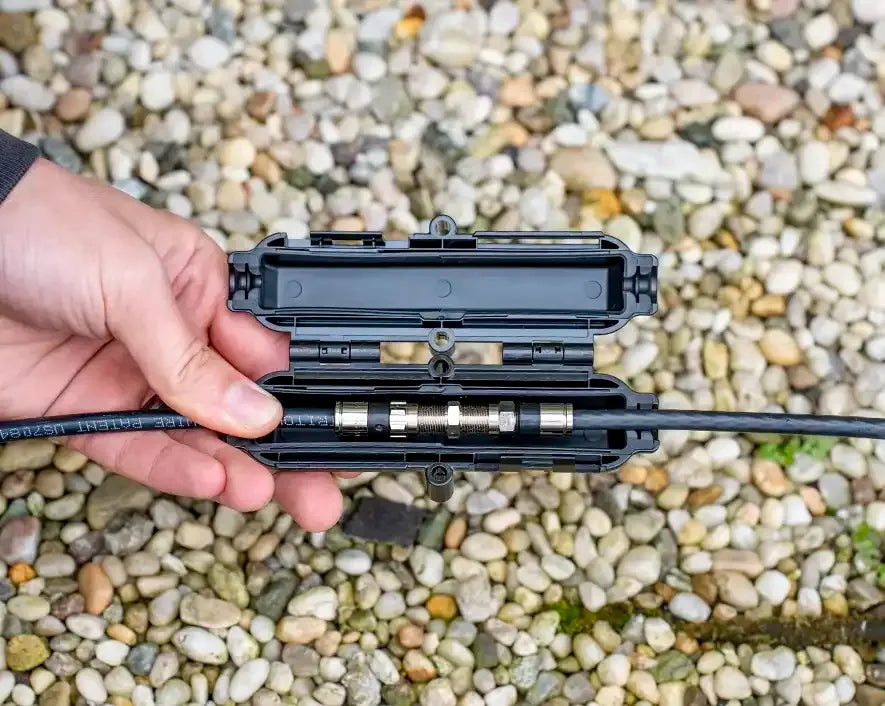

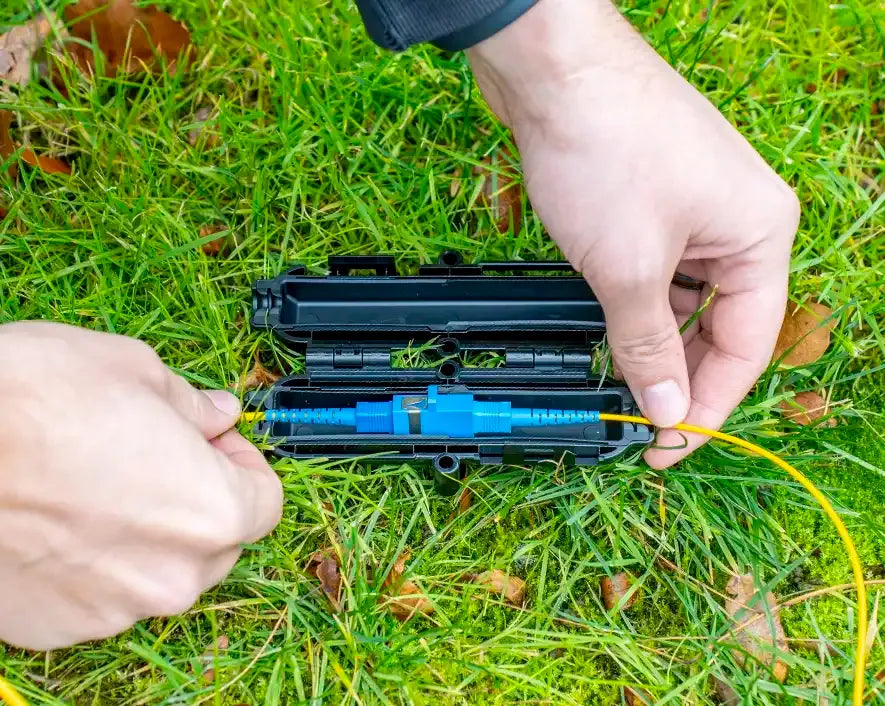

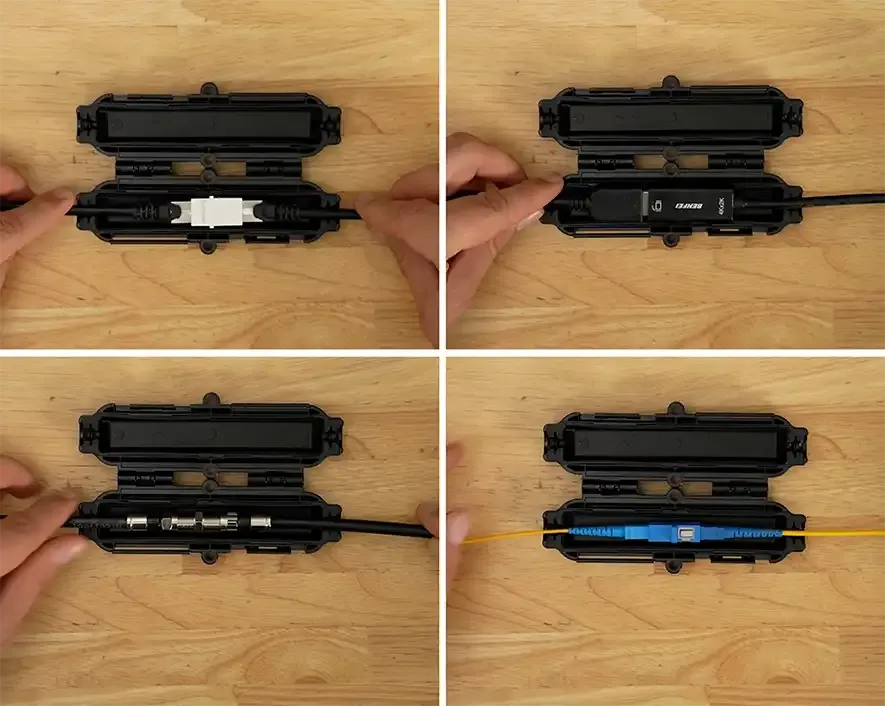

- Patented adaptive design seamlessly accommodates a wide range of copper and fiber connectors, including RJ45 couplers, keystone jacks, HDMI couplers, coaxial connectors, and SC/LC fiber connectors without any tools

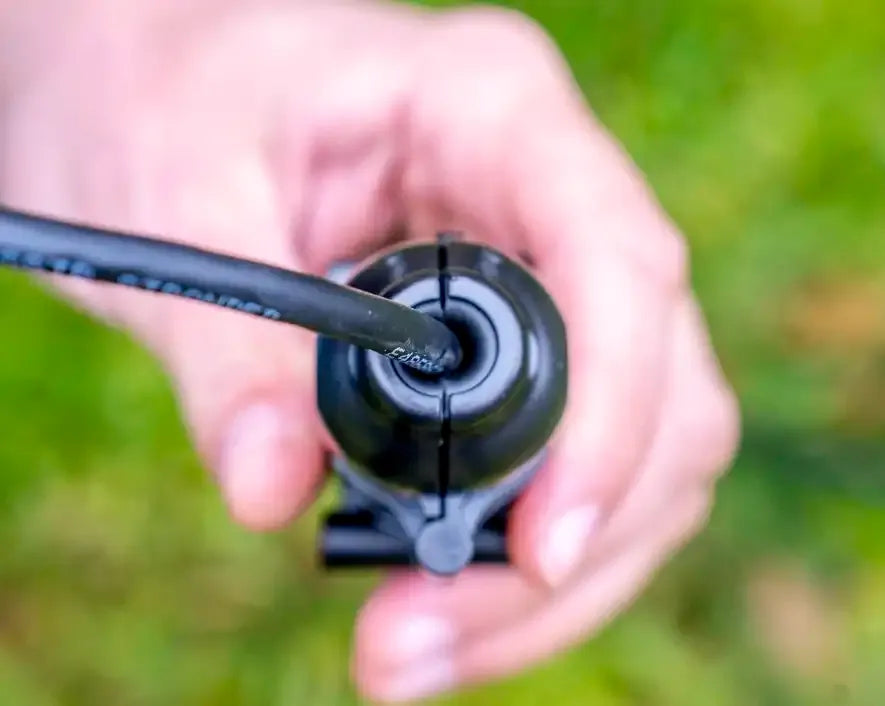

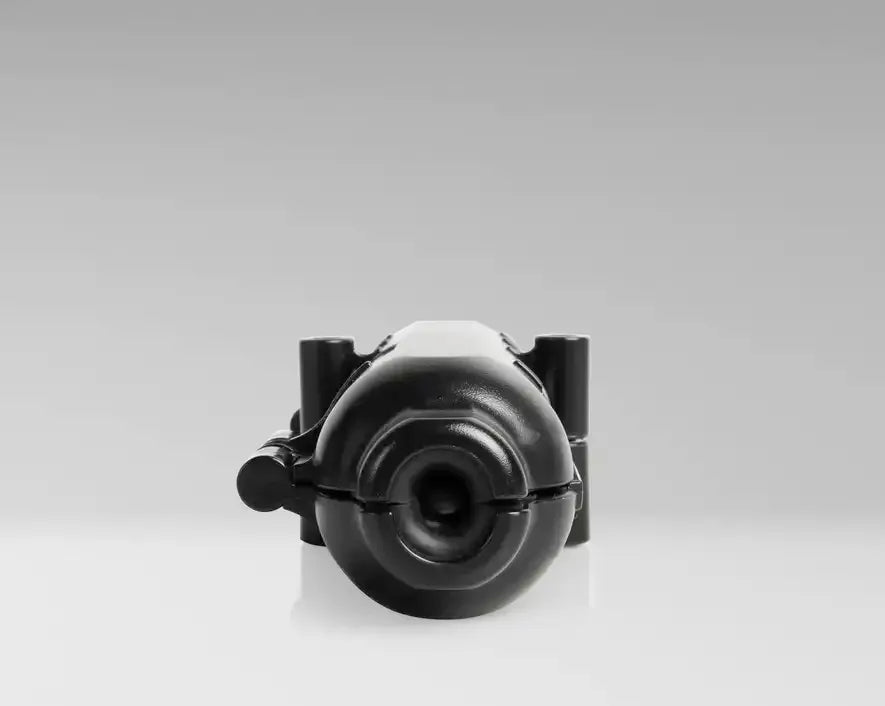

- Seals around 5–8 mm cables (or 2–5 mm with optional sleeve) for a secure, weatherproof fit.

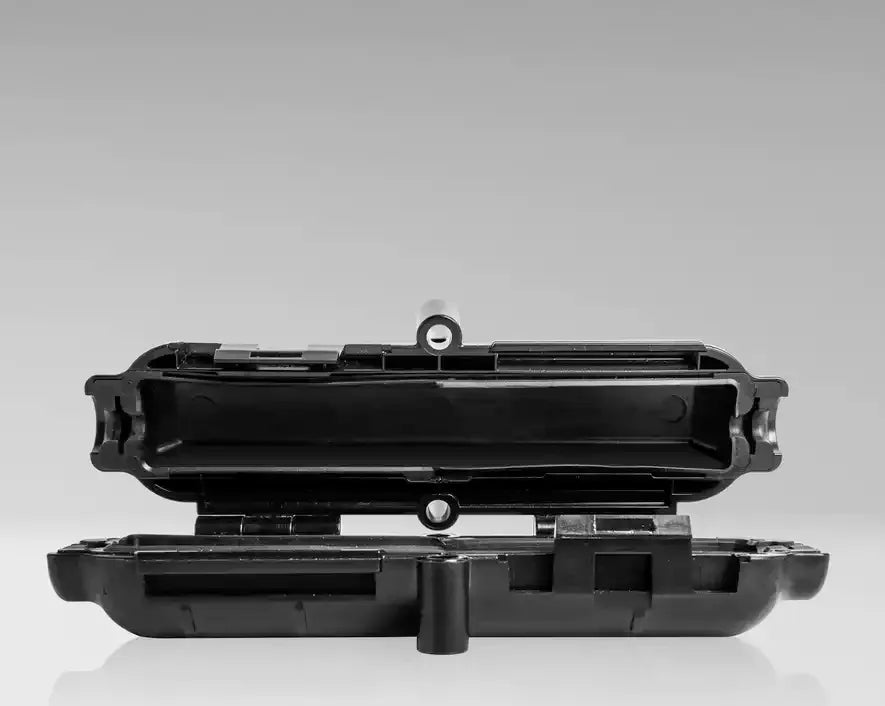

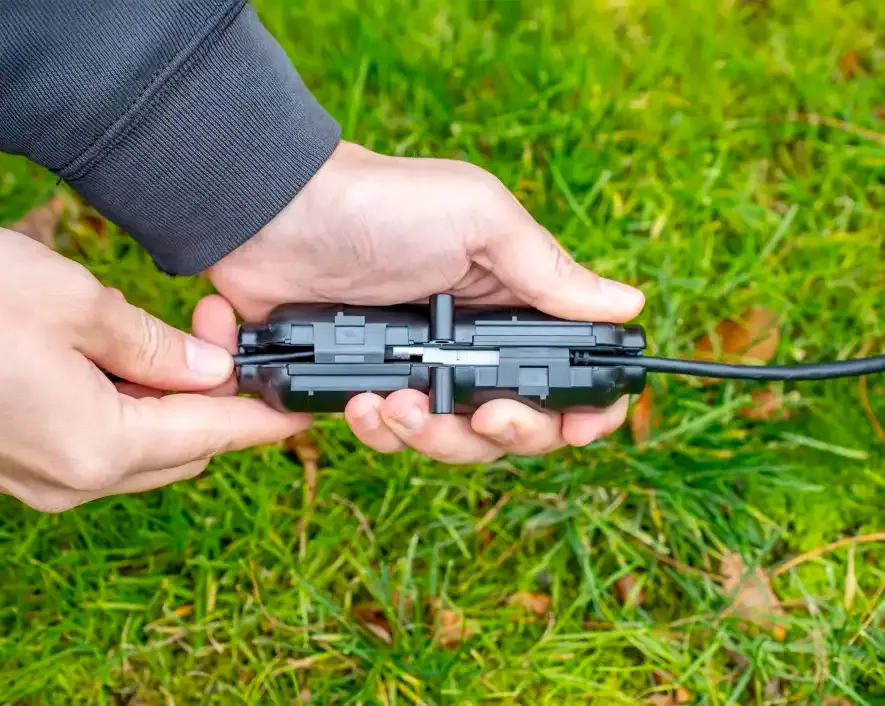

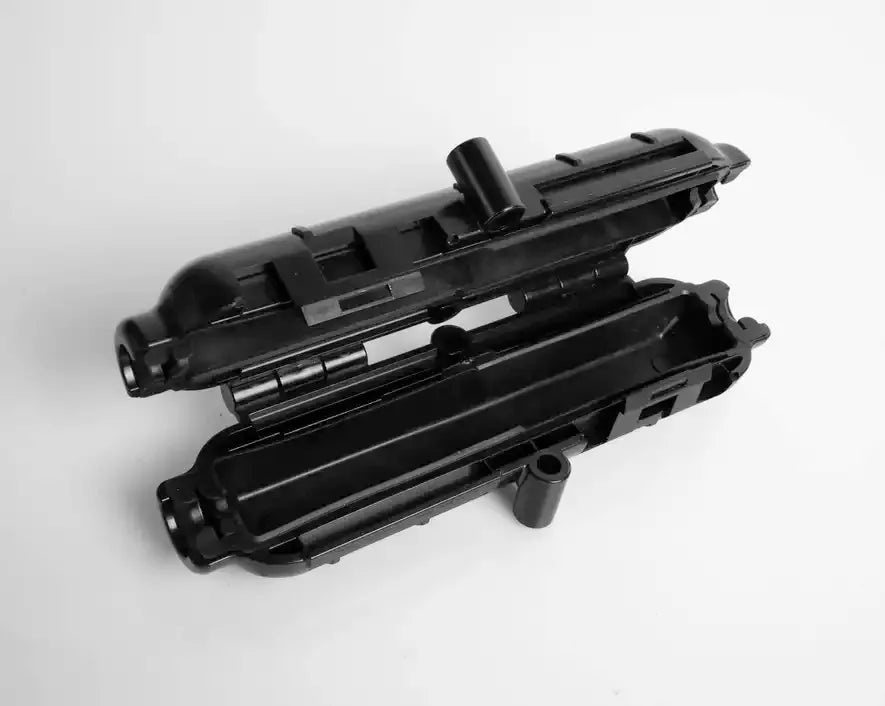

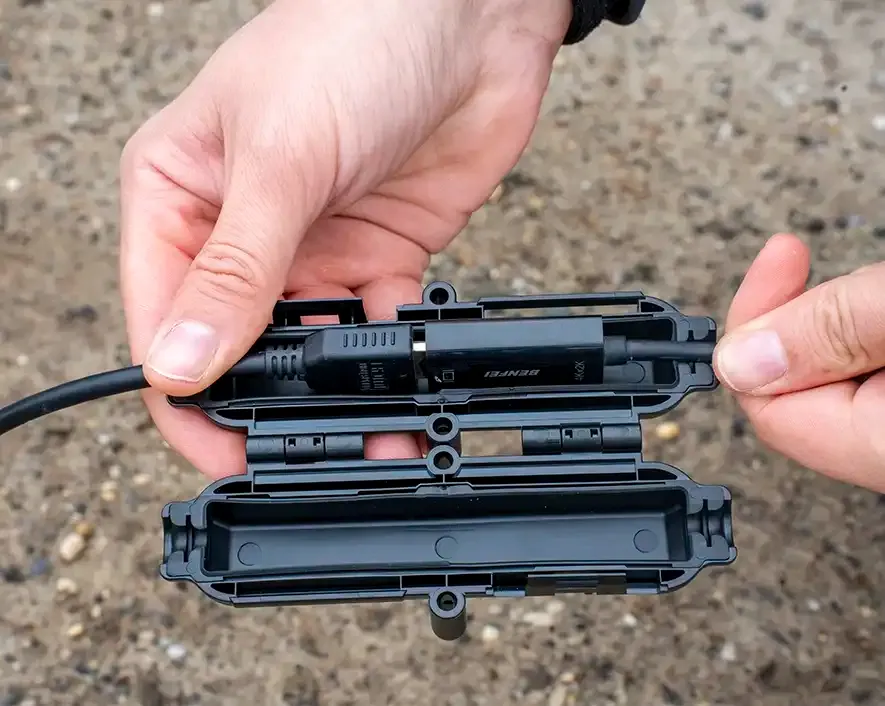

- Dual locking closure provides a secure, weather-resistant seal to keep internal components safe while still being able to access coupled cables

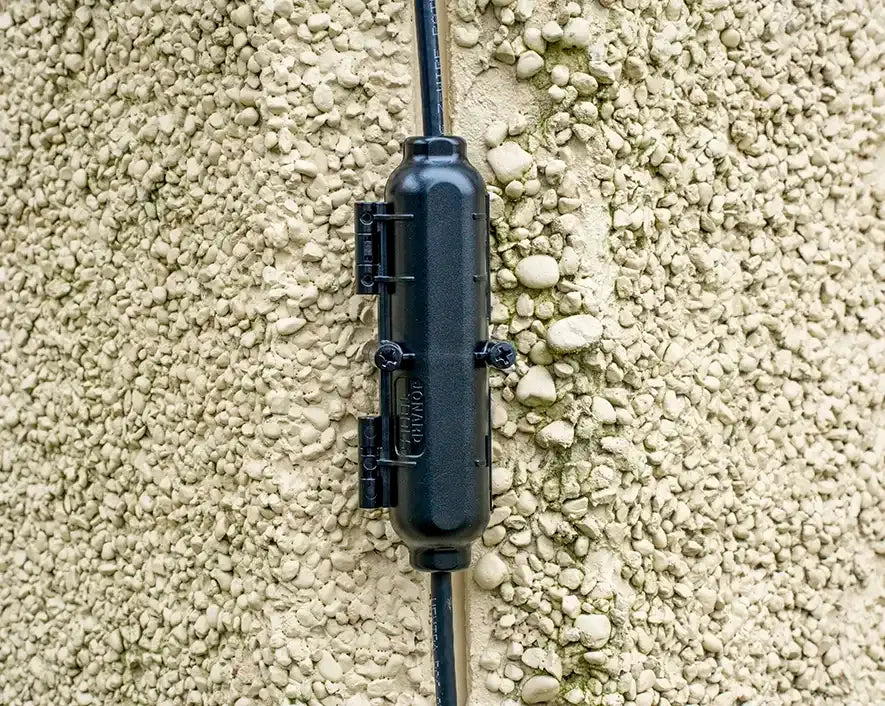

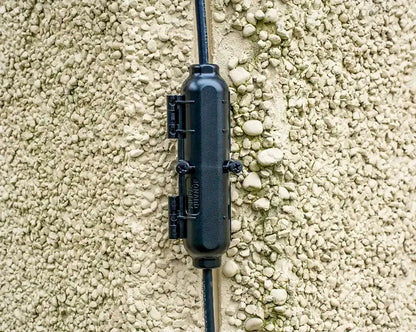

- Versatile mounting points for easy installation using zip ties or M5 screws
- Made from high-impact ABS plastic for long-lasting durability

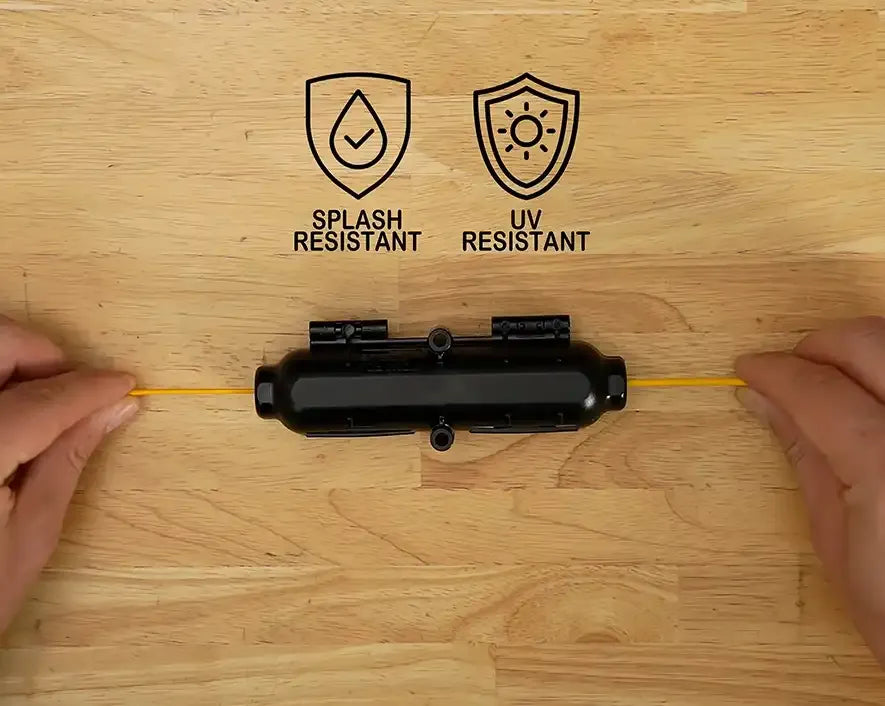

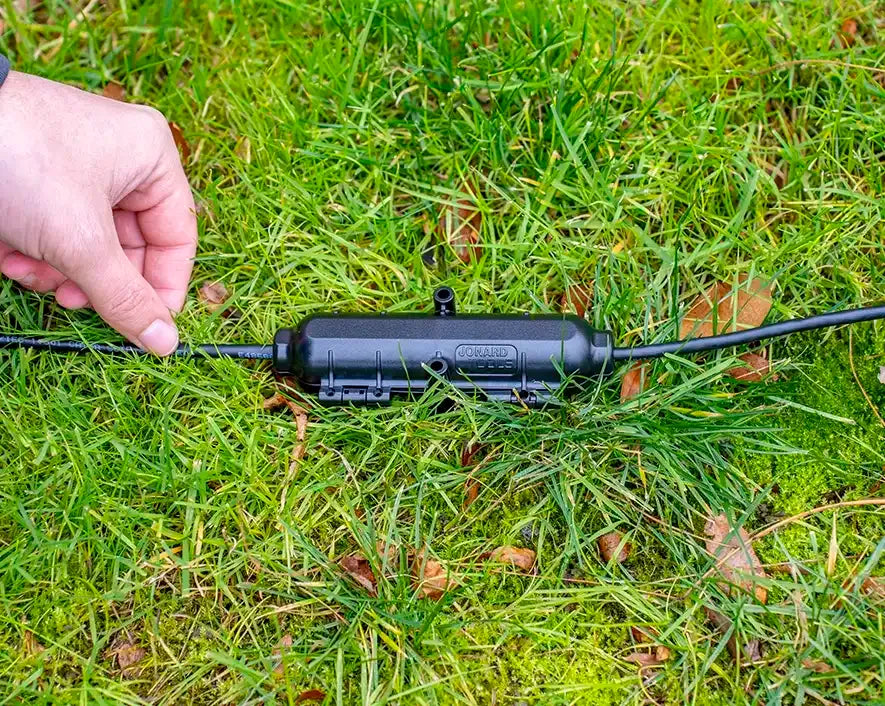

- All-Weather Protection: IP54 rated; dust proof, splash resistant, UV resistant, and flame retardant (UL94-V0, UL-746C)
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTOR COMPATABILITY | RJ45 Coupler, RJ45 Keystone Jack, HDMI Coupler, Coax Connector, Fiber Connectors (SC,LC) |
| CABLE DIAMETER | 5-8 mm With Small OD Cable Sleeves: 2-5 mm |
| OUTER HOUSING MATERIAL | High Impact Thermal Plastic (ABS) |
| INNER SEAL | TPE |
| DIMENSIONS | 5.5 in x 1.5 in x 1.27 in (13.97 cm x 3.81 cm x 3.23 cm) |
| WEIGHT | 0.15 lb (68.1 g) |
| UPC # | 810132438653 |
Additional Information
Additional Information
| Product Videos | |
|---|---|
JONARD TOOLS CABLESHIELD PRO WEATHERPROOF ENCLOSURE (WCE-744) PRODUCT VIDEO |
What's in the Box
What’s in the Box
- Qty 1 - CableShield Pro, Weatherproof Coupled Cable Enclosure
