Description

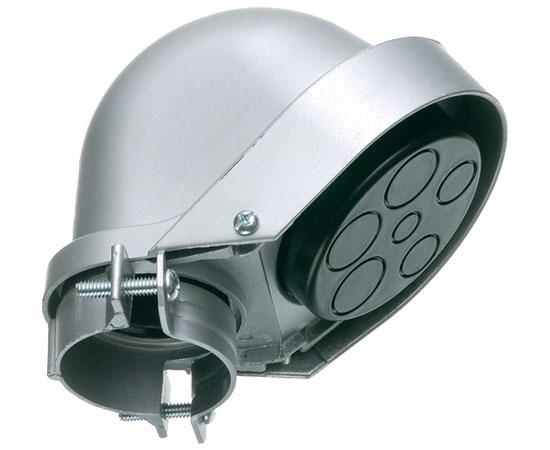

Clamp-on Style Entrance Caps
These Mast Reducer Entrance Caps simply clamp on to Multiple Rigid, IMC and/or EMT sizes ranging from a 1/2 inch to 4 inches. This item uses an easy to use a clamp to secure the entrance cap to the various types of conduit. It is made of a durable Gray metal housing with a steel clamp. Also included is an adapter that can fit multiple sizes of cable.
Features
Features
- Works on Rigid, IMC and/or EMT conduits
- Clamp-on Type
- Durable metal housing with steel clamp
- includes cable adapter
Specifications
| Technical Specifications | |||||
|---|---|---|---|---|---|

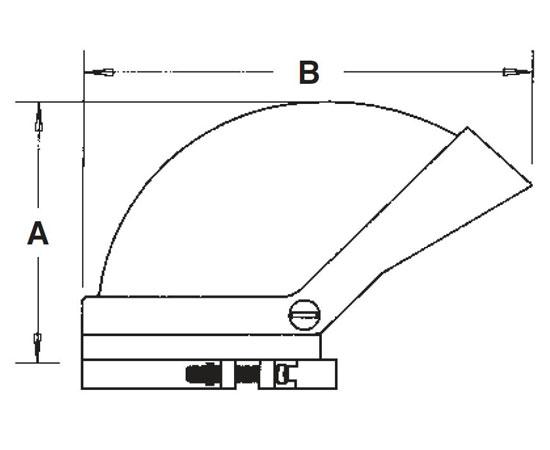

| Part Number | Trade Size | Dim A | Dim B | Hole Sizes | |
| NPNB-140 | 1/2" | 8.5 | 5.25 | 4.25 | |
| NPNB-141 | 3/4" | 9 | 5.5 | 4.25 |
|
| NPNB-142 | 1" | 10.75 | 3.5 | 8.75 | |
| NPNB-143 | 1-1/4" | 13.75 | 3.5 | 4.75 | |
| NPNB-144 | 1-1/2" | 9 | 3.75 | 6 | |
| NPNB-145 | 2" | 22 | 5 | 14 | |
| NPNB-146 | 2-1/2" | 10.875 | 7.875 | 7.375 | |
| NPNB-147 | 3" | 10.875 | 7.875 | 7.375 | |
| NPNB-148 | 3-1/2" | 11 | 7.875 | 10.875 | |
| NPNB-149 | 4" | 11 | 7.875 | 10.875 |
|
What’s In The Box
What’s In The Box
140, 141, 142, 145
- Qty 10 - Clamp-on Style Entrance Caps for Rigid IMC and/or EMT
143
- Qty 5 - Clamp-on Style Entrance Caps for Rigid IMC and/or EMT
144
- Qty 3 - Clamp-on Style Entrance Caps for Rigid IMC and/or EMT
146, 147, 148, 149
- Qty 1 - Clamp-on Style Entrance Caps for Rigid IMC and/or EMT
