Description

Combination Connectors

Primus Cables’ multiple combination connectors are made from aluminum and are tin-plated for low contact resistance. Suitable for use with both copper and aluminum conductors.

Features

  • Multiple combination connectors are made from aluminum and are tin-plated for low contact resistance.
  • Suitable for use with both copper and aluminum conductors.
  • Each connector contains a combination of 1/0-14 AWG and 6-14 AWG wire holes.
  • Economical and compact innovative design and hole spacing.
  • Dual rated for use with aluminum and copper cables.

                Specifications

                         Part#

                        Number of Curcuits
                        1/0-14 AWG

                        		 Number of Curcuits
                        6-14 AWG                        		 Length (in.)

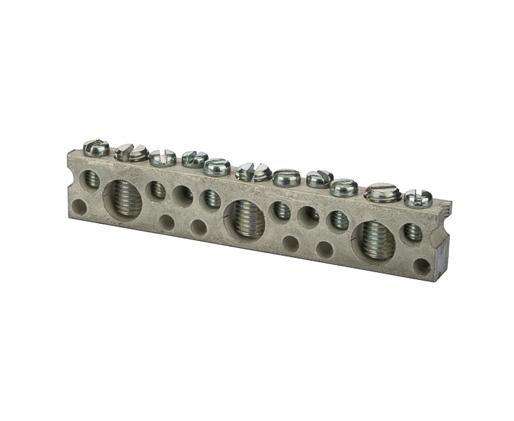

                        NPNB-CB11 3 8 3.500

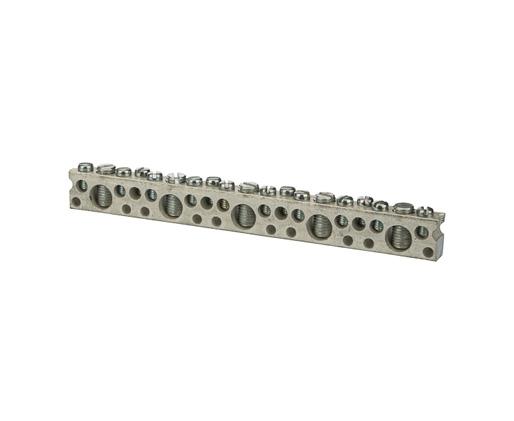

                        NPNB-CB19 5 14 5.810

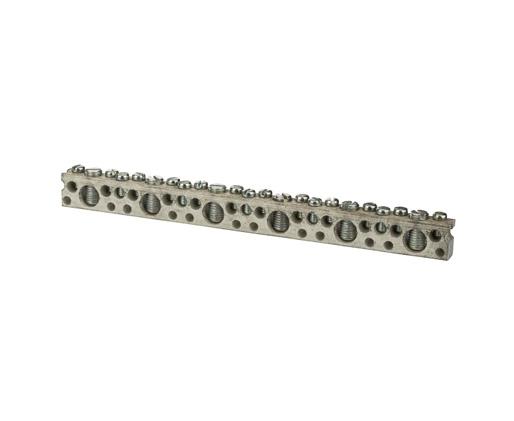

                        NPNB-CB23 6 17 7.000
                        NPNB-CB120 30 90 36.000

                        What's in the box?

                        What's in the box?

                        • (1) Combination Connector
