Multimode Fiber Test Kit
The Silicon ZOOM II / Dual 850nm Test Kit is ideal for LAN managers and installers who need to do simple attenuation tests on their multimode networks.
The Silicon ZOOM II (Zeroed Output Optical Meter) is an economical fiber optic power meter. It provides accurate testing of multimode fiber cables. The 4-digit 7-segment LED display shows power readings with a resolution of 0.01dB. On-screen indicators display measurement units (dBm, dB, uW), as well as battery life. The ZOOM II comes configured with a 2.5mm universal connector for connection to ST or SC connectors, as well as any other fiber connector with a 2.5mm ferrule.
This unit includes a NIST traceable multimode light source. Its 850nm output is temperature-stabilized for accurate measurements.
Features
Features
- Economical option for quick attenuation and loss testing of both multimode and single mode networks
- Easy-to-read 4-digit 7-segment LCD display
- Store reference values for calibrated wavelengths
- Intuitive 2-button interface on both units
- On-screen wavelength, measurement units, and low battery indicator
- NIST traceable
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| SILICON ZOOM II OPTICAL POWER METER | |
| DETECTOR | Si 1mm |
| NIST TRACEABLE | 850nm |
| WAVELENGTHS | Additional Factory 650nm, 980nm |
| CALIBRATED WAVELENGTHS | |
| MEASUREMENT RANGE | +5 to -60 dBm |
| ACCURACY¹ | ±0.25 dB |
| LINEARITY¹ | ±0.20 dB |
| RESOLUTION | 0.01 dBm |
| BATTERY LIFE | Up to 250 hours |
| OPERATING TEMPERATURE | 0 to 55°C |
| NIST TRACEABLE | Yes |
| BATTERY CAPACITY DISPLAY | Yes |
| CONNECTOR | 2.5mm universal port |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| 1: OVER RANGE OF 0 TO -45 DBM | |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |
| DUAL 850 MULTIMODE LIGHT SOURCE | |
| LAUNCH METHOD | LED |
| CONNECTOR | ST or SC |
| CENTER WAVELENGTH | 850 ±30nm |
| SPECTRAL WIDTH (FWHM) | 60 nm |
| OUTPUT POWER | -20.0 dBm |
| INITIAL ACCURACY | 0.1 dB |
| FIBER TYPE | Multimode |
| BATTERY LIFE | 40 hrs. |
| BATTERY CAPACITY DISPLAY | Yes |
| OPERATING TEMPERATURE | 0 to 55°C |
| STORAGE TEMPERATURE | 0 to 75°C |
| WIDTH | 2.75” |
| HEIGHT | 4.94” |
| DEPTH | 1.28” |
| WEIGHT | 154g |
| CONFORMS TO THE HARMONIZED EUROPEAN STANDARDS EN 61326-1 AND EN 61010-1 | |

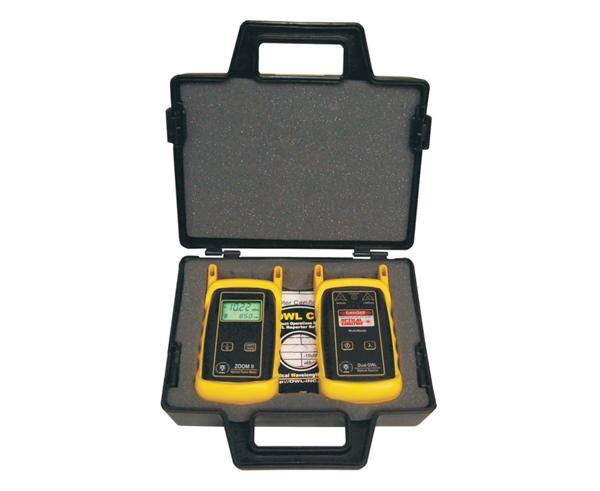

What's In The Box
What's In The Box
- Qty 1 - Silicon ZOOM II (Optical Power Meter)
- Qty 1 - 850nm Light Source
- Qty 1 - Protective Carrying Case
- Qty 1 - Product Manuals Packet
- Qty 1 - NIST Certificate
- Qty 2 - 9-volt Batteries
- Qty 2 - Protective Rubber Boots (ST Connectors)
