Connectors are sold individually. All Corning products are special ordered and non-cancellable, non-returnable
Description
FuseLite® SC Connector, MM 50/125, OM2/OM3/OM4, 900um, Single Pack
The FuseLite® Splice-On Connector enables fast, reliable fusion splicing connectivity for local area networks and offers flexibility for repairs and restoration of connectivity.
Available in SC, LC, FC, and ST Compatible, the FuseLite® Connector provides a reliable connectivity option for applications where fusion splicing may be preferred, such as reflectance-sensitive applications. The FuseLite Connector eliminates the need for splice trays and is compatible with leading fusion splicers in the market.
In applications where fusion splicing is not required, Corning continues to recommend UniCam™ High-Performance Connectors, which eliminate the need for capital investments in equipment, or ongoing consumable purchases and installer training.
A Corning FuseLite Splice-On Holder is needed to secure the FuseLite connectors when using Fujikura/AFL fusion splicers.
Features
Features
- Broad operating temperature (-40°C to +75°C)
- Factory-polished end face
- Fusion splice connectivity
- Splice protection within connector body
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Product Type | Field-Installable Connectors |
| Technology | Fuse-On |
| Keyed | No |
| Corning Logo | Yes |
| Packaging | Single Pack |
| Compatibility | SC |
| Fiber Category | 50 um MM (OM2/3/4) |
| Temperature Range | -40°C to 75°C exceeding EIA/TIA 568-B.3 (-40°F to 167°F exceeding EIA/TIA 568-B.3) |
Additional Information
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DESIGN - CONNECTOR | |
| Connector Type | SC |
| Ferrule Material | Composite |
| Housing Material | Composite |
| Housing Color | Aqua |
| Boot Color | Aqua |
| OPTICAL SPECIFICATIONS - CONNECTOR | |
| Insertion Loss, Typical | 0.10 dB |
| Insertion Loss, Maximum | 0.25 dB |
| Reflectance | ≤ -30 dB |
| Polish | PC |
| ROHS | |
| Compliance | Free of hazardous substances according to RoHS 2002/95/EG |
What's in the Box
What’s in the Box

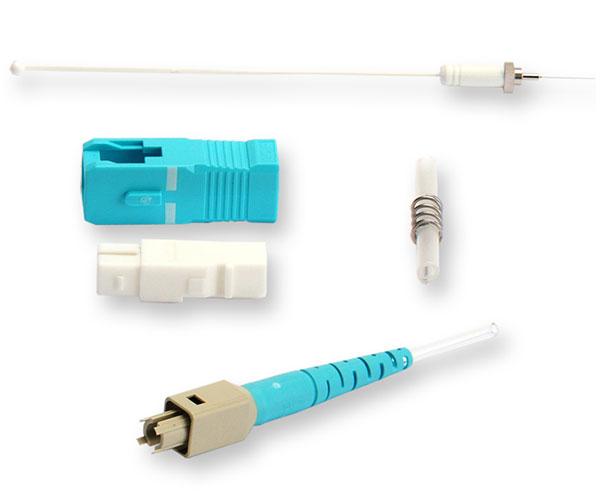

- Qty 1 - Corning FuseLite Fiber Connector, Multimode, 50/125 OM2/OM3/OM4, SC, 900um, Single Pack
