Connectors are sold individually. All Corning products are special ordered and non-cancellable, non-returnable
Description

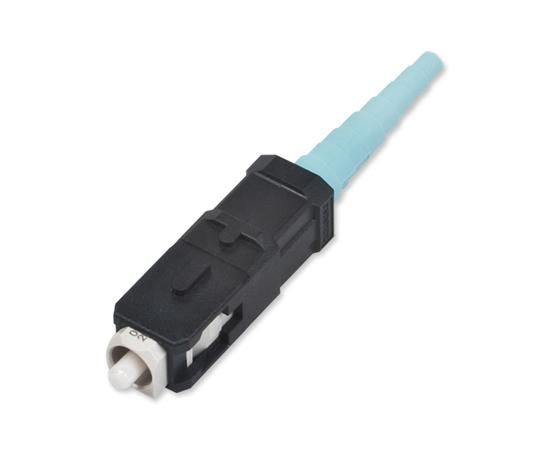

UniCam® SC Connector, MM 50/125 10 GB, Ceramic, Single Pack
Corning Cable Systems UniCam® High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision ceramic ferrule multi-mode connectors guarantee a 0.1 dB typical/0.5 dB maximum insertion loss per connector pair for exceptional network performance.
Installation of an LC, SC, or ST Compatible Connector can be accomplished in about 45 seconds with the UniCam® High-Performance Tool Kit. The lightweight, hand held installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time.
This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed.
Every UniCam® connector is assured to meet the published specification at the time of installation or Corning will replace it.
Features
Features
- Broad operating temperature (-40°C to +75°C)
- Factory-polished end face
- Fast termination (around 45 seconds) and no consumables
- Guaranteed 0.1 dB typical/0.5 dB maximum insertion loss per connector pair
Specifications
| PRODUCT SPECIFICATIONS | |
|---|---|
| GENERAL & DESIGN SPECIFICATIONS | |
| Product Type | Field-Installable Connectors |
| Product Category | Core product / Fastship |
| Connector Type | SC |
| Fiber Category | 50 µm Multimode (OM3/OM4) |
| Technology | No-Epoxy / No-Polish |
| Housing Material | Composite |
| Housing Color | Black |
| Boot Color | Turquoise |
| Keyed (Security) | No |
| Corning Logo | Yes |
| MECHANICAL SPECIFICATIONS | |
| Nominal Fiber Outer Diameter | 125 µm |
| Durability | ≤ 0.2 dB change, 500 rematings (FOTP-21) |
| Tensile Strength | • Jacketed Cable: 50 N • 900 µm Cable: 4.9 N (1.1 lb) change ≤ 0.2 dB (FOTP-6) |
| OPTICAL SPECIFICATIONS | |
| Insertion Loss | 0.1 dB typical / 0.5 dB maximum |
| Reflectance (Return Loss) | ≤ -26 dB |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature Range | -40 °C to 75 °C |
What's in the Box
What's in the Box
- Qty1 - Multimode, OM3/OM4, SC Corning Fiber Connectors
