Descriptions

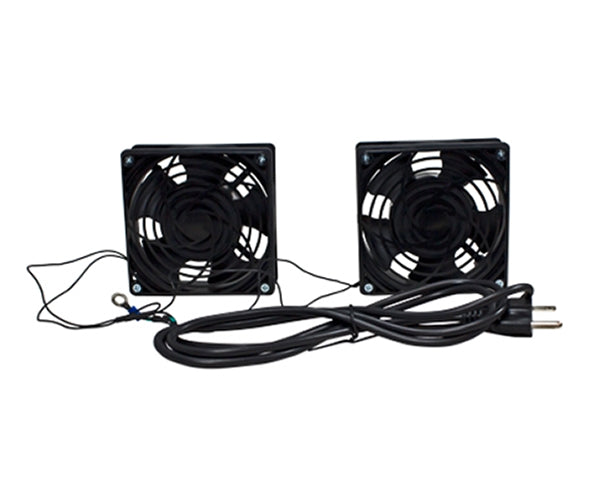

Double Fan, 150 CFM
This double fan provides a boost in airflow to cool IT equipment in wall mount cabinets and other small enclosures. Simply mount the fans to the top of the enclosure using the included hardware and connect the prewired 6 ft power cord to an outlet. Each fan generates 75 CFM of airflow while using only 0.24A of electricity.
Features
Features
- Quiet operation – rated at only 80 dbA
- Impressive airflow – up to 150 CFM
- Energy efficient – uses only 0.48A
- Input – 100-125VAC 50/60Hz
Specifications
Specifications
| Product Type | Electric Fan |
| Impeller Material | PBT Reinforced Plastic |
| Terminals | 0.02" |
| Dimensions (HxWxD) |
4.72” x 4.72” x 1.77” (ea) |
| Motor | Shaded Pole Induction Motor |
| Bearing System | Sleeve |
| Cord Length | 6 ft |
| Operating Temperature |
-10°C ~ 70°C |
| Voltage | 100 ~ 125 VAC (Per Fan) |
| Frequency | 50 / 60 Hz (Per Fan) |
| Current | 0.24 Amps (Per Fan) |
| Power | 10 / 9 Watts (Per Fan) |
| Speed | 2100 / 2400 RPM |
| Noise | 35 / 40 dBA (Per Fan) |
| Airflow | 75 CFM (Per Fan) |
| Static Pressure | 3.1 / 4.1 (mmH²0) |
| Weight | 540 gr |
| Compliance & Standards | CE & RoHs Compliant |
| Quantity Per Package | 1 (set of 2) |
What's in the box?
What's in the box?
- Qty 1 - Double Fan, 150 CFM
