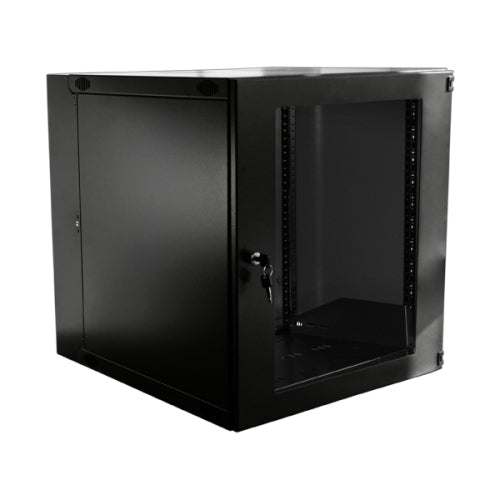

Double Hinge Swing Out Wall Mount Cabinets
The Double Hinge Swing Out Wall Mount Cabinets are a great solution for networking, security, and AV installations where access to the back of the equipment is important. Compatible with all standard 19-inch EIA equipment, these cabinets feature a swing-out design that also allows the rear section to completely disconnect from the cabinet, making installation a breeze.
Constructed of cold rolled, powder-coated 19-gauge steel, these swing out wall mount cabinets have a maximum load capacity of 100 pounds and are available in 9U, 12U, and 15U racking heights. Ships unassembled and flat packed for easy on-site handling.
Features
Features
- Cable entry on top, bottom and back
- Lace points to reduce cable clutter
- Lockable acrylic front door is removable and reversible
- Lockable rear door swings out 90° from wall for accessibility
- Locking front and rear doors prevent unauthorized access to equipment
- Two sets of rails provide a stable mounting structure
- Door are grounded to the cabinet frame
- Multiple cable entry options provide greater flexibility during installation
- Mounting rails are adjustable to match a variety of equipment sizes
- Doors are removable for convenient access to equipment
- Available in three sizes to fit in a variety of environments where space is limited
- Top and bottom panel vents to optimize cooling of equipment
- Adaptable for use in network, security and audio/video installations
Specifications
Specifications
Product Manual 9U 12U 15U|
Product Type |
Double Hinge Swing Out Wall Mount Cabinet |
|
Frame Material |
Cold Rolled Steel |
|
Finish |
Black Powder Coat |
|
Rack Unit Quantity |
9U, 12U, or 15U |
|
Front Door |
Removable, Reversible & Lockable Steel Frame With Full Panel Acrylic Window, Opens Full 180° |
|
Rear Door |
Swings Out From Wall 90°From Either Left or Right Corner, 12” x 12” Removable Panel, Wall Mounting Keyholes Spaced 16” Apart, Multiple Lace Points |
|
Side Panels |
Solid, Built Into Frame |
|
Top Panel |
Ventilation Holes For Optional Fans, (6) Knock-Out Cable Entry Holes Located at Back: (2) ¾”,(2) 1” and (2) 2” Knock-Outs |
|
Bottom Panel |
(6) Knock-Out Cable Entry Holes Located at Back: |
|
Equipment Support |
Two Pairs of Mounting Rails, Adjustable |
|
Grounding |
14 AWG Ground Wire Connects Doors & Side Panels |
|
Static Loading Capacity |
100 lbs |
|
Compliance & Standards |
ANSI/EIA RS-310D, IEC60297-2, |
Technical Illustration
Technical Illustration
What’s In The Box
What’s In The Box
- Qty 1 - Package of Fixed Wall Mount Cabinet
- Qty 48 - 10-32 Mounting Screws & Washers
- Qty 2 - Grounding Kits
- Qty 1 - Paper Mounting Template
- Qty 2 - Keys
