Description

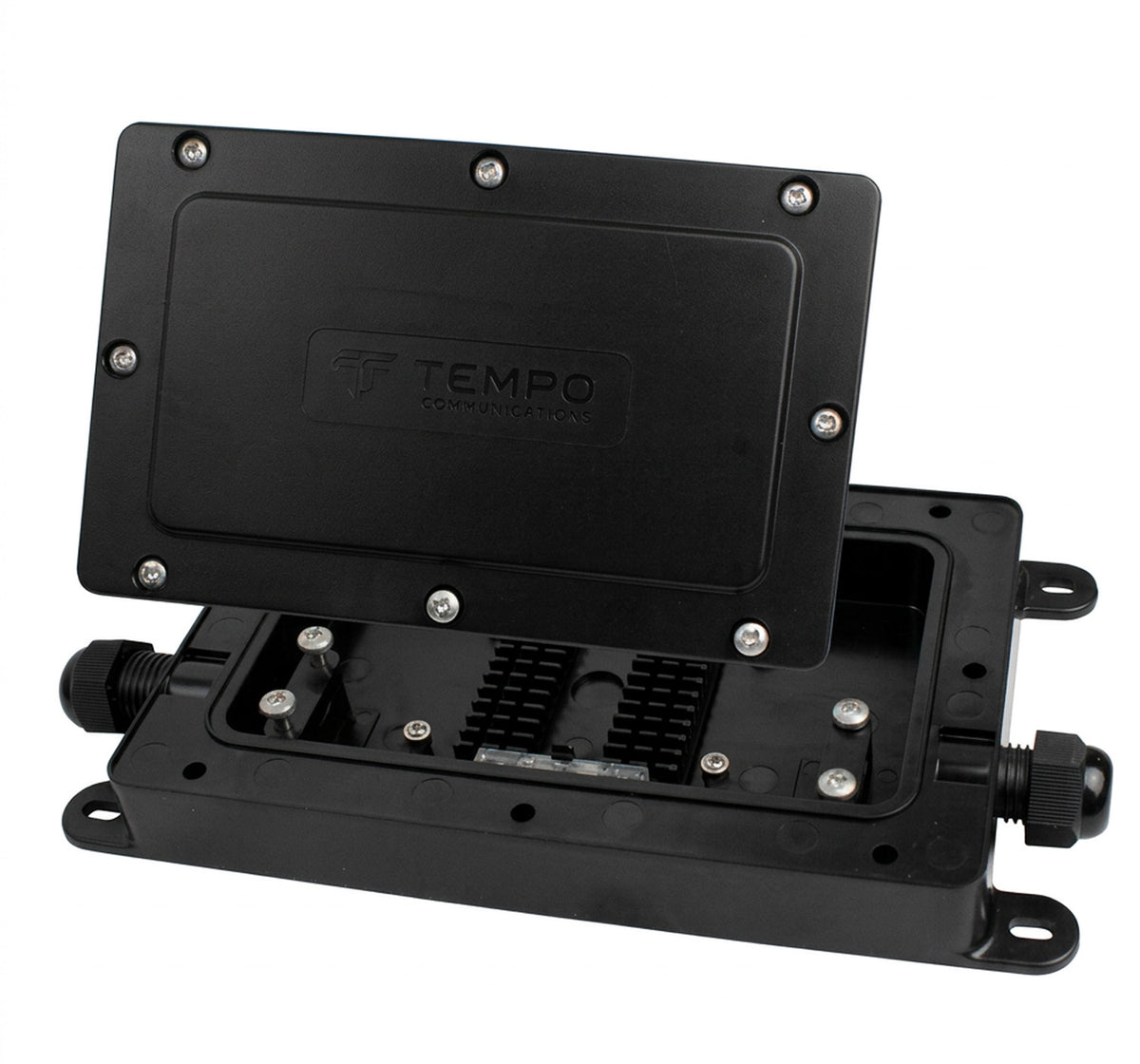

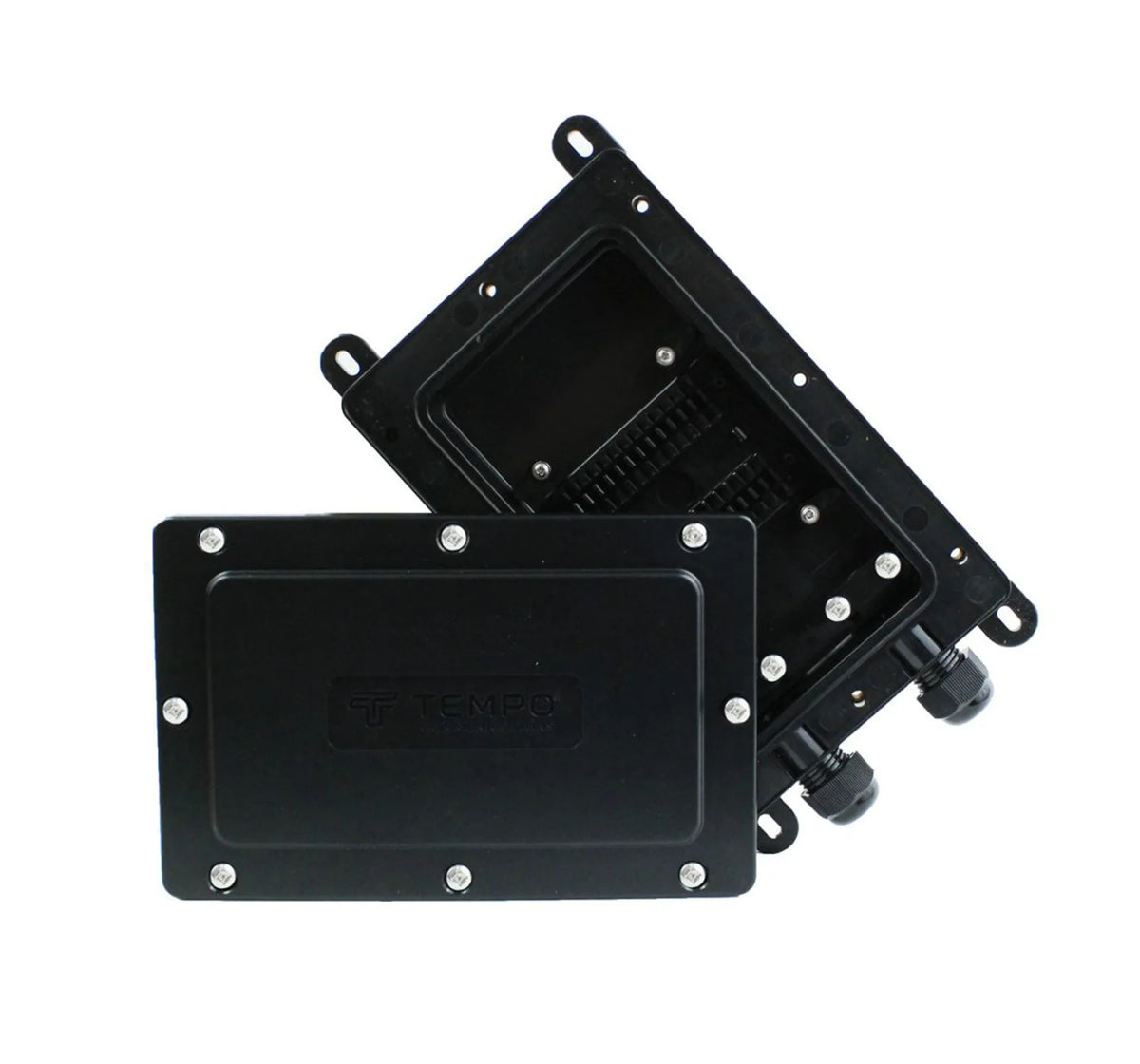

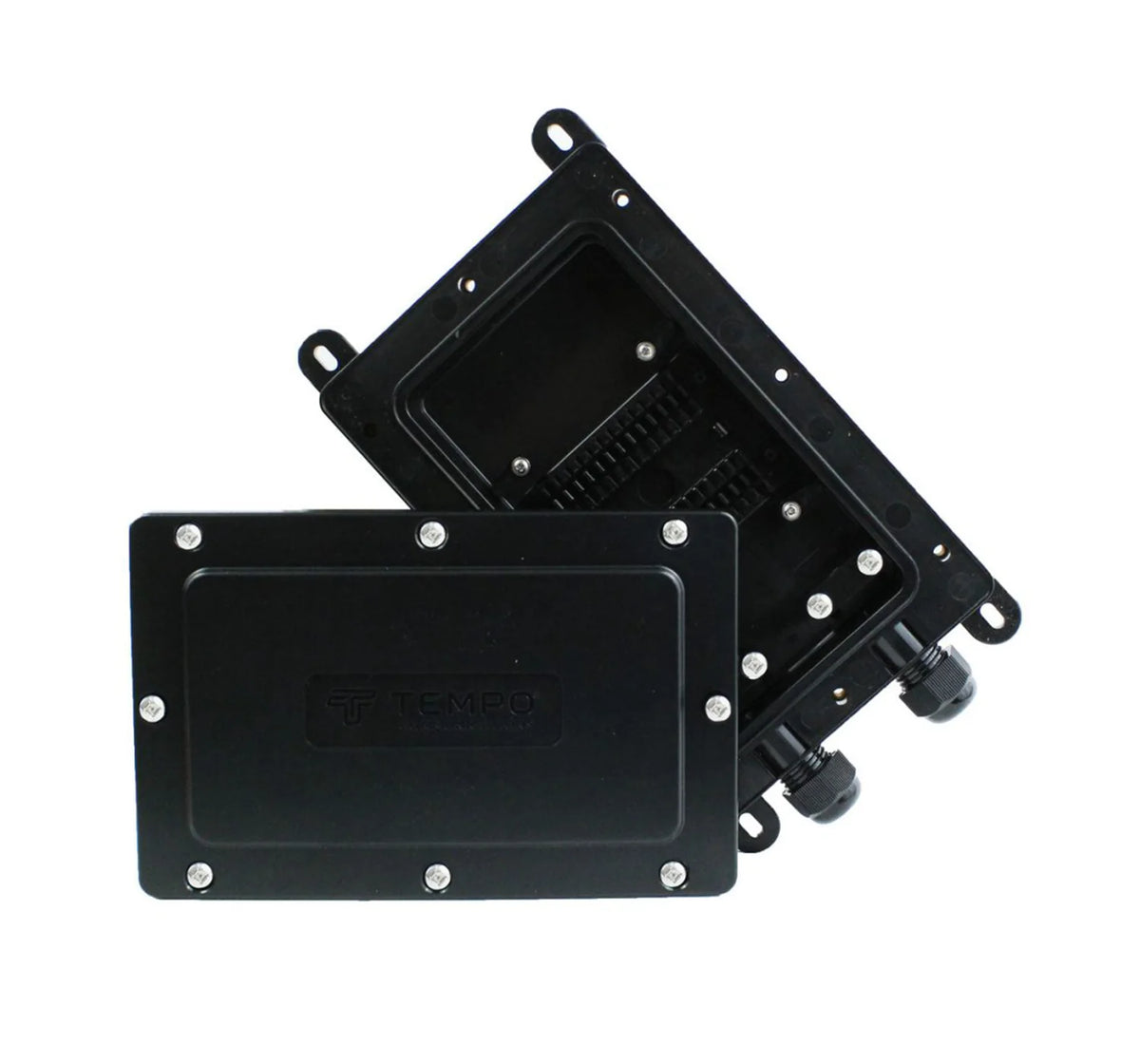

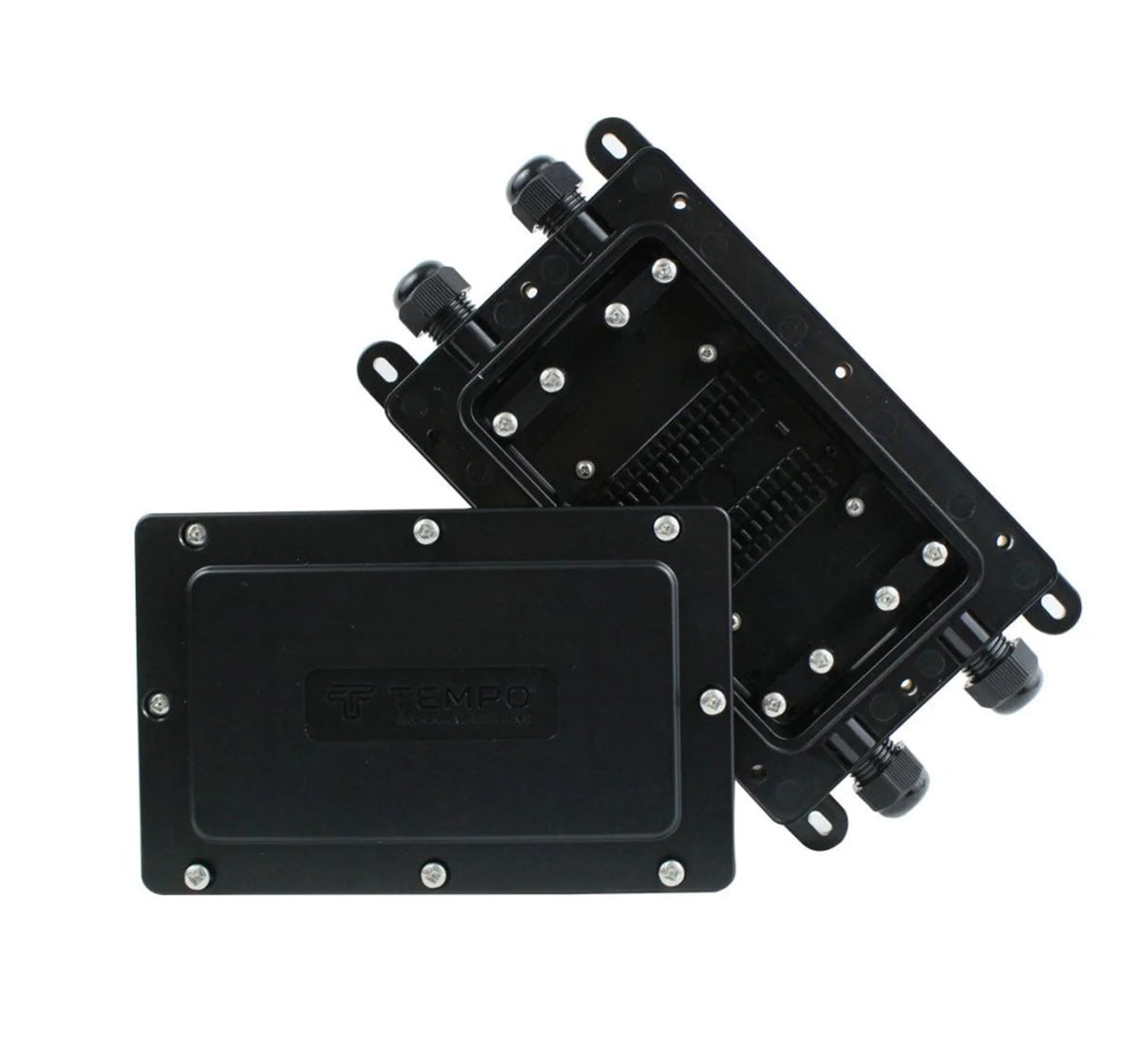

Drop Fiber Enclosure Kit

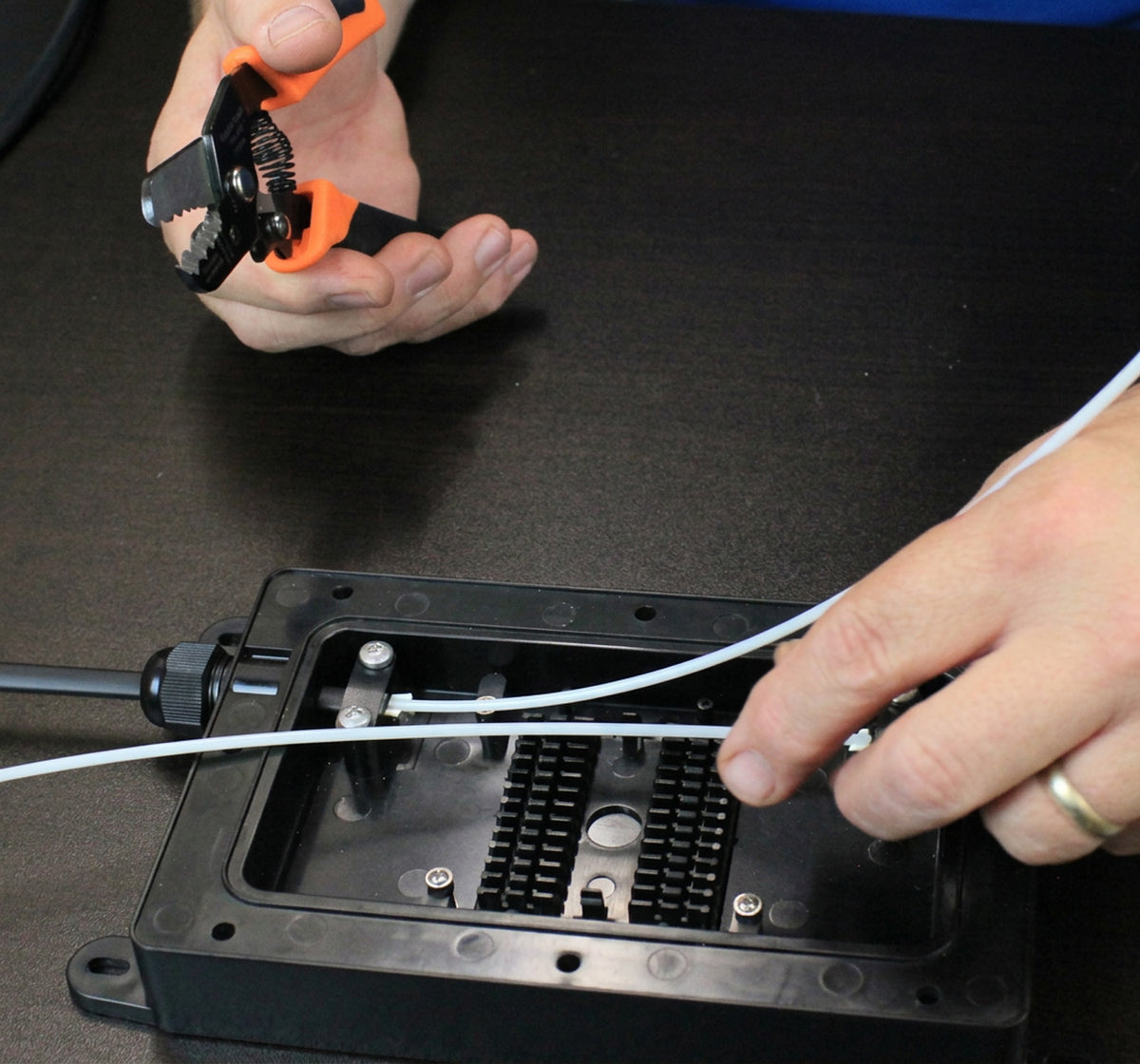

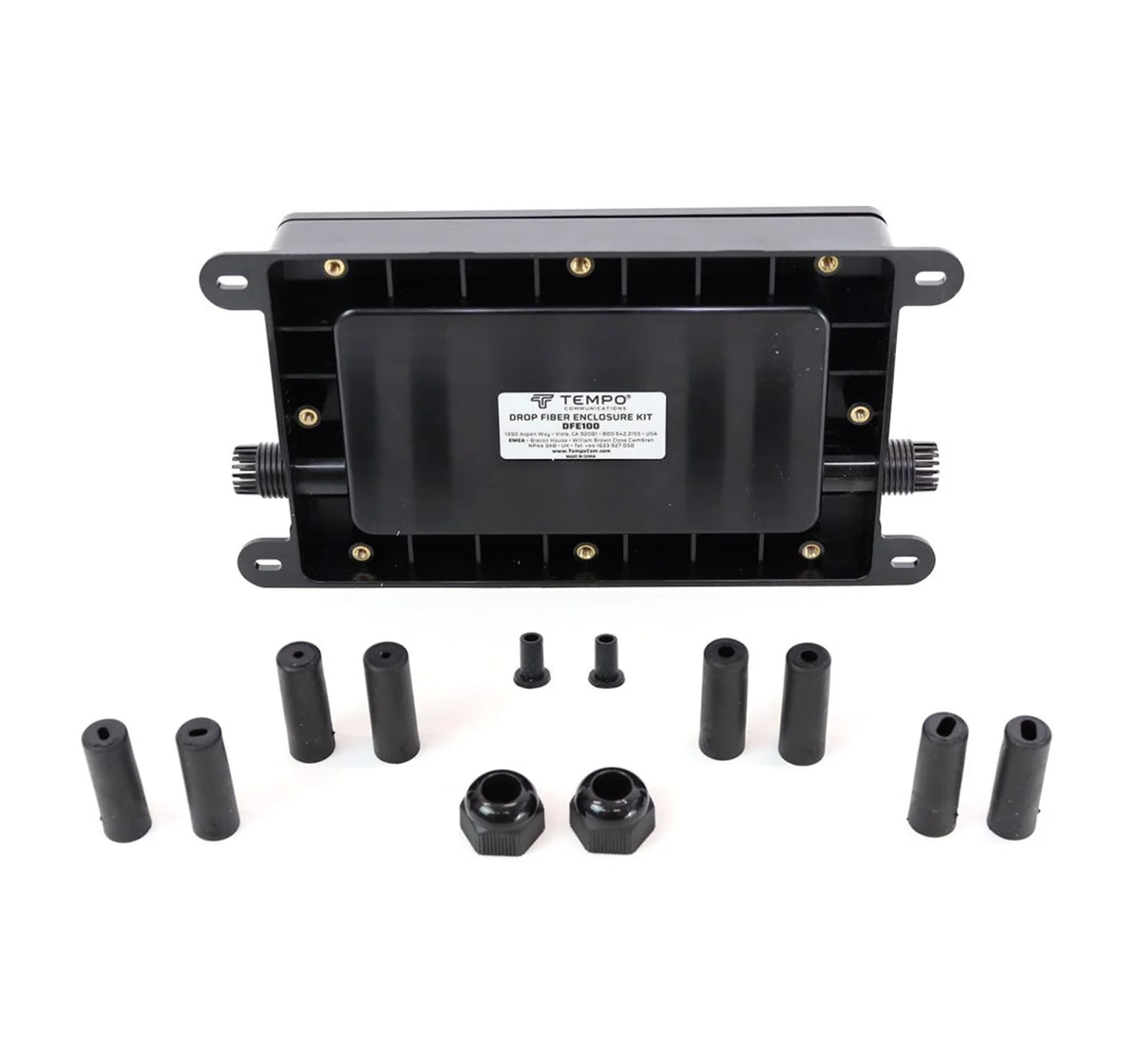

The Drop Fiber Enclosure Kit is used to facilitate repairs of fiber optic cables. Common fiber sizes of 8.1mm, 5.4mm and 5.1mm rectangular cables, and 3.0mm and 5.1mm round cables are accommodated with the supplied sealing gaskets.

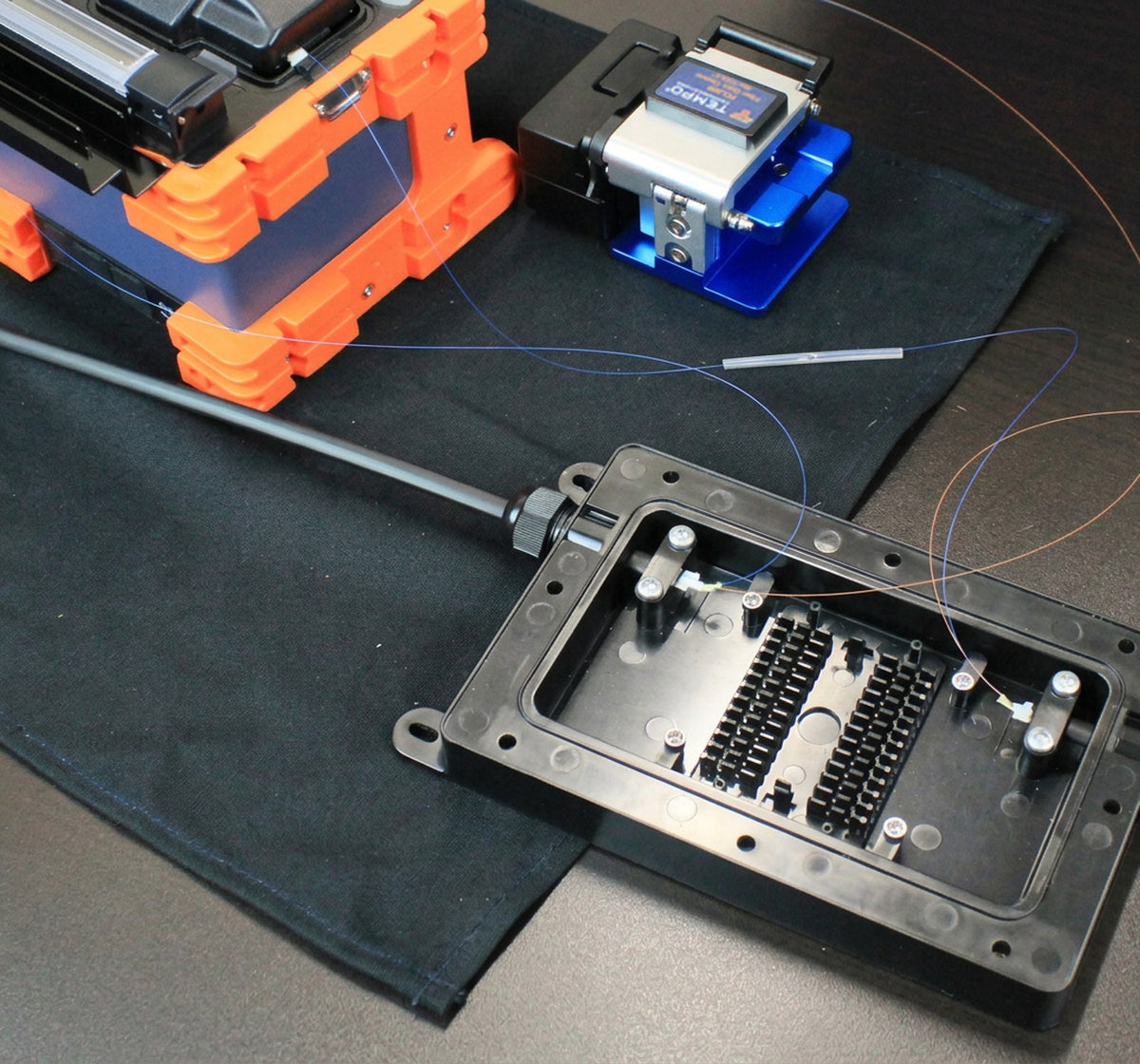

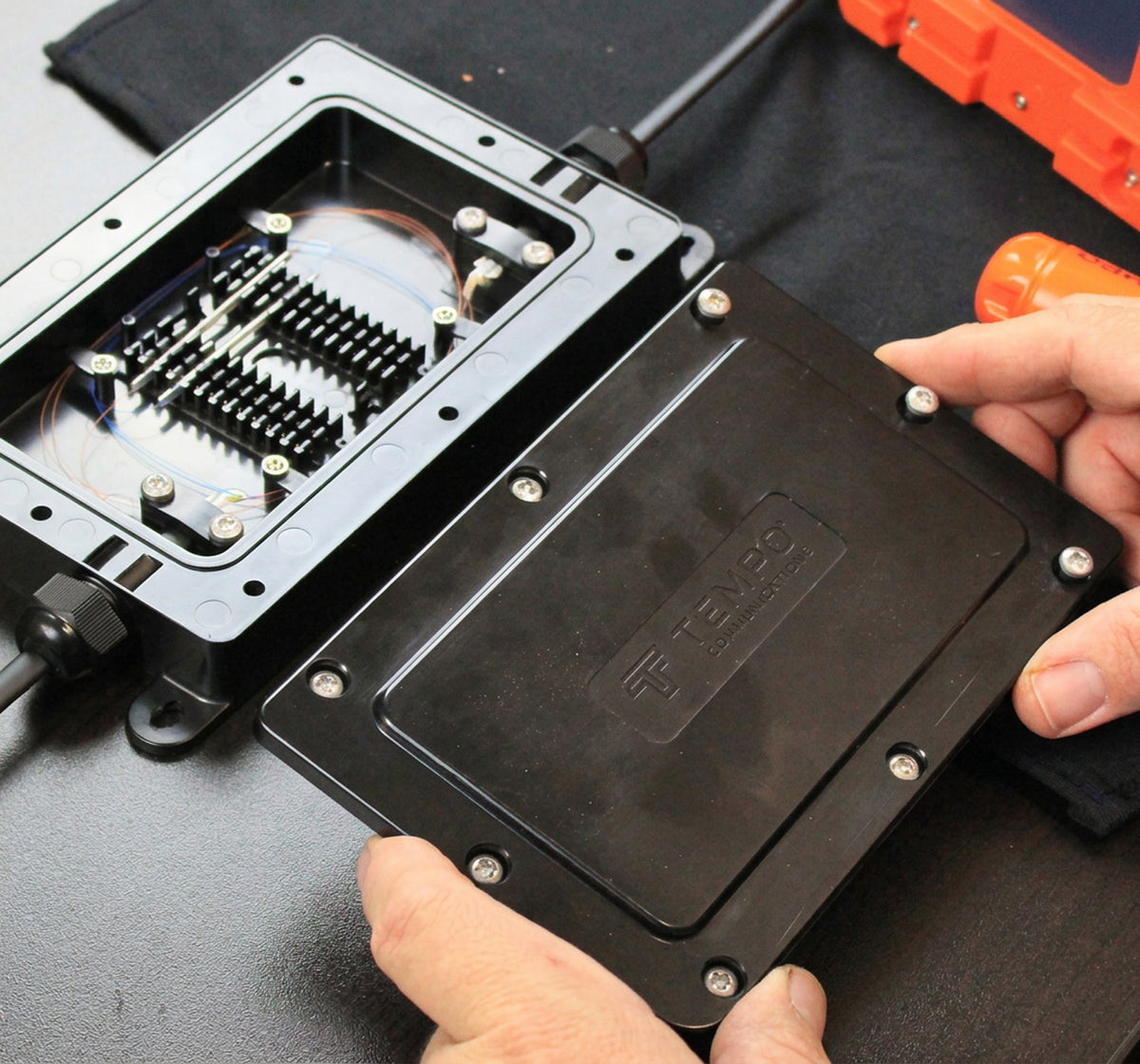

Both fusion splices (total of 24) and two mechanical splices are securely positioned within the IP68-rated, GR771 compliant enclosure. The enclosure can be permanently buried or mounted onto the side of a building.
Two DFE enclosures are typically used to repair a drop fiber as there is typically not enough slack cable to reconnect the fibers.
The DFE provides a splice point location within the network build as well as a demarcation point at the premises.

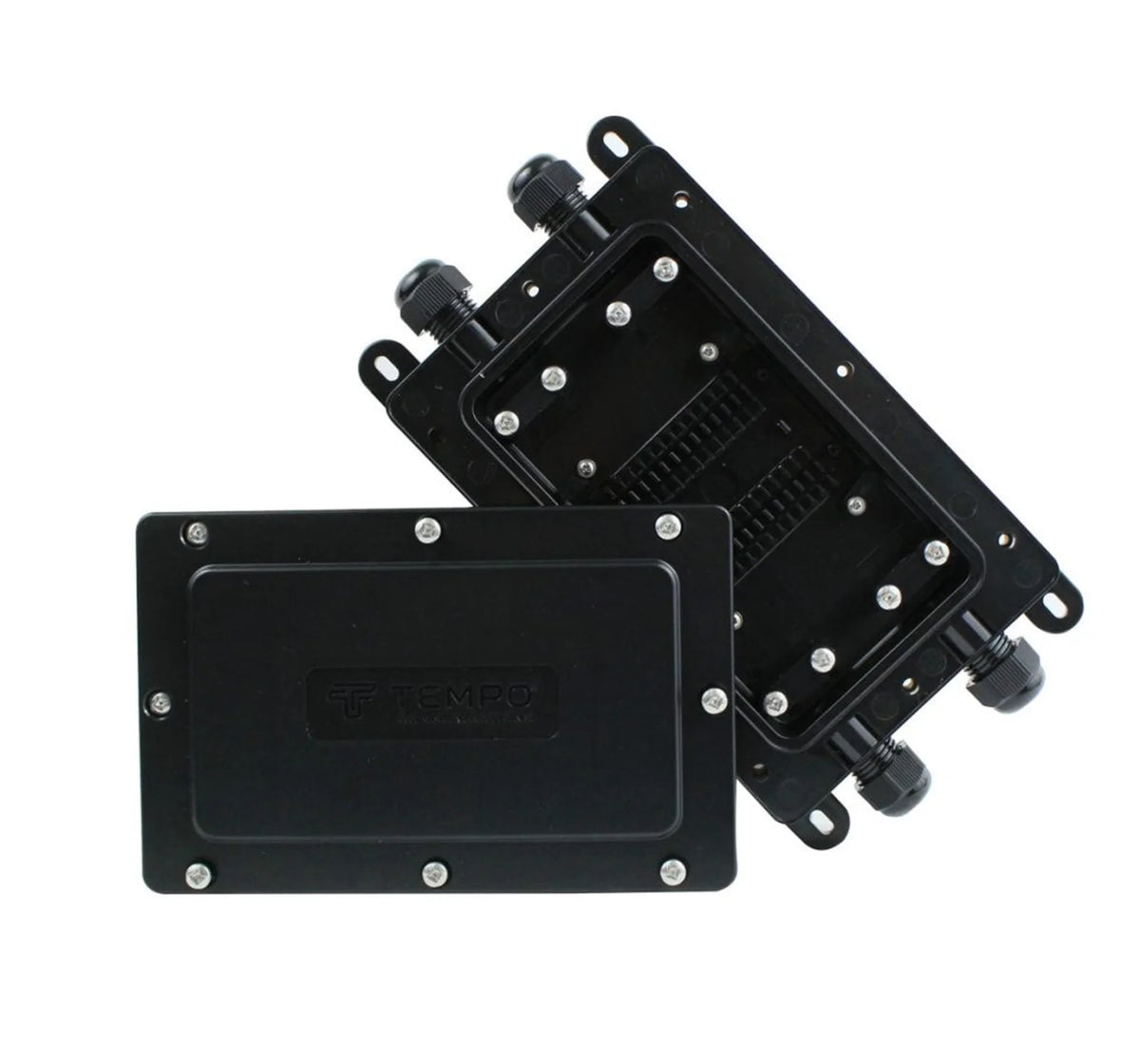

The Bulkhead versions (-BH) have two integrated SC/APC bulkheads that replace the splice tray. This allows for the technician to route terminated cables and provide a convenient bulkhead for connectivity.
Features
Features
- IP68 rated for buried applications
- GR771 compliant
- Accommodates up to 26 splices

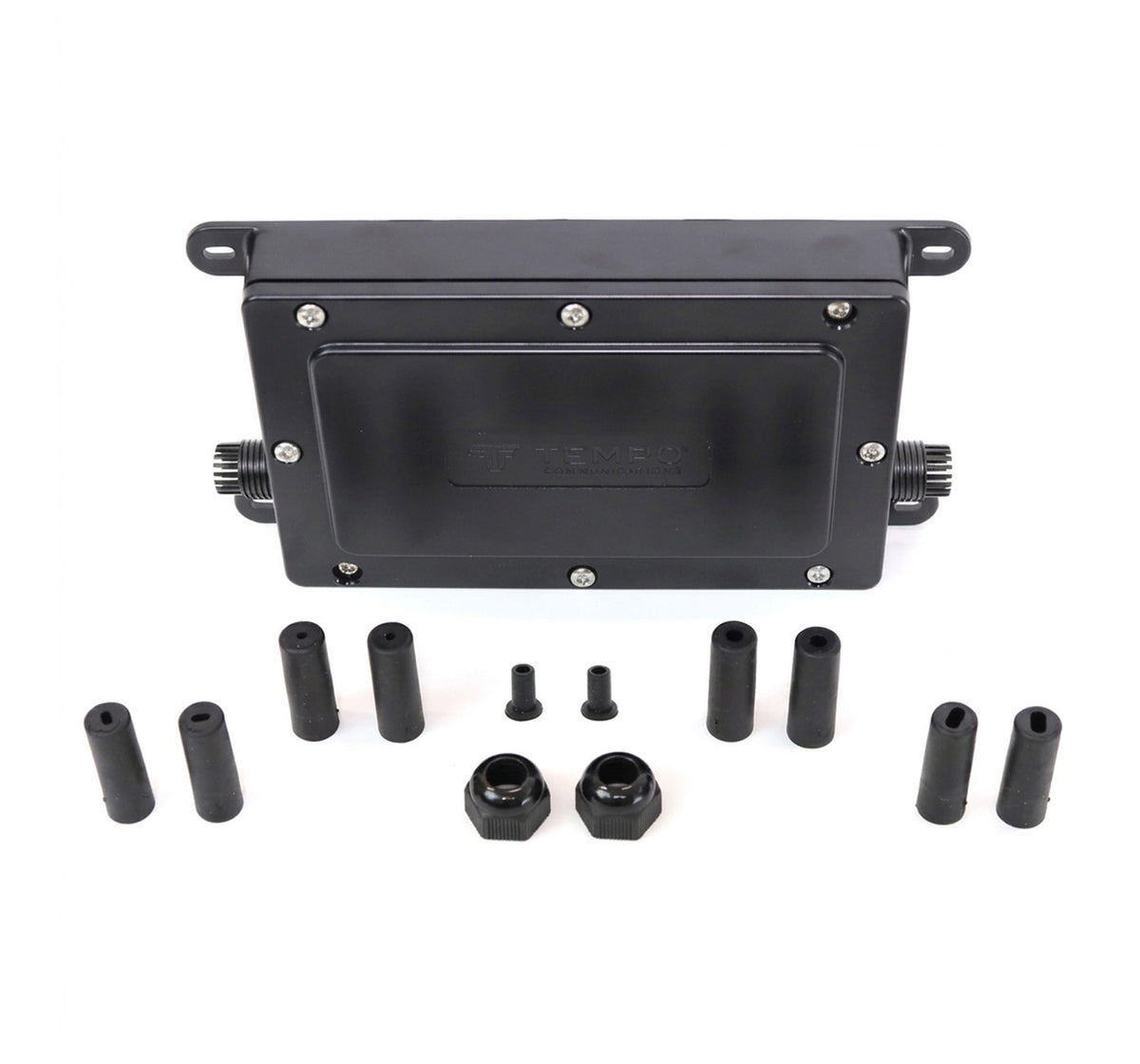

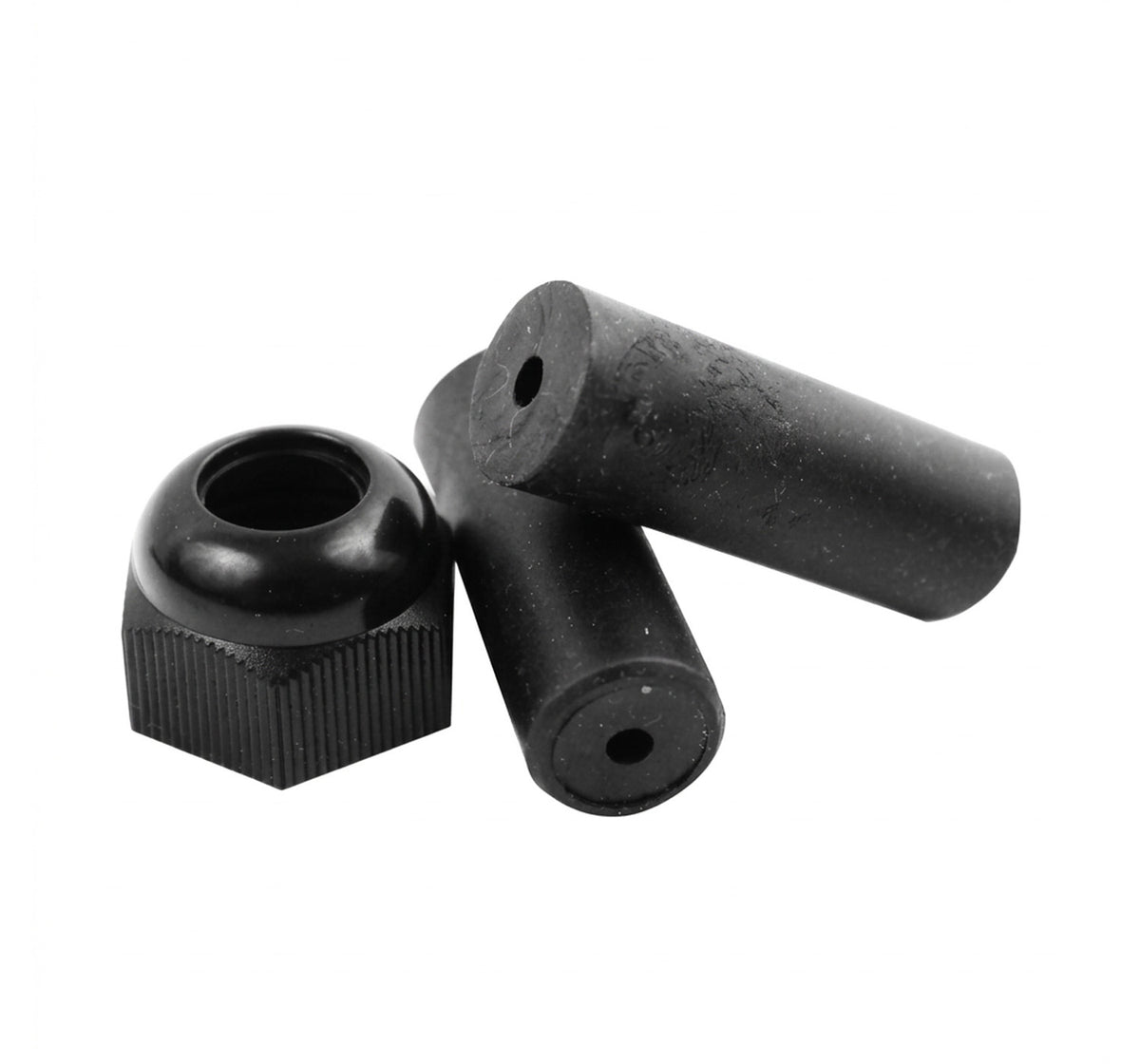

- Individual gaskets for 8.1, 5.4 and 5.1mm rectangular and 3.0 mm and 5.1 round cables
- Fast assembly with common tools.
- Bulkhead versions provide two integrated SC/APC bulkheads
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| IP RATING | IP68* |
| COMPLIANCE | TELCORDIA GR771* |
| SIZE | 8.85 X 4.72 X 1.34” (225 X 120 X 34MM) |
| WEIGHT | 0.66LB (0.3KG) 0.8LB (0.36KG) [FOR THE DFE104] |
| CABLE SIZES | 8.1MM RECTANGULAR, 5.4MM & 5.1MM RECTANGULAR AND 3.0MM AND 5.1MM ROUND |
| FUSION SPLICE LOCATIONS | TWELVE (60MM) |
| MECHANICAL SPLICE LOCATIONS | TWO |
| COLOR | BLACK |
| MATERIAL | POLYCARBONATE (UV RESISTANT) |
| OPERATING TEMPERATURE | -40 TO +80C |
| STORAGE TEMPERATURE | -40 TO +80C |
Additional Information
| Product Videos | |
|---|---|
DROP FIBER ENCLOSURE KIT TRAINING VIDEO |
What's in the Box
What's in the Box
- Qty 1 - Drop Fiber Enclosure Kit
