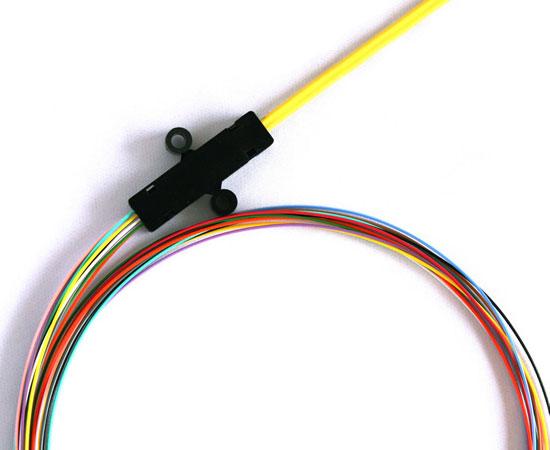

Fan-out Kit, 900um Tubing

Fan-out Kit, 900um Tubing

Fiber Savvy

SKU:FB26-3834-6FOK


Size & Diameter in Inches
Strand Count
Regular price Price: $24.99
Regular price Sale price Price: $24.99
*Shipping calculated at checkout
Sale Sold out
View full details

Description

6 Fiber Fan-out Kit for Loose Tube Cables (250um), 25" Leads

Fan out kits are designed for the quick and simple termination of loose tube and micro distribution (250um bare fiber) products. The three unique clips (included) accept different tube sizes including ribbon, 2mm and 3mm.

The kits are pre-configured for 6 or 12 fiber applications with 25", 36" and 47" lengths of 900um tubing in the appropriate industry color scheme. The black, glass reinforced ABS plastic unit snaps together and allows the ability to reopen for reentry if necessary. Each kit comes with adapters for ribbon cable or buffer tubes.

Features

Features

  • Color coded tubing for easy identification.
  • Saves time in the termination process.
  • Clips included accept ribbon, 2mm & 3mm cables.
  • Compatible with all connector styles.
Applications
  • The "build up" or "break out" of bare fiber tubes for termination.
  • Quick and easy termination.
  • Durable protection for bare fibers.

Fan-out Kit Specifications

Body (mm): 44L x 12W x 8H
Overall Dimensions (mm): 44L x 30W x 8H
Mtg Hole (mm): 22
Tubing OD (um): 900 +/- 50
Tubing ID (um): 450 +/- 50
Length of Tubing (in.): 25", 36", or 47"
