These fiber adapter panel inserts are only compatible with our FB23 and FB36 fiber patch panels and our FB23 and FB36 wall mount enclosures.
Description

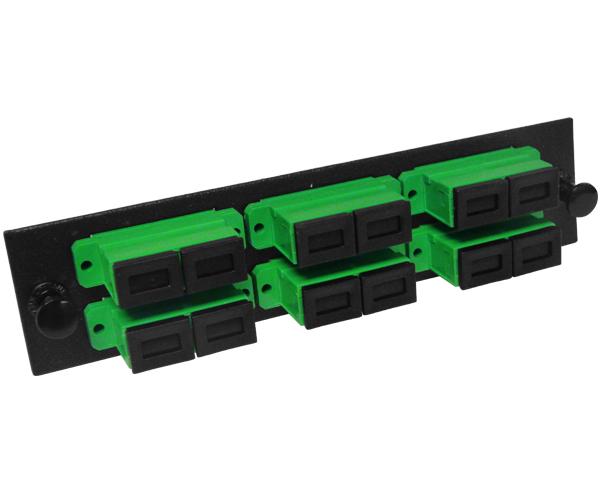

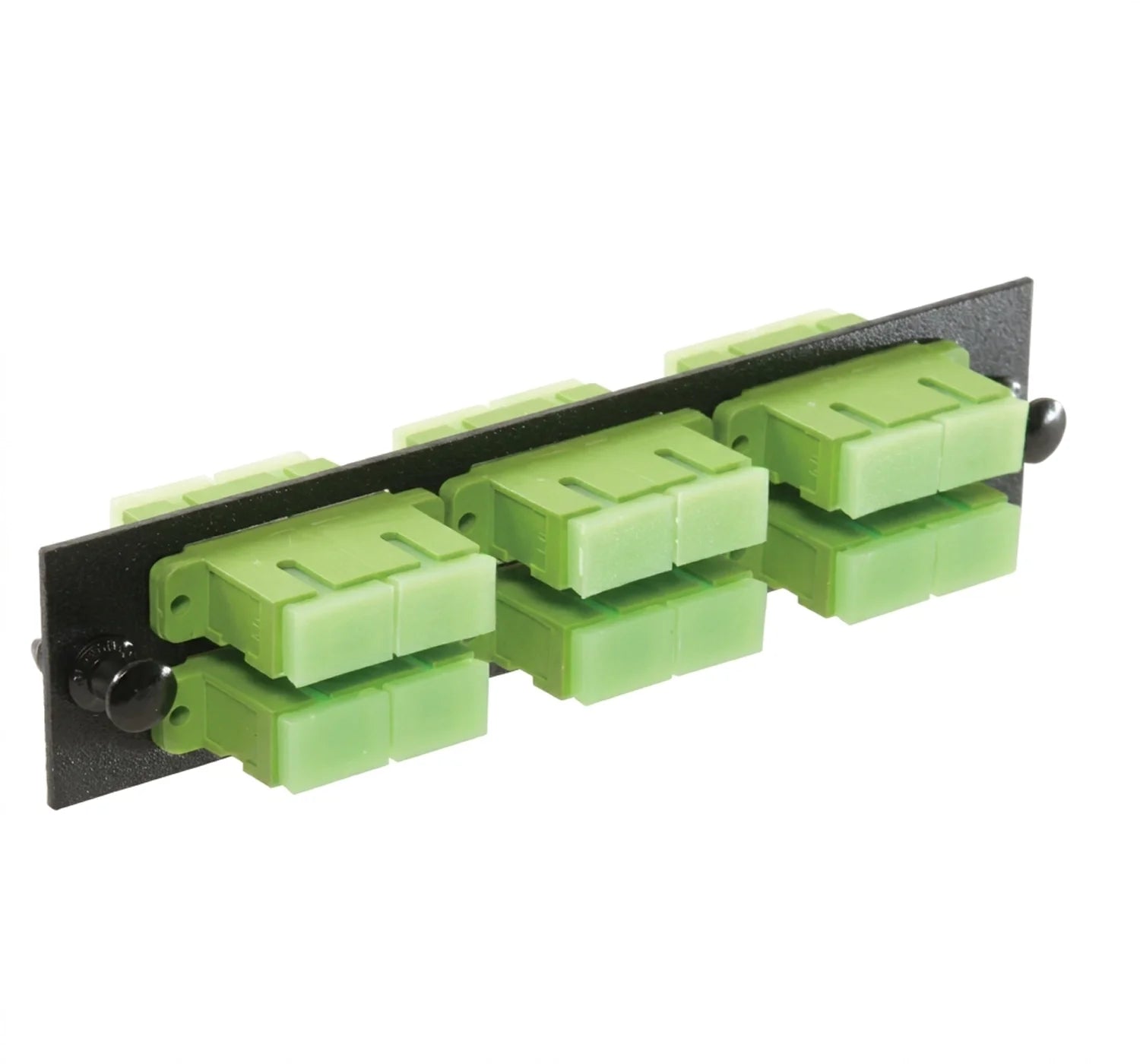

Fiber Adapter Panel - Loaded with 6 Duplex SC/APC (Green) Adapters, Single Mode, Black, 12 Ports Total
This fiber adapter panel is loaded with 6 duplex single mode SC/APC connectors, giving a total of 12 ports. The panel snaps easily into most of our FB23 Fiber Patch Panels and Wall Mounts.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Connection Type | SC Duplex |
| Number of connection | 12 |
| Ferrule | Ceramic |
| Mode | Single Mode |
| Fiber polish | APC |
| Connection Color | Green |
| Plate Color | Black |
| Plate Code | SAD |
| Plate Height | 1.20" |
| Plate Width | 5.12" |
What’s in the Box
What’s in the Box
- Qty 1 - Fiber Adapter Panel, Single Mode, 6 SC/APC Duplex Couplers
