Description

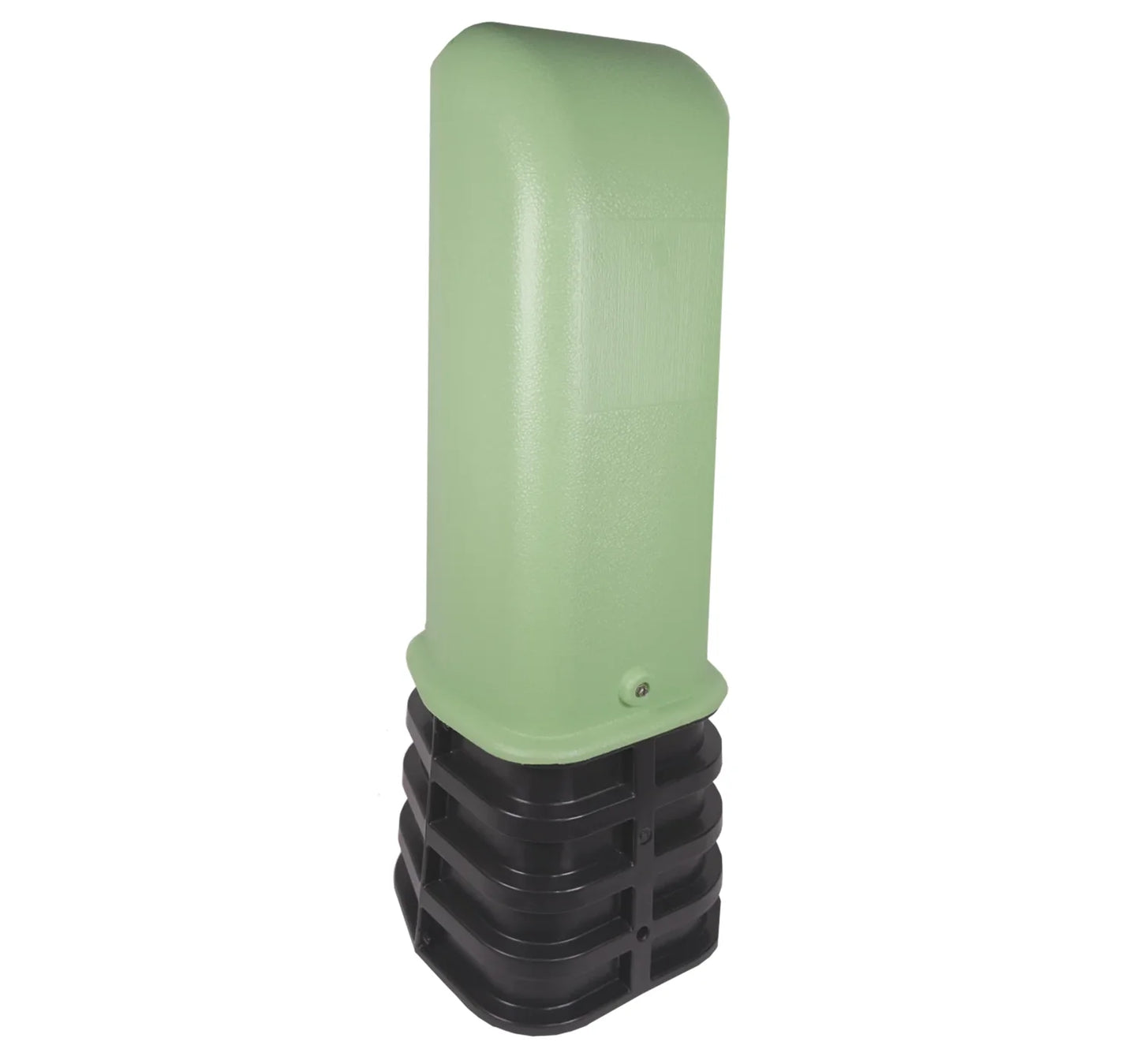

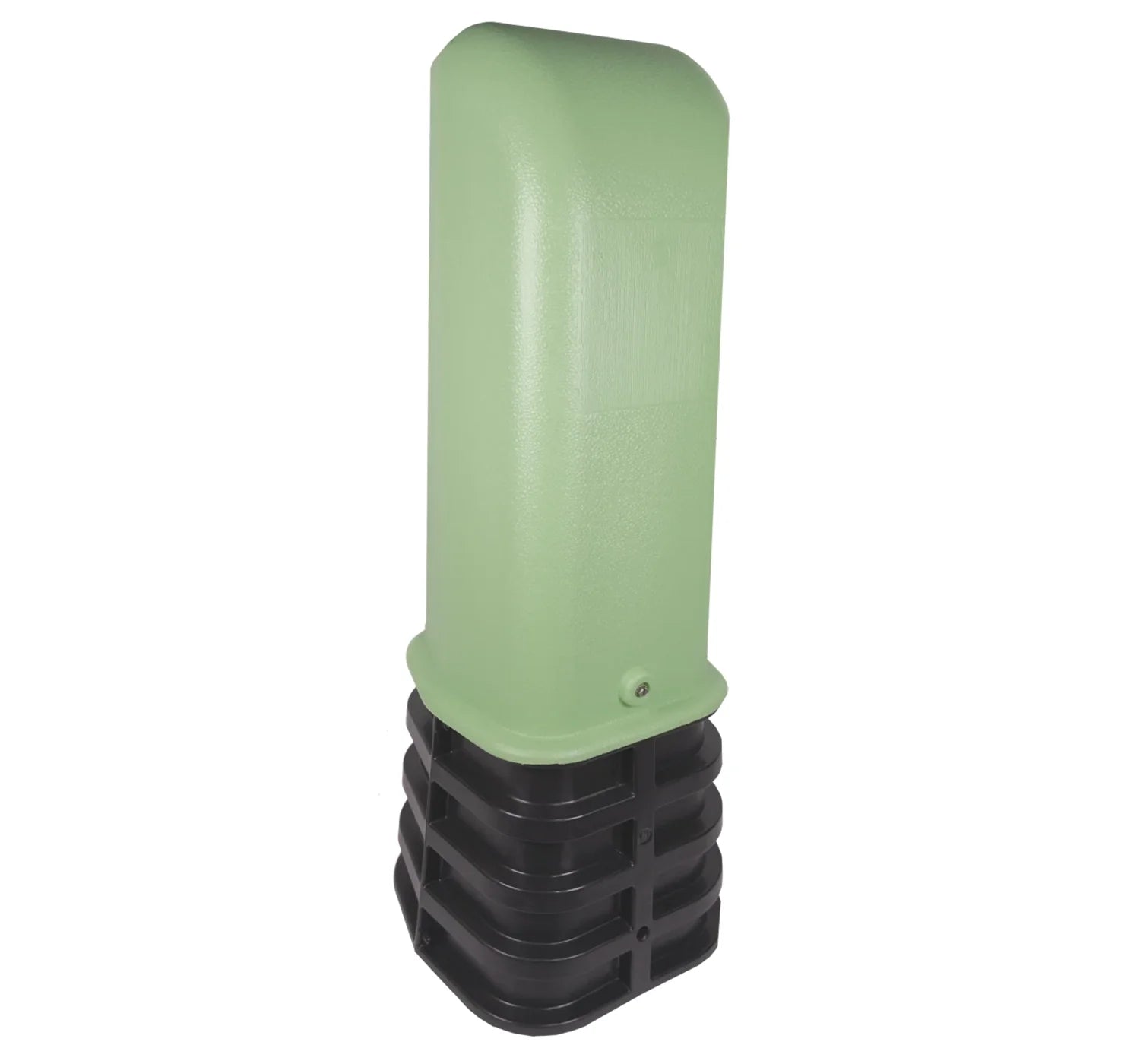

Fiber Enclosure - Fiber Pedestal with 7/16 Hex Lock, Utility Green

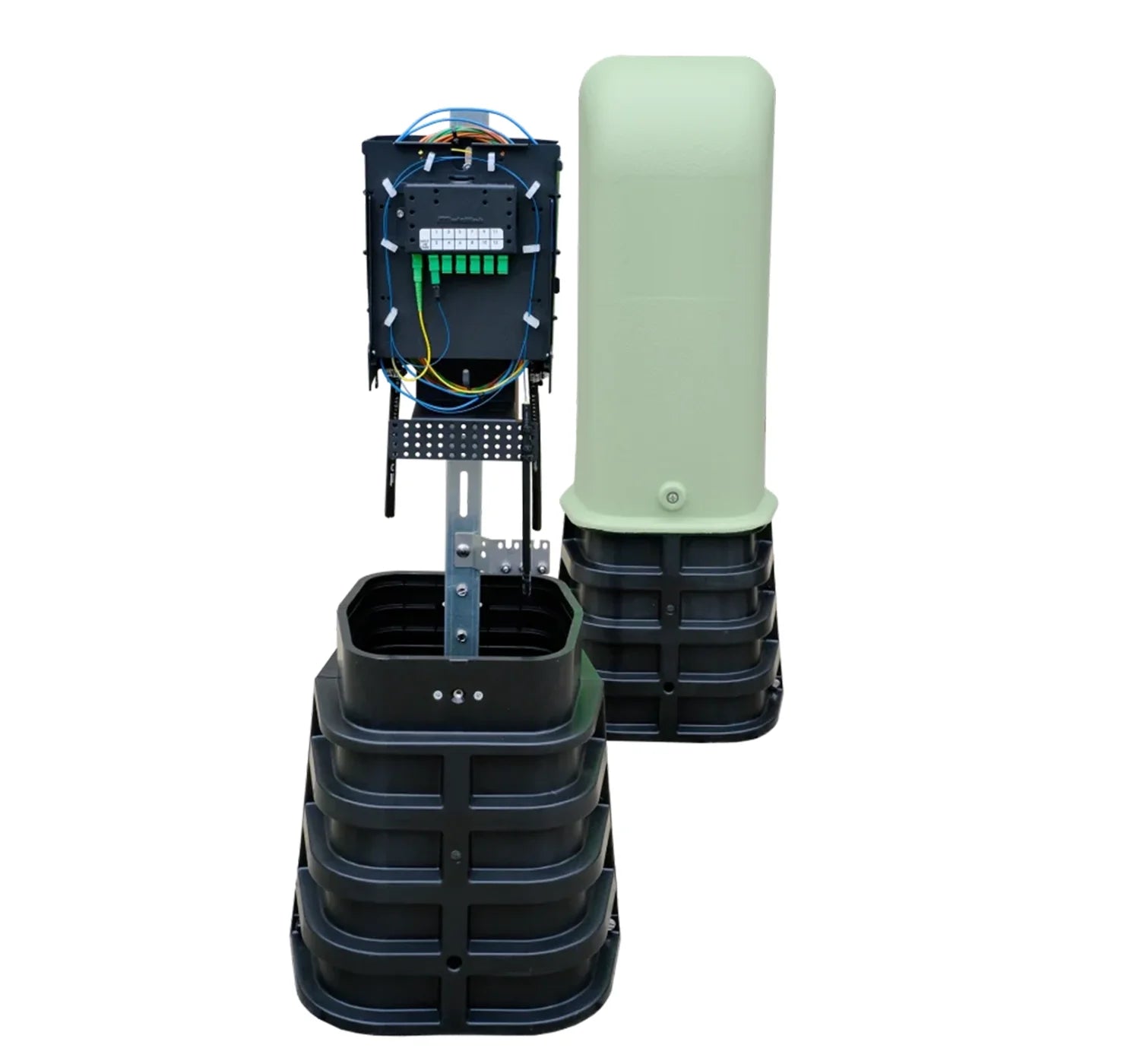

As the first fiber-specific pedestal, this model is ideal for residential or MDU applications. The Fiber Pedestal serves as an above-grade alternative to house and protect fiber terminations. This pedestal is simple, but provides an effective mounting post to place your equipment. With easy installation, these pedestals offer excellent protection of your MST/Fiber Tap or other equipment. The high density polyethylene dome that protects against what Mother Nature may throw at it. The Fiber Splice Terminal (FST) may be added as an option.
Features
Features
- First Fiber Designed Pedestal
- UV Protected - Durable in any Weather
- 100% American Made
- Quick and Easy Installation
- Universal Mounting Post
- Multi Security Lock Options
- Aesthetically Pleasing Design
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DIMENSIONS |
✔️ 11.8"W x 24"H x 11.5"D (above-grade)
✔️ 13.9"W x 12"H x 13.6"D (below-grade) ✔️ 9.1"W x 9.48"D (interior) |
| COLOR | UTILITY GREEN |
| CAPACITY | (1) NPNB-020-483-05 - FIBER SPLICE TERMINAL |
| MATERIAL | UV STABILIZED PLASTIC |
| SECURITY |
✔️ 7/16 HEX HEAD
✔️ STAR PATTERN LOCK ✔️ P-KEY |
What's in the Box
What’s in the Box
- Qty 1 - Fiber Pedestal Unit (Utility Green, UV-stabilized plastic, dimensions: 11.8"W × 24"H × 11.5"D above-grade)
- Qty 1 - 7/16 Hex Head Lock (Security mechanism)
- Qty 1 - Mounting Hardware (For installation, inferred from product type)
- Qty 1 - Installation Guide / Manual (Inferred from standard packaging)
