Includes one (1) splice tray. Additional FB25-3994STA12 splice tray sold separately.
Description
Fiber Inline Closure, 24 Splice Capacity

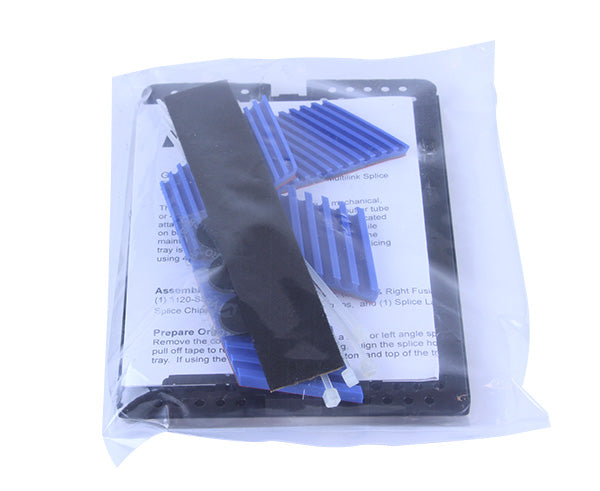

Compatible with Splice Tray FB25-3994STA12

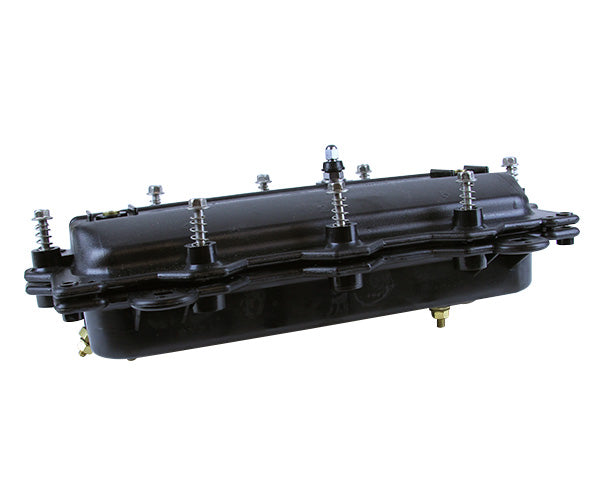

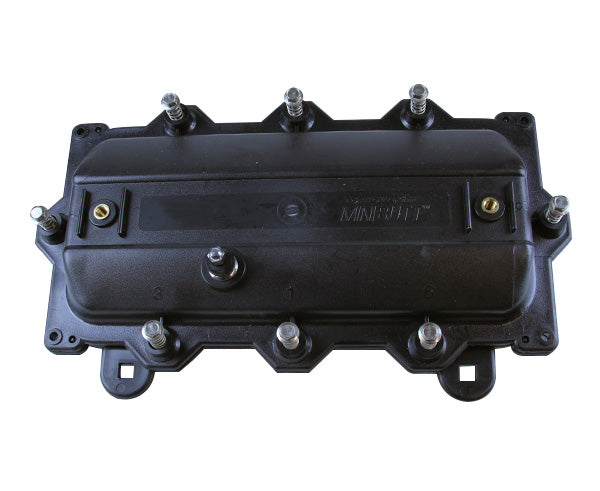

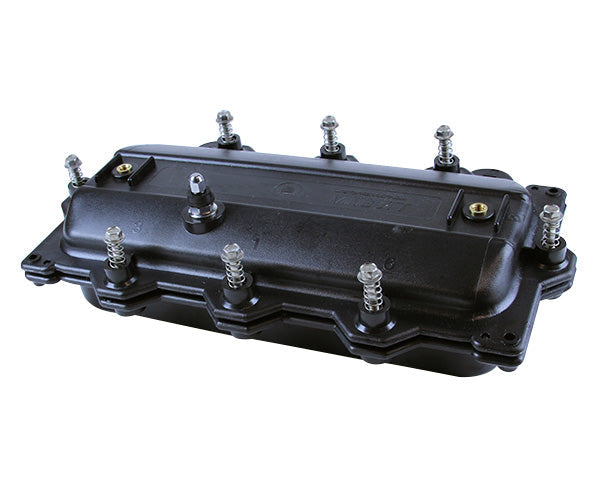

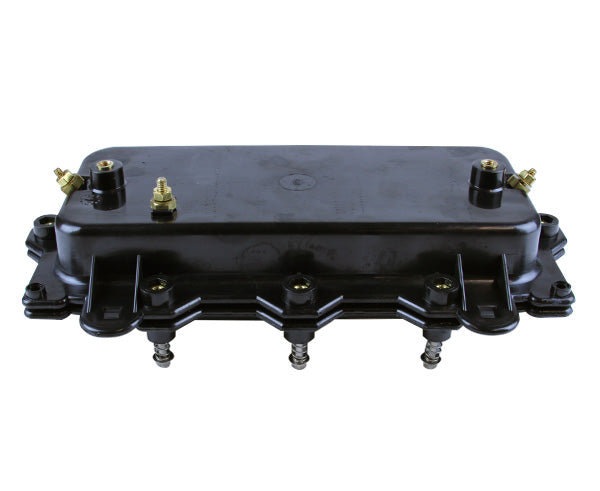

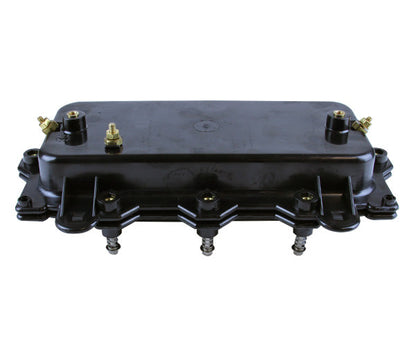

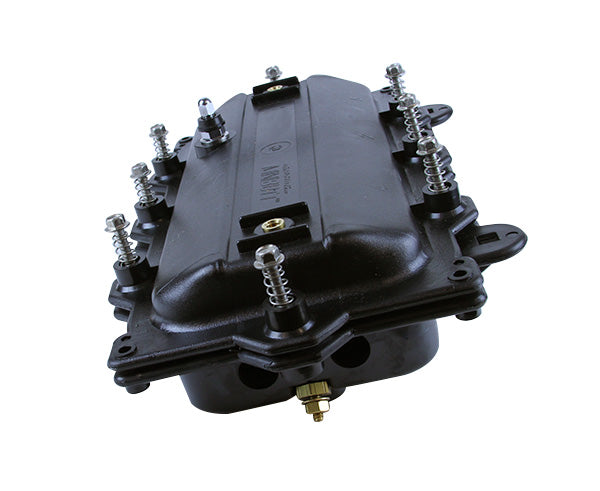

The FB23-4383-24IE MiniButt Fiber Optic Splice Closure is designed for low count fiber splicing and in areas where space is a constraint. The closure incorporates an integrated gasket to prevent water ingress but to allow for ease in access. This unit is supplied with one 12-single fusion splice tray and can accommodate one additional tray. High-tensile plastic housing is resistant to high compression impacts and wide temperature ranges.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- Supports both inline or butt splice configurations.
- Lightweight and compact.

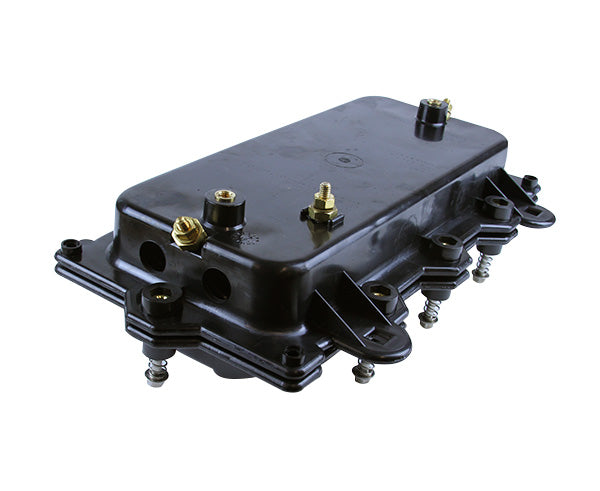

- Up to four cable entries with cable OD range of .3" to .63"
- Suitable for cabinet, aerial, pedestal, wall, and aerial tap mounting.
- Constructed with impact and corrosion resistant materials.

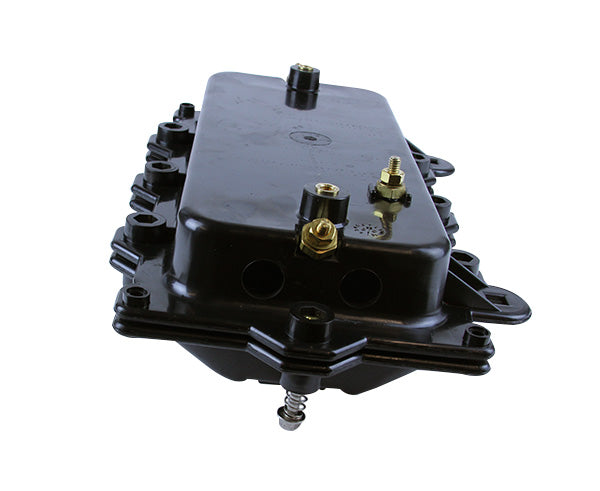

- Integrated "F" pressure testing valve and grounding lugs.
- Up to 24 single fusion or 48 mass fused fibers.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
Capacity |
|
| Splice Trays | (2) 12 Fiber Splice Trays, (1) Included |
Outer Dimensions |
|
| Height | 3.5" |
| Length | 15" |
| Width | 6.5" |
Physical Properties |
|
| Weight | 7.5 lbs |
| Material | 5720U Xenoye |
What’s In The Box
What’s In The Box

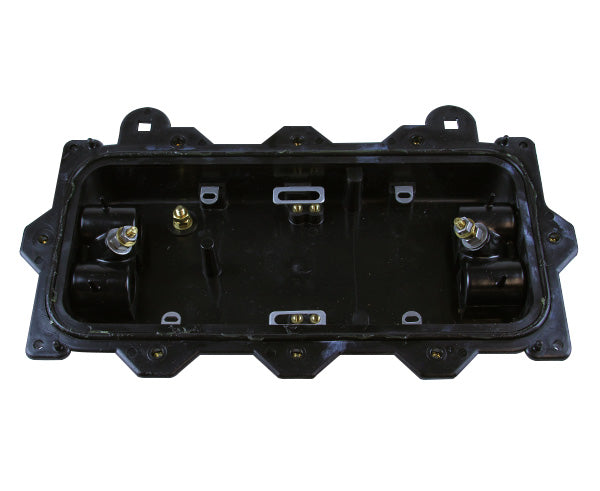

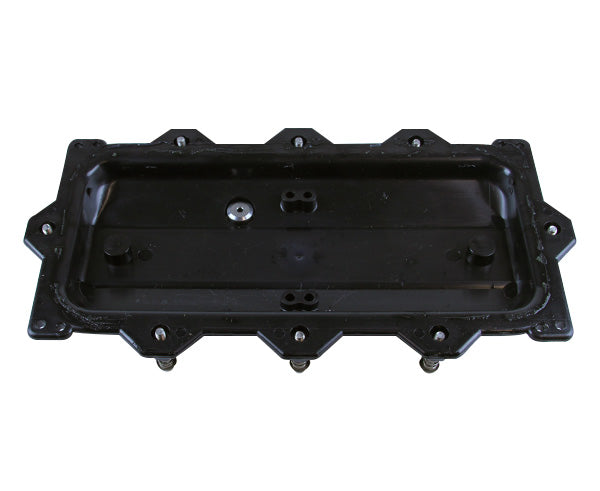

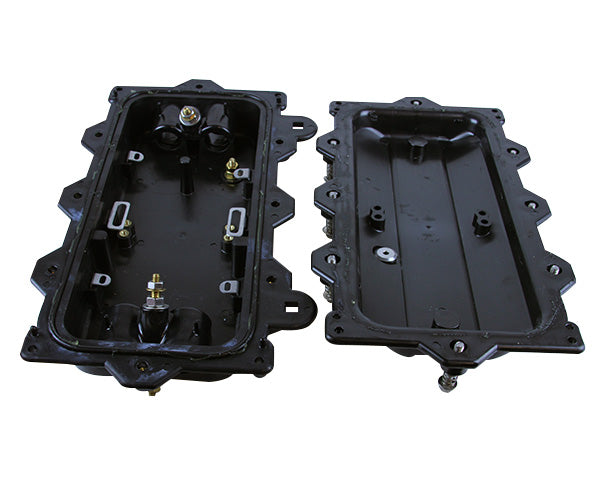

- Qty 1 - Fiber Inline Closure Housing

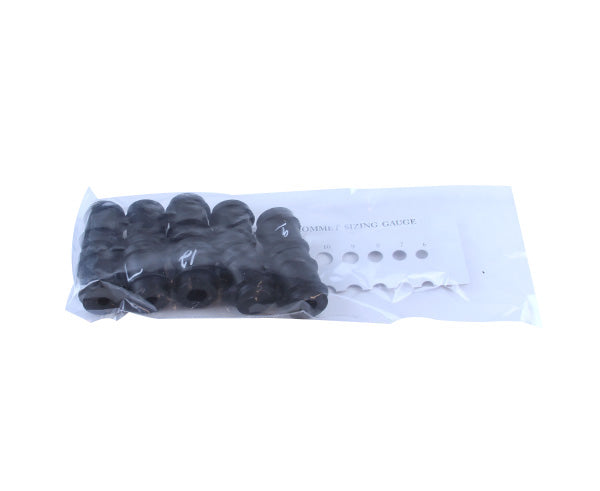

- Qty 1 - Grommet Sizing Gauge
- Qty 6 - Sealing Grommets

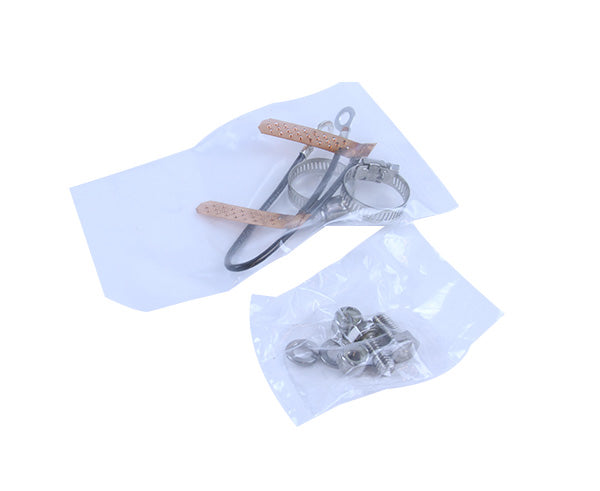

- Qty 2 - Hose Clamps
- Qty 1 - 15 3/8" Ground Strap Pack
- Qty 1 - 4 3/8" Ground Straps Pack

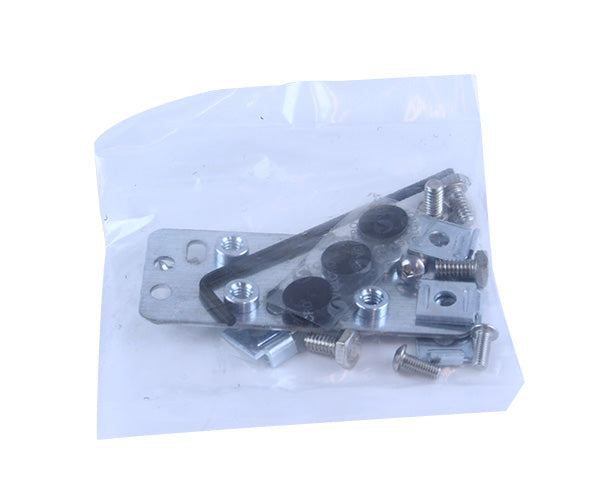

- Qty 1 - Central Strength Member Retention Plate

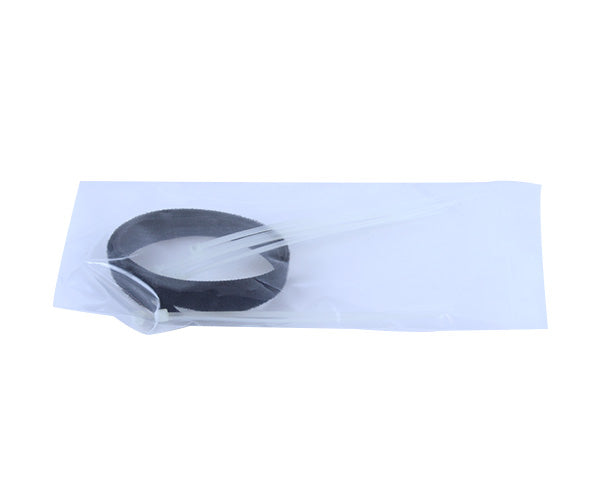

- Qty 1 - Velcro Strap
- Qty 6 - Velcro Dots
- Qty 1 - Miscellaneous Tie Wraps
