Description

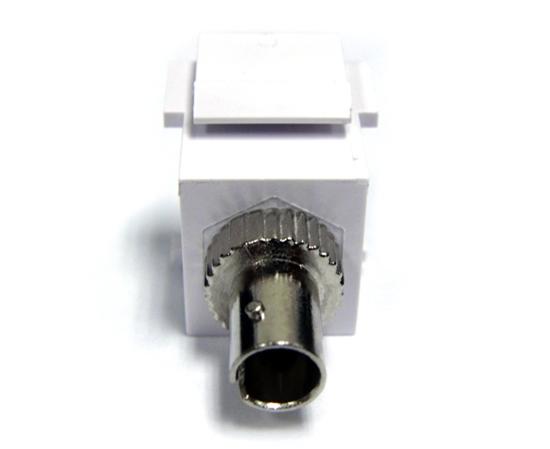

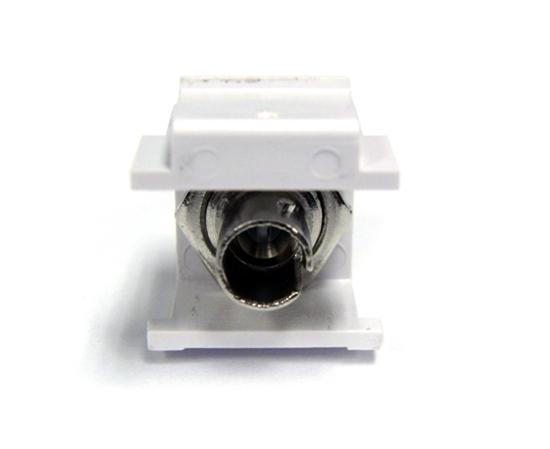

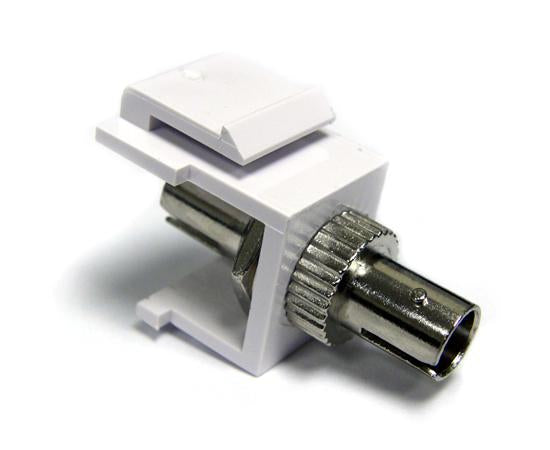

HD Fiber Modular Keystone Jack, ST Simplex MM, White
Optical fiber keystone jacks are a great solution for bringing fiber to the home. Used for voice, data, home networking, audio and video, these ST snap-in keystone inserts provide customizable and flexible options for our wall plate/face plates, surface-mount boxes, and blank patch panels.
Features
Features
- Multi-purpose keystone design.
- Snaps easily into our wall plates, blank high-density patch panels, or mounting box.
- Interchangeable and replaceable.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MATERIAL | |
| PLASTIC | ABS, UL 94V-0 |
| NUT | BRASS, NICKEL PLATING |
| WASHER | STEEL, NICKEL PLATING |
| HOUSING | ZINC ALLOY, NICKEL PLATING |
| DUST COVER | PP, BLACK COLOR |
| SLEEVE | PHOS BRONZE |
| PERFORMANCE | |
| DURABILITY | 500 CYCLES |
| TENSILE STRENGTH | 10KGF |
| INSERTION LOSS | ≤0.3DB |
| OPERATING TEMPERATURE | -20°C TO +70°C |
| STORAGE TEMPERATURE | -40°C TO +80°C |
What's in the Box
What's in the Box
- Qty 1 - Fiber Keystone Jack, Multimode, ST Simplex, High Density, White
