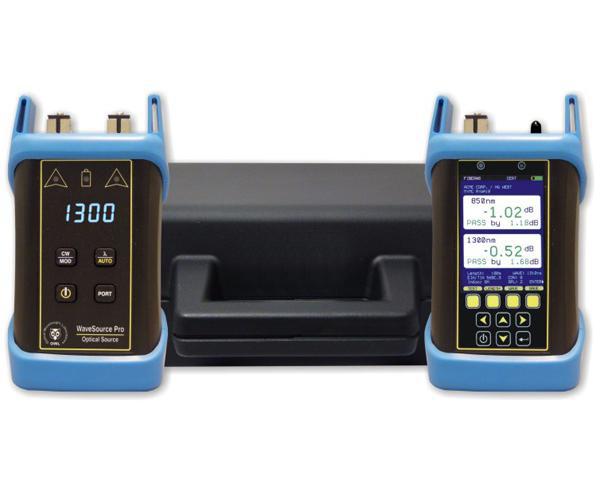

Fiber OWL 7X Quad Test Kit
Fiber OWL 7X Quad Certification Test Kit, Single Mode & Multimode, Tests 850nm/1300nm/1310nm/1550nm, SC Connectors, Color LCD Display.
The Fiber OWL 7X Quad Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.
The Fiber OWL 7X (p/n: F7X) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10,000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software.
Features
Features
- Standards-based link certification for multimode and singlemode fiber links Color LCD indicates PASS / FAIL status based on color
- Unlimited job configurations
- User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
- Auto-wavelength recognition and data storage reduces testing time and human error
- Up to 10,000 test readings can be stored in memory
- Integrated length tester for accurate end-to-end link length measurements, a critical factor for link budget calculation
- Prints official certification reports via OWLView certification software
- Re-chargeable Lithium Polymer battery
- NIST Traceable
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MODEL | FIBER OWL 7 |
| DETECTOR TYPE | InGaAs |
| CALIBRATED WAVELENGTHS | 850, 980, 1300, 1310, 1490, 1550, 1625 |
| MEASUREMENT RANGE | +5 to -70 dBm |
| ACCURACY | ±0.15 dB |
| DISPLAY RESOLUTION | 0.01 dB |
| BATTERY LIFE | Up to 50 hours (Lithium Polymer) |
| DETECTOR CONNECTOR TYPE | Up to 50 hours (Lithium Polymer) |
| DATA STORAGE | Up to 10000 data points |
| DISPLAYED MEASUREMENT UNITS | dBm, dB, mW, µW, nW |
| MODES OF OPERATION | CERT, LOSS, OPM |
| LENGTH TEST RANGE/ACCURACY | up to 25 km / ±2.5 m |
| LENGTH TESTER CONNECTOR TYPE | SC |
| DISPLAY TYPE | Hi-resolution Color LCD |
| AUTO-SHUTDOWN | Yes |
| OPERATING TEMPERATURE | -10 to 55° C |
| STORAGE TEMPERATURE | -30 to 70° C |
| DIMENSIONS | 2.9 x 4.49 x 1.3 in. (72.9 x 112.3 x 31.8 mm) |
| WEIGHT | 12 oz. (373g) |
What's in the Box
What’s in the Box
- Qty 1 - Fiber OWL 7X Optical Power Meter
- Qty 1 - WaveSource Pro Light Source
- Qty 1 - OWLView Certification Software
- Qty 1 - USB Download Cable
- Qty 1 - NIST Traceable Calibration Certificate
- Qty 1 - Carrying Case
- Qty 1 - Protective Rubber Boot
