Comes in a pack of 6 connectors.
Comparable to Corning part number SOC-STU-900-SM.
Description

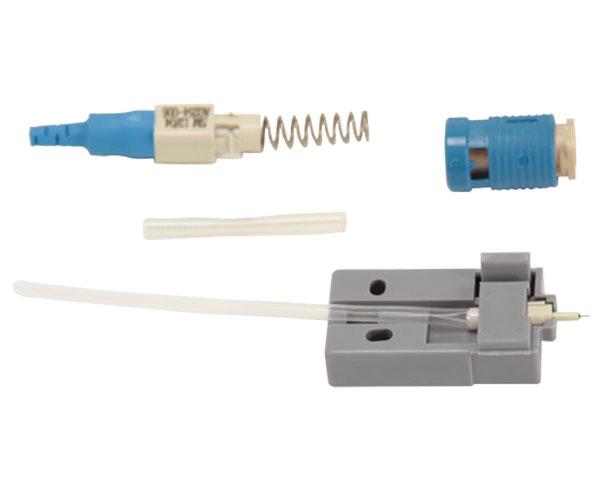

AFL FUSEConnect® Splice-On Connectors, ST Single Mode 9/125, 6 Pack
The FUSEConnect® fusion-spliced, field-installable connectors are uniquely designed and feature only four to five components. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap.
FUSEConnect® connectors utilize a fusion splicer to terminate the connector in the field, addressing return loss concerns present in analog optical networks. This advanced process yields true APC performance for SC/APC and LC/APC configurations, and is compliant to GR-326-CORE. FUSEConnect® is compatible with Fujikura fusion splicers and most other fiber holder-based fusion splicing platforms.
900um boots are included and we also offer 2mm fiber boots and 3mm fiber boots that are sold separately.
Don't forget your FUSEConnect® Tool Kit which includes standard fiber preparation tools and cleaning supplies as well as a FUSEConnect® accessory kit and cord splitter tool. The cord splitter tool is uniquely designed to open the cordage of 2 mm and 3 mm cable allowing the termination of the ST and FC type connectors on simplex cordage.
Features
Features
- Field installable
- No adhesives, crimping or polishing
- True APC performance
- MM compliant to TIA/EIA568C.3
- Compatible with most fusion splicers
Applications
- Connectorization in:
- RF-overlay FTTP networks
- Cable TV backbone networks
- Outside plant
- FTTD
- MDU FTTP Cabling
- Central office connector replacement
- Data center installation
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CONNECTOR TYPE | SC, LC, ST |
| CABLE TYPE | 900 µM, 2 MM, 3 MM, 4.8 MM (SC ONLY) |
| POLISH | APC, UPC, PC |
| INSERTION LOSS | SM: 0.15 DB (AVERAGE), 0.25 DB (MAXIMUM) / MM: 0.10 DB (AVERAGE), 0.25 DB (MAXIMUM) |
| RETURN LOSS | SM: ≤ -65 DB (APC), ≤ -55 DB (UPC) / MM: ≤ -35 DB (PC) |
Additional Information
| Product Videos | |
|---|---|
INSTALLING THE AFL FUSECONNECT™ FUSION SPLICE FIELD-TERMINATED CONNECTORS -- ST 900UM |
What’s In The Box
What’s In The Box
- Qty 6 - Boots
- Qty 6 - Connector Housings
- Qty 6 - Protective Sleeves
- Qty 6 - Ferrule unit Holders
- Qty 6 - Connector Bodies
- Qty 6 - Dust Cap
