Fiber Optic Gel Dome Enclosure

Primus Cable

SKU:NPNB-020-541-00

Splice Capacity 48 Single / 96 Double Splices 96 Single / 192 Double Splices 288 Single / 576 Double Splices 576 Single / 1152 Double Splices

Price: $353.62

*Shipping calculated at checkout

Sale Sold out

Quantity

View full details

Made in USA

Description

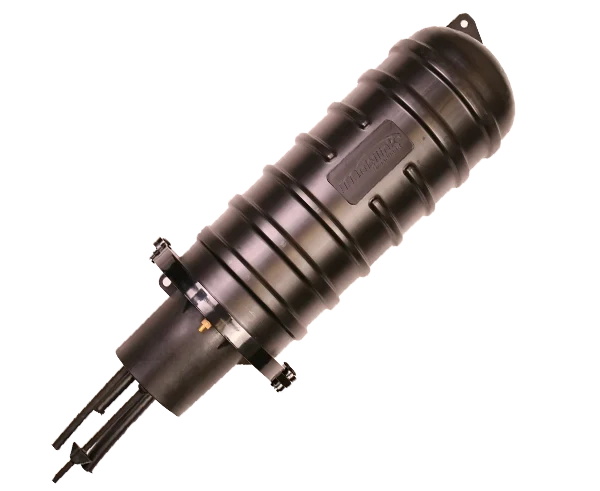

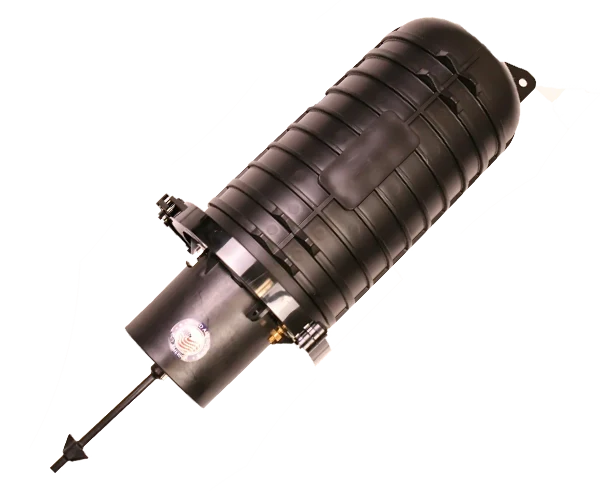

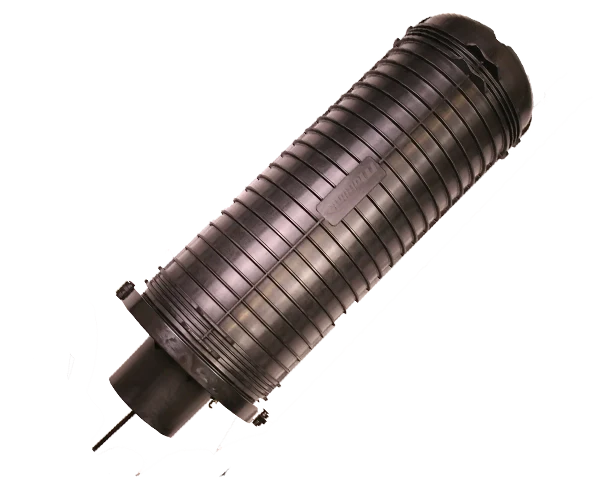

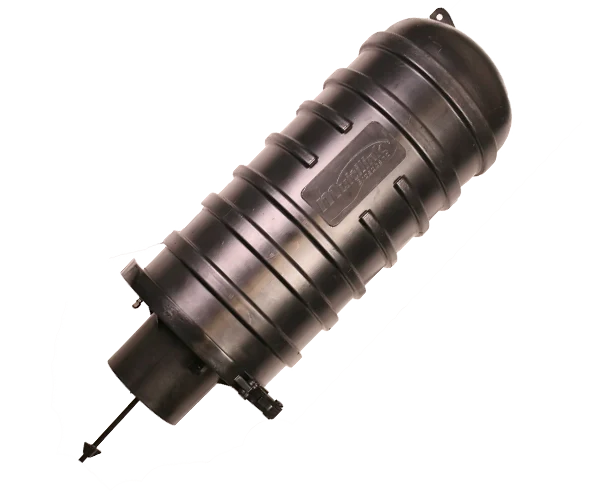

Fiber Optic Gel Dome Enclosure

FIBER SPLICE TRAY NOT INCLUDED

The Fiber Optic Gel Dome Enclosure is an all parts inclusive, hermetically sealed splice closure incorporating our innovative Gel Block Technology. These closures are designed with 6 noncaptive entries, excellent fiber management using an intuitive slack basket and needs no special tools to assemble. Gel Block Technology completely seals around different diameters of cable eliminating the need to “build up” the outside jacket resulting in time savings. The Fiber Optic Gel Dome Enclosure features a gasketed end plate, includes a flash valve, 1 ground lug and 3 cable entry kits.

Features

6 non-captive entries allowing for up to 3 mid-sheath access entries (ring cuts)
Designed for above and below grade use
Gel Block Sealing Technology
Fast and easy assembly with no special tools needed
Can accommodate strand, wall, ADSS and pedestal mounting brackets

Specifications

FIBER OPTIC SPLICE CLOSURES TECHNICAL SPECIFICATIONS
IMAGE	CABLE ENTRY	SPLICE TRAY CAPACITY	SPLICE CAPACITY	CABLE DIAMETER	WEIGHT	MATERIAL	SAFETY STANDARDS
	6 non-captive	(4) 1120-SSTP (4) 1124-SSTP	(48) Single Splices OR (96) Double Stacked (384) Mass Fusion Splice	Min 0.27" Max 0.75"	8 lbs.	Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene	UL 1863 Certified IEC60950 IP68 GR-771
	6 non-captive	(4) 4048-SSTP Splice Trays	(96) Single Splices OR (192) Double Stacked (384) Mass Fusion Splice	Min 0.27" Max 0.75"	5.5 lbs.	Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene	UL 1863 Certified IEC60950 IP68 GR-771
	6 non-captive	(8) 4048-SSTP (8) 4072-SSTP	(288) Single Splices OR (576) Double Stacked (1152) Mass Fusion Splice	Min 0.3" (7.62 mm) Max 1.0" (25.4mm)	10 lbs.	Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene	UL 1863 Certified IEC60950 IP68 GR-771
	6 non-captive	(8) 4144-SSTP	(576) Single Splices OR (1152) Double Stacked (2304) Mass Fusion Splice	Min 0.3" (7.62 mm) Max 1.0" (25.4mm)	17 lbs.	Dome - Polyethylene V-Band - Polycarbonate End Plates - Polypropylene	UL 1863 Certified IEC60950 IP68 GR-771
