Various lead times may apply to this product. Please contact us for more details.
Adapter panels and splice trays NOT included
This fiber patch panel is only compatible with our FB24- adapter panel inserts and our FB25-3999STP12 Splice Trays. To find out more, give us a call or email us.
Description

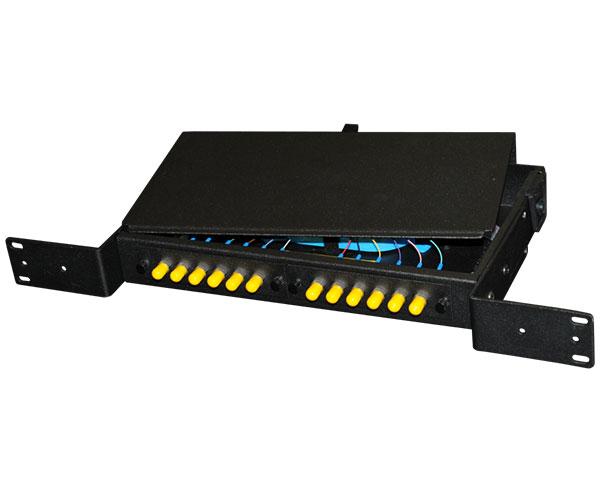

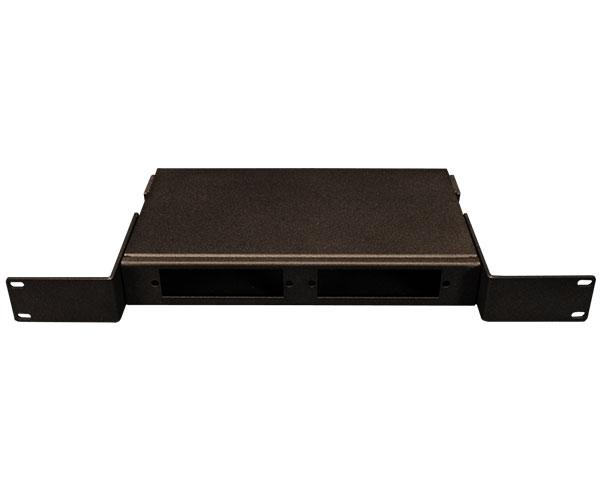

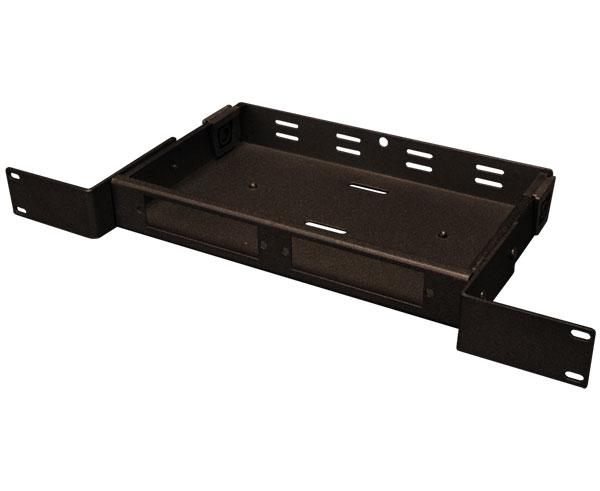

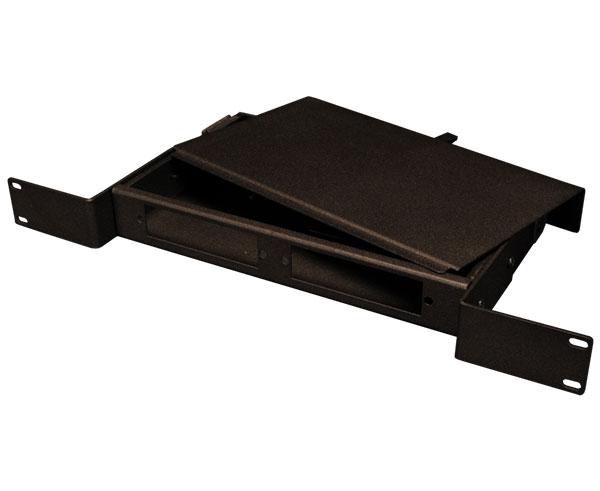

Fiber Patch and Splice Panel, Fixed Top-Load, 1RU, Holds 2 Adapter Panels and 1 Splice Tray with 12 Splice Capacity, Black
This rack mount fiber patch panel is 1 Rack Unit (1RU) in height and made for a 19" or 23" rack width. The fiber housing features a slide-off cover, 2 fixed bulkhead positions and 2 captive grommets for cable entry. Included are two universal 19™ or 23™ mounting supports. The fiber enclosure can hold a 12 fiber splice tray (FB25-3999STP12), sold separately. The main unit is offset 15/16" from the front of the mounting brackets.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- Can be ordered fully terminated with cabling or pigtails.
- Mounting hardware supplied for 19" or 23" mounting.
Specifications
Capacity
Splice Trays: (1) 12 Fiber Splice Tray (FB25-3999STP12 - Sold Separately)
Panels: (2) FB24 Series Adapter Panels (Sold Separately)
Dimensions
Depth: 7.68"
Height: 1.72"
Width: 12.25"
Weight: 5.1 lbs
*Dimensions are given excluding brackets
Physical Properties
Color: Black
Material: Powder Coated Steel
Spec Sheet
What's in the box
- (1) Rack Mount FDU 1RU
- (2) universal 19™ or 23™ mounting supports
