Adapter panels and splice trays NOT included
This fiber patch panel is only compatible with our FB24 adapter panel inserts and our FB25-3401STP36 Splice Trays. To find out more, give us a call or email us.
Description

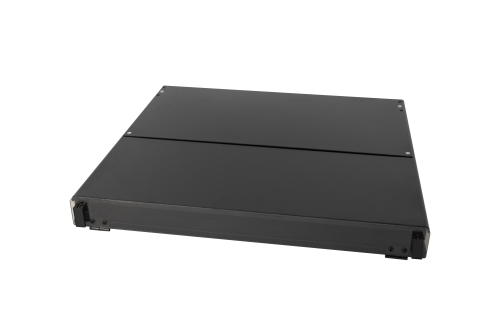

Fiber Patch and Splice Panel, High Density, Slide-Out, 1RU, Holds 3 Adapter Panels and 2 Splice Trays, Up to 72 Splices, Black

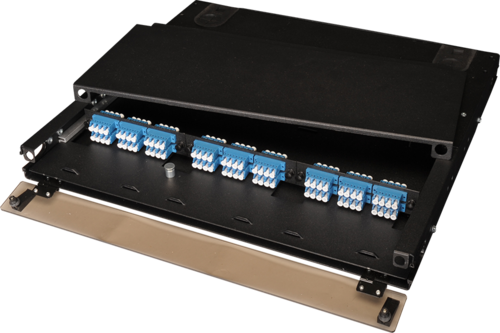

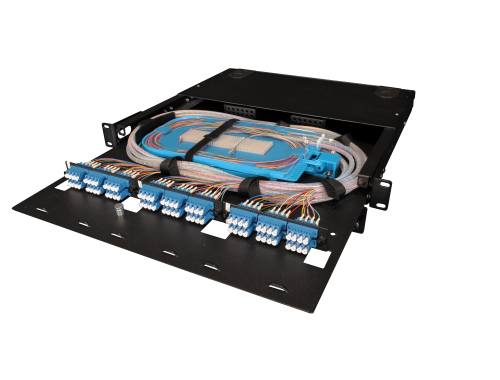

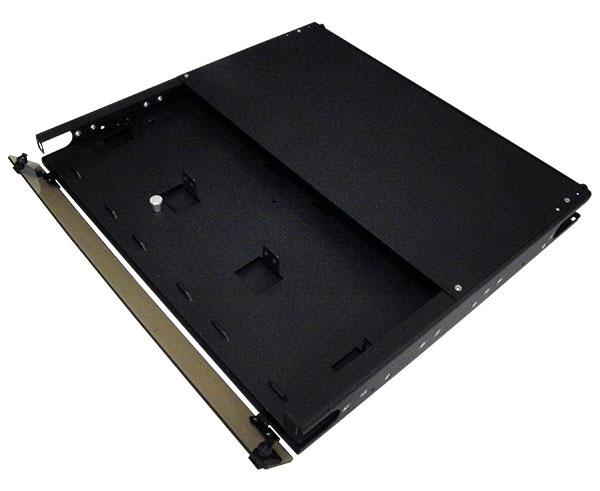

This rack mount fiber patch panel is a 1 Rack Unit (1RU) high-density distribution unit that provides high-density fiber capacity of up to 72 fibers when utilizing three of the LC Quad adapter panels shown and two of our 36 fiber splice trays (not included). The slide-out master panel tray locks into the retracted and fully extended positions. The fiber housing has a split top design, allowing for easy termination access, while bridge lances that run along the front of the unit provide easy tie-down ability for fiber management entering or exiting the fiber enclosure.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- 2 Splice Tray Capacity (FB25-3401STP36 - Sold Separately)

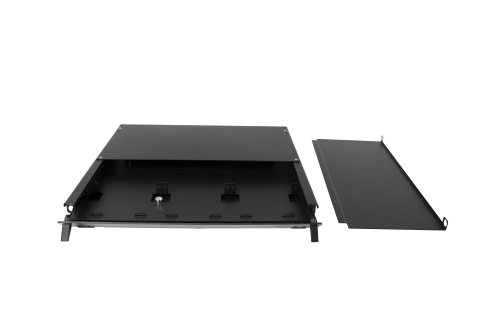

- Convenient split-top design
- Durable powder coat finish
- Increased fiber management
- Locking master panel
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Capacity | |
| Splice Trays | (2) 36 Fiber Splice Trays (FB25-3401STP36 - Sold Separately) |
| Panels |
(3) LC Quad Panels (Sold Separately) • APC Single Mode Panel (FB24-4025LCA24) • UPC Single Mode Panel (FB24-4022LCC24) • PC Multimode OM1 Panel (FB24-4021LCB24) • PC Multimode 10G OM3/OM4 Panel (FB24-4024LCG24) |
| Outer Dimensions | |
| Depth | 16" |
| Height | 1.75" |
| Width | 17" |
| Weight | 22lbs |
| Physical Properties | |
| Material | 0.060" Powder Coated Steel |
| Color | Black |
What's in the Box
What’s in the Box
- Qty 1 - Fiber Patch and Splice Panel, High Density, Slide-Out, 1U, 3 Adapter Panel Capacity
