Various lead times may apply to this product. Please contact us for more details.
Adapter panels and splice trays NOT included
This fiber patch panel is only compatible with our FB24 adapter panel inserts and our FB25-3401STP36 Splice Trays. To find out more, give us a call or email us.
Description

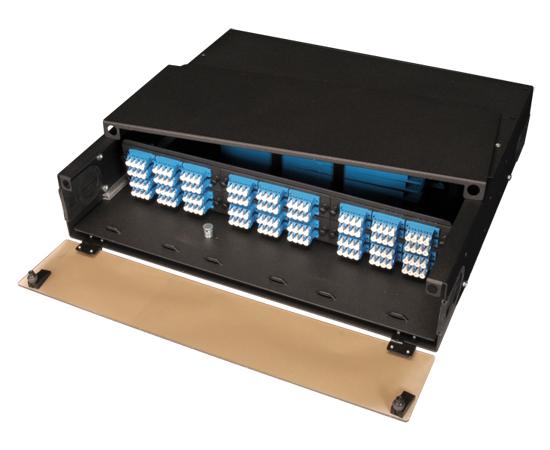

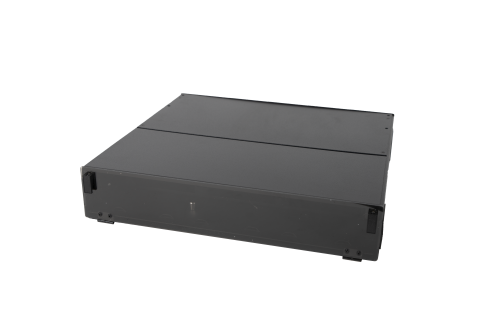

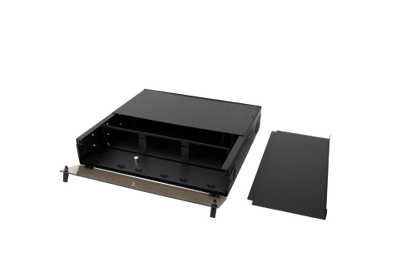

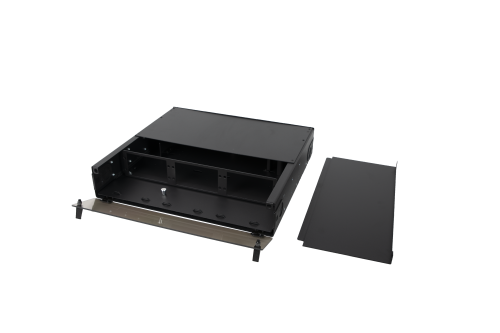

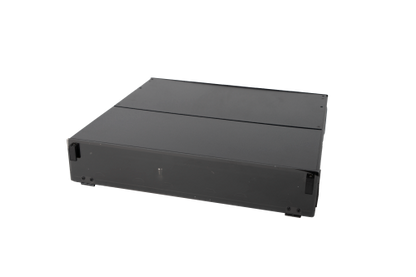

Fiber Patch and Splice Panel, High Density, Slide-Out, 2RU, Holds 3 Adapter Panels and 4 Splice Trays, Up to 144 Splices, Black
This rack mount fiber patch panel is a 2 Rack Unit (2RU) high density distribution unit that provides high density fiber capacity of up to 144 fibers when utilizing six of the LC Quad adapter panels shown and four of our FB25-3401STP36 - 36 fiber splice trays (not included). The slide out master panel tray locks into the retracted and fully extended positions. The fiber housing has a split top design, allowing for easy termination access while bridge lances that run along the front of the unit provide easy tie down ability for fiber management entering or exiting the fiber enclosure.
Features
Features
- 144 splice capacity
- Convenient split-top design
- Durable powder coat finish
- Increased fiber management
- Locking master panel
Specifications
Specifications
CapacitySplice Trays: (4) 36 Fiber Splice Trays (FB25-3401STP36 - Sold Separately)
Panels: (6) LC Quad Panels (Sold Separately)
APC Single Mode Panel (FB24-4025LCA24)
UPC Single Mode Panel (FB24-4022LCC24)
PC Multimode OM1 Panel (FB24-4021LCB24)
PC Multimode 10G OM3/OM4 Panel (FB24-4024LCG24)
Depth: 15.94"
Height: 3.5"
Width: 17"
Color: Black
Material: 0.060" Powder Coated Steel
