Adapter panels and splice trays NOT included
Comparable to Corning's CCH-01U
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-3995STP12 splice trays. To find out more, give us a call or email us.

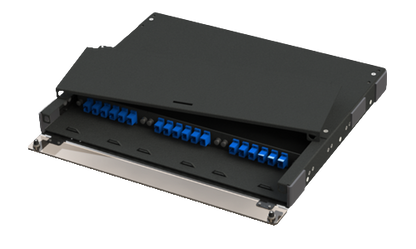

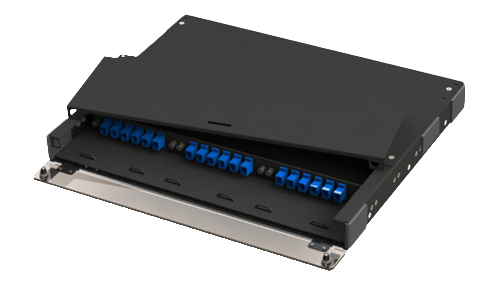

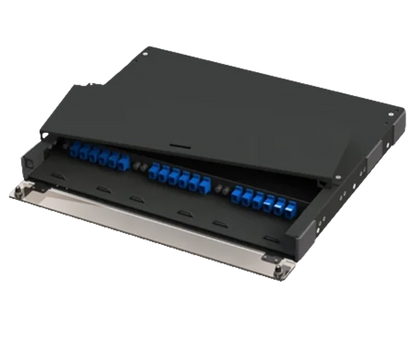

Fiber Patch Panel, Slide-Out, 1RU, Holds 3 Adapter Panels, Up to 36 splices, Black

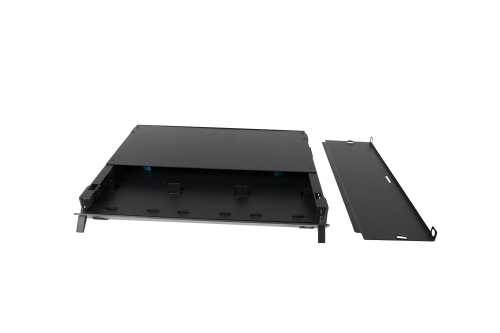

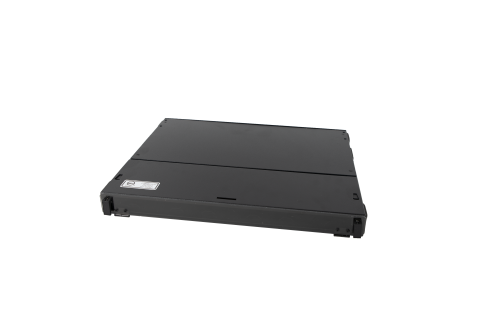

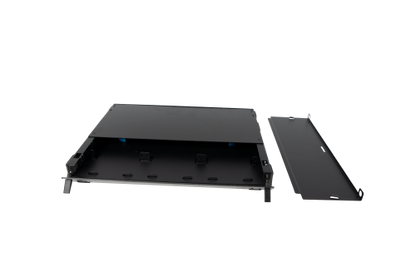

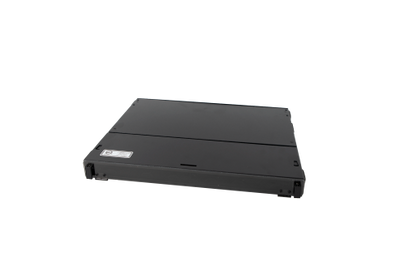

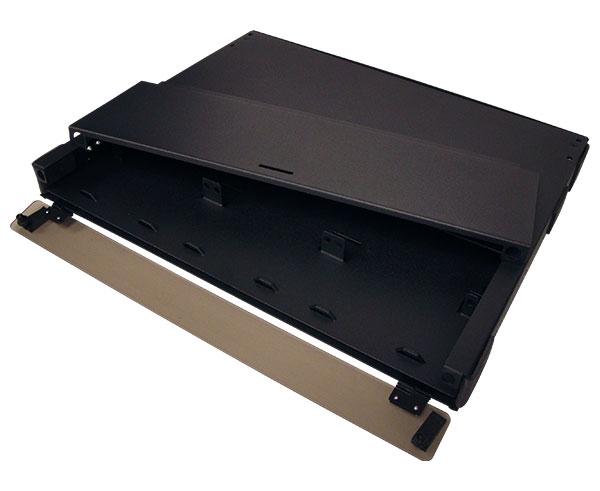

This rack mount fiber patch panel is a 1 Rack Unit (1RU), 3 termination panel, 19" and 23" rack mount fiber distribution unit designed to support patching and splicing in one unit, up to 36 fibers. The fiber housing has a slide out master panel with an integrated tray stop to prevent over extension of fiber cables. The drawer slides are nylon which makes the drawer slide in and out easier. The fiber enclosure also has a two-piece top and a swell latch door to allow for easy access to the adapter panels. The FB23-5845RT3 is one of a family of units that support fiber terminations in rack mount applications.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
- Can be ordered fully terminated with cabling or pigtails.
- Removable top for ease of access.
- Slide out tray designed to support storage of splice trays.
- Supplied with universal mounting hardware for 19" or 23" mounting.
Splice Trays: 3x 12 Fiber Splice Trays (FB25-3995STP12 - Sold Separately)
Panels: 3x LGX Panels (Sold Separately)
Weight: 19 lbs
Material: 0.060" Powder Coated Steel
