Please note that due to availability, you will receive a fiber patch panel that is loaded with multimode SC couplers, but we will include the single mode couplers for you to simply swap out and make this a single mode fiber patch panel.

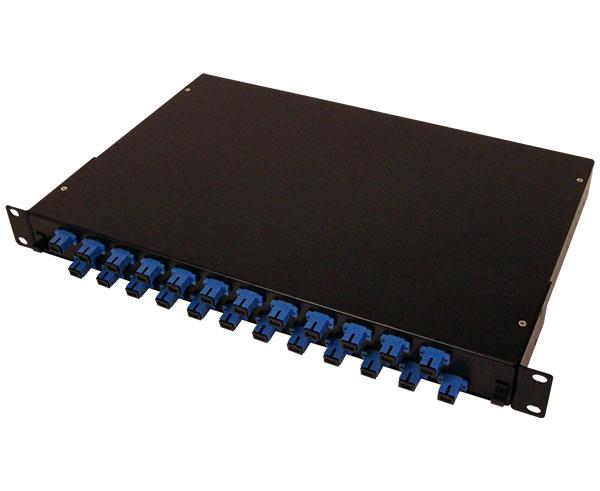

24 Port 1U Fiber Patch Panel Preloaded with Simplex Single Mode SC Connectors
This rack mount fiber patch panel is designed to fit on a standard 19" rack and provide optimal protection for your fiber optic applications. There are two cable entry points on the back of the fiber housing fitted with rubber grommets to protect the fiber optic cable from damage. Along with being loaded with 24 SC connections, each fiber enclosure includes one cable routing spool and two 12 fiber splice trays. Also included are zip ties, cable routing clamps, mounting screws, fiber splice sleeves and installation instructions.
To make this a complete unit ready for fusion splicing and patching out your existing or newly purchased fiber optic cable, don't forget to add two 12 strand SC fiber pigtails to your order.
Splice Trays: (2) 12 Fiber Splice Tray (Included)
Connections: 24 SC Simplex Connections
Tray Material: Aluminum
