Adapter panels and splice trays NOT included.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and our FB25-3996STA24 Splice Trays. To find out more, give us a call or email us.
Description

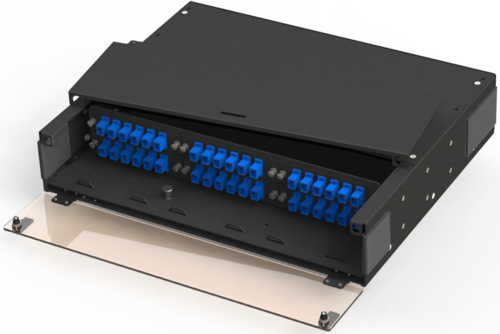

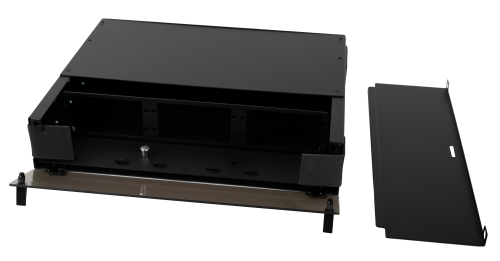

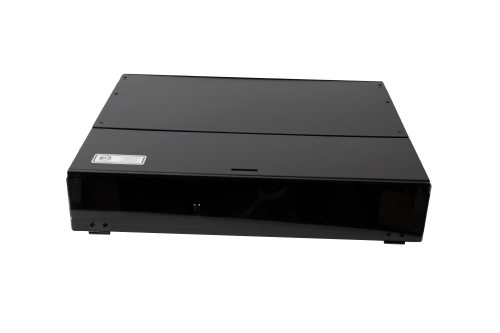

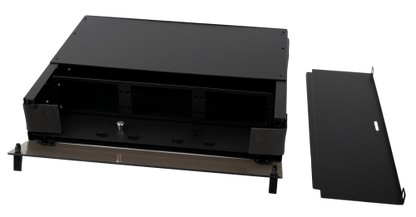

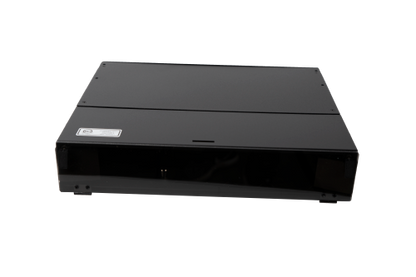

Fiber Patch Panel, Slide-Out, 2RU, Holds 6 Adapter Panels, Up to 72 Splices, Black
This rack mount fiber patch panel is 2 Rack Units (2RU) high, has a 6 termination panel capacity, and fits 19" and 23" rack mount fiber distribution units designed to support patching and splicing in one enclosure. The fiber housing has a slide out master panel with an integrated tray stop to prevent over extension of fiber cables. The fiber enclosure also has a two-piece top and swell latch door to allow for easy access to the adapter panels. The FB23-4106RT6 is one of a family of units that support fiber terminations in rack mount applications.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
Features
- Can be ordered fully terminated with cabling or pigtails.
- Removable top for ease of access.
- Slide out panel design supports storage of splice trays.
- Supplied with mounting hardware for 19" or 23" mounting.
Specifications
Capacity |
|
|---|---|
| Splice Trays | (3) 24 Fiber Splice Trays ( FB25-3996STA24 - Sold Separately) |
| Panels | (6) LGX Panels (Sold Separately) |
Outer Dimensions |
|
|---|---|
| Weight | 22lbs |
| Depth | 14.57" |
| Height | 3.47" |
| Width | 17" |
Physical Properties |
|
|---|---|
| Material |
0.060" Powder Coated Steel |
| Color | Black |
