Adapter panels and splice trays are NOT included.
This fiber patch panel is only compatible with our FB24 adapter panel inserts and FB25-6196STP36 splice trays.
Description

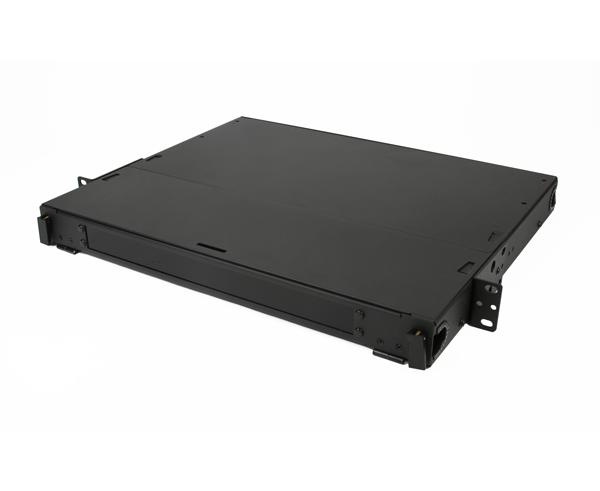

Rack Mount Fiber Distribution Patch Panel Enclosure, Slide-Out, 1RU, Holds 3 Adapter Panels, Up to 72 splices, Black

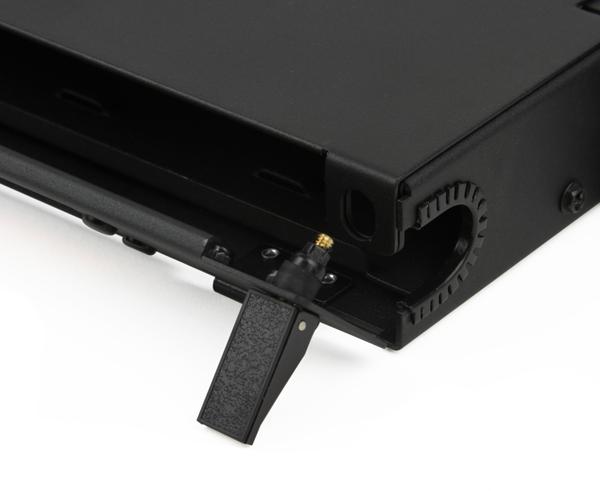

This rack mount fiber patch panel is a 1 Rack Unit (1RU) and designed to support patching and splicing in one unit, up to 72 fibers (with 2x FB25-6196STP36). The fiber housing has a slide-out master panel with an integrated tray stop to prevent overextension of fiber cables. The fiber enclosure also has a two-piece top and swell door latches to allow for easy access to the adapter panels. The FB36-6153R3 is one of a family of units that support fiber terminations in rack mount applications.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- Can be ordered fully terminated with cabling or pigtails.

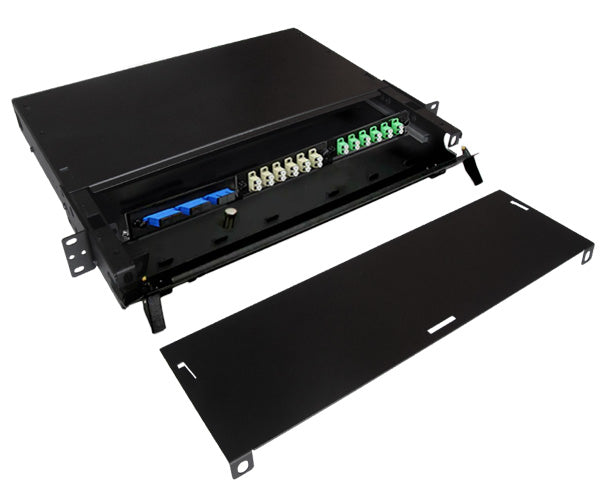

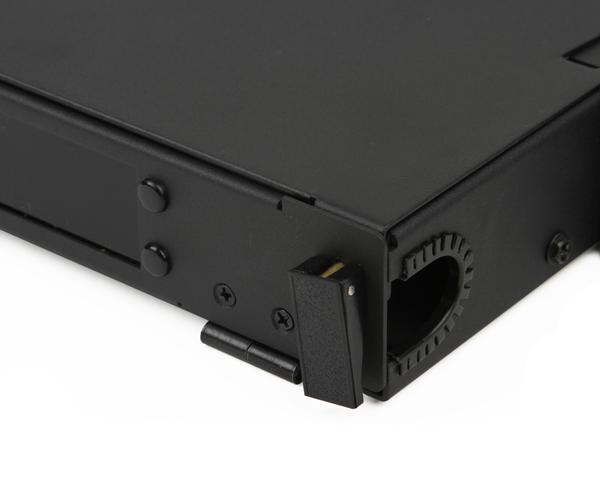

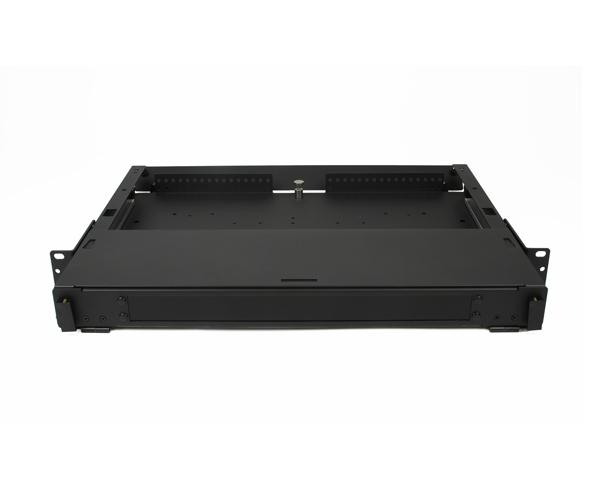

- Removable 2-piece top and swell door latches for ease of access.

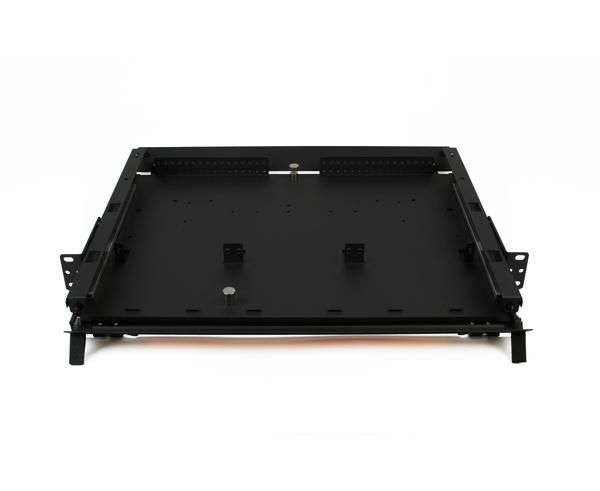

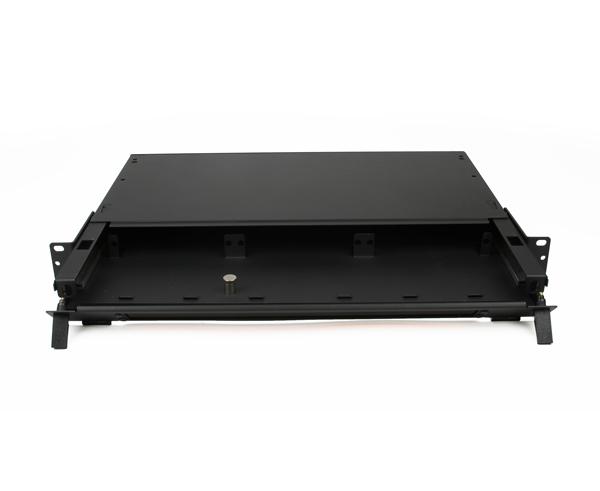

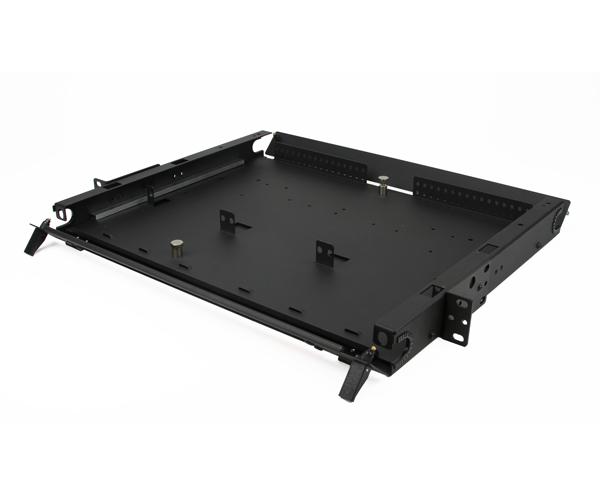

- Slide-out tray designed to support storage of splice trays.
- Supplied with universal mounting hardware for 19" mounting.
- Holds 3 LGX Adapter Panels (Only compatible with our FB24-'s)
- Fits up to 72 fiber splices using two of our FB25-6196STP36 36 Fiber Splice Trays
 |
 |
 |
 |
| FB36-6153R3 | FB36-6260R6 | FB36-6386R12 | |
| Unit Size | 1U | 2U | 4U |
| Dimension | 1.75” x 17” x 14” | 3.50” x 17” x 14” | 6.93” x 17” x 14” |
| Panel Material | 16 Gauge Steel | 16 Gauge Steel | 16 Gauge SPCC Steel |
| Panel Capacity | 3 LGX Adaptor Panels | 6 LGX Adaptor Panels | 12 LGX Adaptor Panels |
| Max. Fiber Count | 72 Fibers | 144 Fibers | 288 Fibers |
| Accessibility | Slide out tray | Slide out tray | Slide out tray |
| Integrated Cable Management | ✓ | ✓ | ✓ |
| Slack Management Spool |
—
|
✓ | ✓ |
| Pre-Termination Option | ✓ | ✓ | ✓ |
| Compatible with |
FB24 adapter panel inserts FB25-6196STP36 splice trays FB43-1300-12FSM MTP® Elite Cassette FB43-1301-12FMM MTP® Elite Cassette |
FB24 adapter panel inserts FB25-6196STP36 splice trays FB43-1300-12FSM MTP® Elite Cassette FB43-1301-12FMM MTP® Elite Cassette |
FB24 adapter panel inserts FB25-6196STP36 splice tray FB43-1300-12FSM MTP® Elite Cassette FB43-1301-12FMM MTP® Elite Cassette |
Spec Sheet

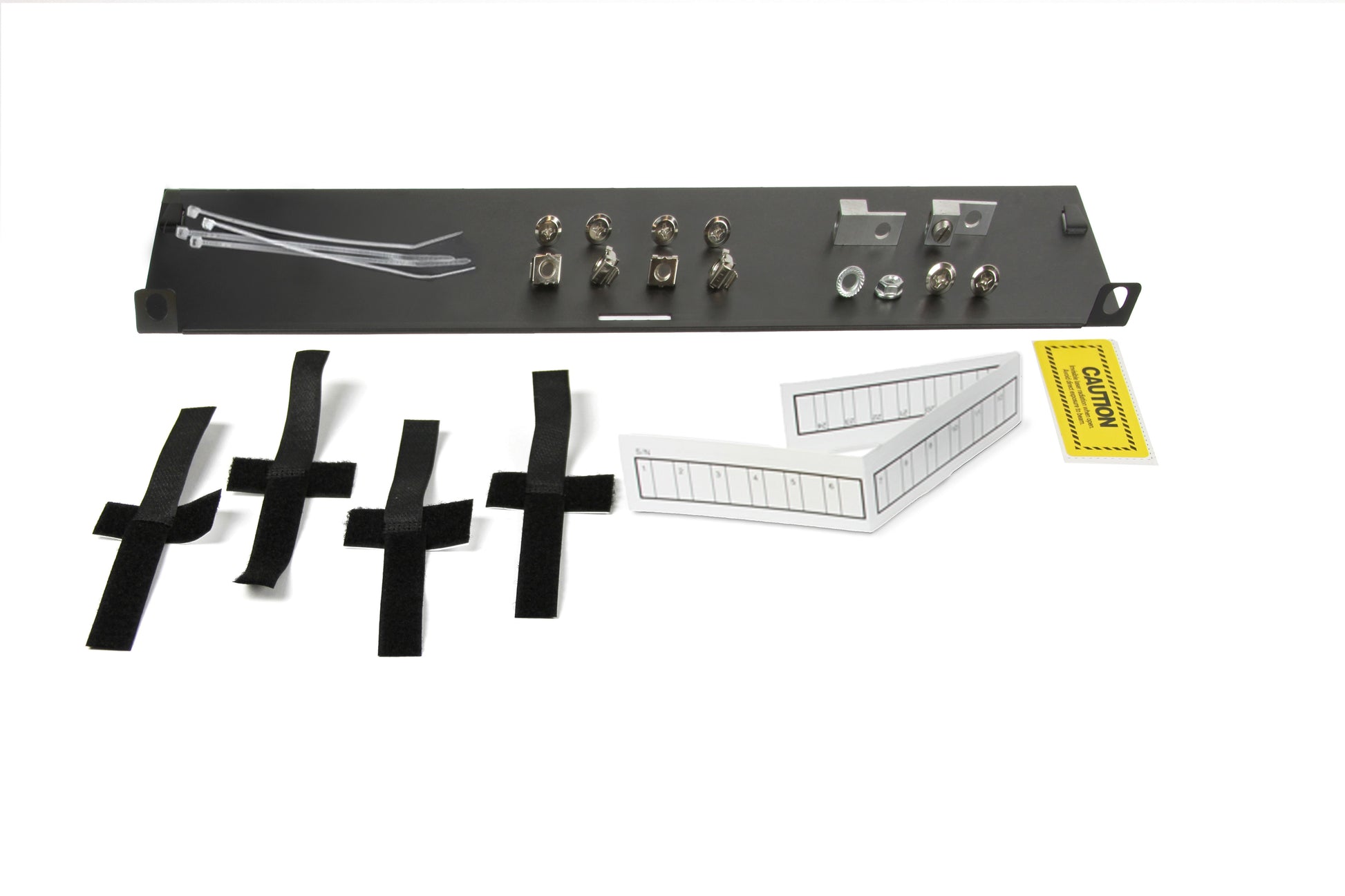

What's in the Box?
- Qty 1 FB36-6153R3 Patch Panel
- Qty 4 Hook & Loop Straps
- Qty 4 Cage Nuts
- Qty 6 Rack Screw
- Qty 2 Hex Nuts
- Qty 4 Zip Ties
- Qty 2 Ground Lugs
