This splice tray is only compatible with our FB23 fiber patch panels and FB23 wall mount enclosures. To find out more, give us a call or email us.

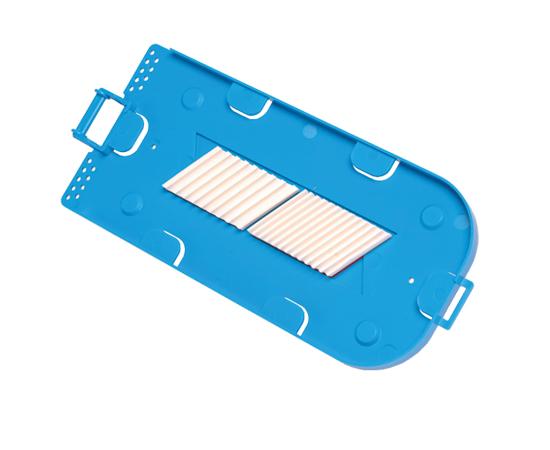

24 Single Fusion Fiber Splice Tray
Compatible with our FB23 Fiber Patch Panels and Wall Mount Enclosures
The FB25-4000STP24 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is equipped with a full set of organizers to support single and mass fusion splicing and is fully compliant to industry specification Telcordia GR-769, Splice Organizer Assemblies for Optical Fibers.
The FB25-4000STP24 clear covered splice tray is designed to be installed into the Optical Fiber Splice Closures as well as selected Fiber Rack Mounted FDUs. The tray is one of a family of units that support fiber splicing.
This tray is ideal for small to medium sized fiber splicing projects. This tray cradles up to 24 spliced fiber optic wires.
- 16 Mechanical splice capacity.
- 24 Single fusion splice capacity.
- 48 Dual stacked single fusion splice capacity.
- 96 Mass fusion splice capacity.
- Adhesive backed fiber insert holders and assorted cable ties included.
- Provides protection and organization of fiber splices.
Single Fusion: 24 splices
Dual Stacked Single Fusion: 48 splices
Mechanical: 16 splices
Mass Fusion: 96 splices
Color: Blue base with clear cover
