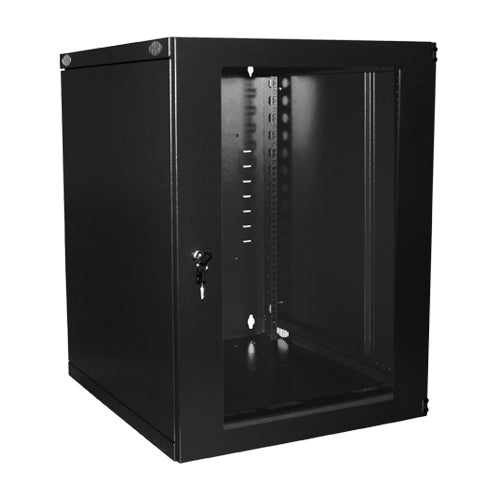

Single Fixed Wall Mount Cabinets
Our Fixed Wall Mount Cabinets are a perfect solution for a variety of networking, AV, and security installations. Compatible with all standard 19-inch EIA equipment, these cabinets are packed with features that make setting up and maintaining equipment a breeze, including a lockable, removable, and reversible front door, removable side panels, and a removable 12" x 12" rear panel for in-wall cable entry.
Constructed of cold rolled and powder-coated 19-gauge steel, these fixed wall mount cabinets have a maximum load capacity of 132 lbs. and are available in 9U, 12U, and 15U configurations. Ships unassembled and flat packed for easy on-site handling.
Features
Features
- Cable entry on top, bottom and back
- Lace points to reduce cable clutter
- Lockable acrylic front door is removable and reversible
- Removable back panel and side panels
Specifications
Specifications
| Product Type | Fixed Wall Mount Cabinet |
| Frame Material | Heavy Gauge Cold Rolled Steel |
| Finish | Black Powder Coat |
| Rack Unit Quantity | 9U, 12U, or 15U |
| Dimensions (HxWxD) - 9U | 18.11"x 21.26” x 23.62” |
| Dimensions (HxWxD) - 12U | 23.35"x 21.26” x 23.62” |
| Dimensions (HxWxD) - 15U | 28.60"x 21.26” x 23.62” |
| Front Door | Removable, Reversible, & Lockable Steel Frame With Full Panel Acrylic Window, Opens Full 180º |
| Rear Panel | 12" x 12" Removable Panel, Wall Mounting Keyholes Spaced 16" Apart, Multiple Lace Points |
| Side Panels | Solid, Full Height & Removable |
| Top Panel | Ventilation Holes For Optional Fan Unit (6) Knock-Out Cable Entry Holes Located at Back: (2) 3/4, (2) 1", and (2) 2" Knockouts |
| Bottom Panel |
Ventilation Holes for Optional Fan Unit (6) Knock-Out Cable Entry Holes Located at Back: (2) 3/4, (2) 1", and (2) 2" Knock-Outs |
| Equipment Support |
Adjustable Rail Depth (3.25"), 1.75" RU Spacing, Marked & Numbered on Rails; 19" W, EIA-310-D |
| Grounding |
14 AWG Ground Wire Connects Doors & Side Panels To Cabinet Frame |
| Static Loading Capacity |
132 lbs |
| Compliance & Standards |
ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
Additional Information
Additional Information
Security & Protection
- Locking doors and side panels prevent unauthorized access to equipment
- Doors and side panels are grounded to the cabinet frame
Flexibility
- Multiple cable entry options provide greater flexibility during installation
- Mounting rails are adjustable to match a variety of equipment sizes
- Front door and side panels are removable for convenient access to equipment
Multi-Use
- Available in three sizes to fit in a variety of environments where space is limited
- Top and bottom panel vents to optimize cooling of equipment
- Adaptable for use in network, security and audio/video installations
What's in the box?
What's in the box?
- Qty 1 - Package of Fixed Wall Mount Cabinet
- Qty 48 - 10-32 Mounting Screws & Washers
- Qty 1 - Grounding Kit
- Qty 1 - Paper Mounting Template
- Qty 2 - Keys
