Fujikura 31S Fusion Splicer with CT08 Cleaver

Description

Fujikura 31S Fusion Splicer

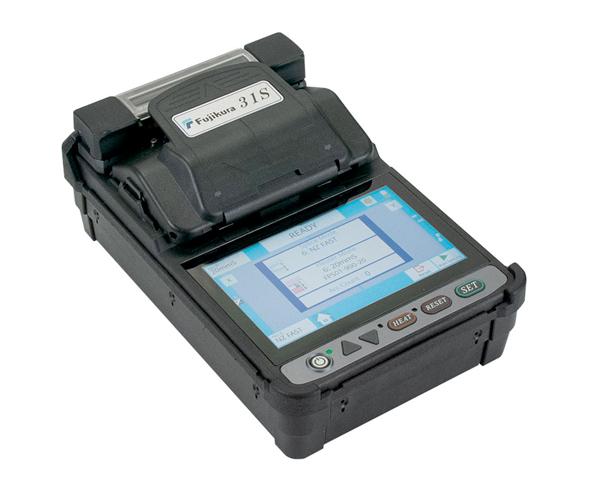

The Fujikura 31S is a fully ruggedized, active cladding alignment fusion splicer. The dualcamera active V-groove alignment system provides consistent splicing performance in the most challenging conditions. A 6-second splice time and 25-second shrink time offers unmatched speed and productivity, while an easy-to-use touchscreen monitor provides simple and intuitive menu navigation. Interchangeable sheath clamps or fiber holders provide versatility for user preference, and compatibility with fusion-installable connectors. The extended-life battery is rated for up to 200 splice and heat cycles. Long-life electrodes, lasting 5,000 splices, help minimize downtime for replacement and stabilization. The large 5" monitor provides a crystal clear image, even in the brightest sunlight. Software updates are accomplished via the internet allowing users to quickly update their software as new splice programs become available.

Backed by the best service team in the industry, the Fujikura 31S is the ideal splicer to use when portability, ruggedness, and reliability are needed for your splicing application.

Features

• Two-camera active v-groove alignment
• 5" touchscreen monitor
• Interchangeable sheath clamps and fiber holders
• Fully ruggedized for shock, moisture and dust resistance
• Extended-life electrodes, 5,000 splices, exchangeable without tools
• Long-life battery (200 splices/shrinks per charge)

Specifications

Additional Information

Fusion Splicing Process

The process of fusion splicing normally involves using localized heat to melt or fuse the ends of two optical fibers together. The splicing process begins by preparing each fiber end for fusion.

Stripping the Fiber

Stripping is the act of removing the protective polymer coating around optical fiber in preparation for fusion splicing. The splicing process begins by preparing both fiber ends for fusion, which requires that all protective coating is removed or stripped from the ends of each fiber. Fiber optical stripping can be carried out by a special thermal fiber stripper tool that uses hot sulphuric acid or a controlled flow of hot air to remove the coating. There are also mechanical fiber strippers used for stripping fiber which are similar to copper wire strippers. Fiber optical stripping and preparation equipment used in fusion splicing is commercially available through a small number of specialized companies, which usually also designs machines used for fiber optical recoating.

Cleaning the Fiber

The bare fibers are cleaned using alcohol and wipes.

Cleaving the Fiber

A fiber cleaver is then used to cleave the fiber using the score-and-break method so that its endface is perfectly flat and perpendicular to the axis of the fiber. The quality of each fiber end is inspected using a microscope. In fusion splicing, splice loss is a direct function of the angles and quality of the two fiber-end faces. The closer to 90 degrees the cleave angle is the lower optical loss the splice will yield.

Splicing the Fibers

Current fusion splicers are either core or cladding alignment. Using one of these methods the two cleaved fibers are automatically aligned by the fusion splicer in the x,y,z plane, then are fused together. Prior to removing the spliced fiber from the fusion splicer, a proof-test performed to ensure that the splice is strong enough to survive handling, packaging and extended use. The bare fiber area is protected either by recoating or with a splice protector. A splice protector is a heat shrinkable tube with a strength membrane.

What's In The Box

• Fujikura 31S Fusion Splicer
• CT08 Cleaver S31A Sheath clamps (installed)
• SP-31 Set Plates
• ADC-19A AC Adapter
• BTR-11 Battery Pack (installed)
• FH-70-250 Fiber Holders
• FH-70-900 Fiber Holders
• ACC-09 Power Cord
• ELCT2-16B Spare Electrodes (pair)
• Operation Manual on CD
• Quick Reference Guide
• SS-03 Single Fiber Stripper
• CC-35 Transit Case
