Ground Clamp HD
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.
Features
Bronze Ground Clamps (GS)
- Bronze ground clamp for bonding bare copper wire to water pipe or for use as a water meter shunt.
- Zinc plated steel screws.
Bronze Ground Clamps (GSBS)
- Used to connect bare copper wire to copper water pipe, ground rods and rebar for bonding.
- Assembled with copper alloy screws and UL Listed for direct burial in earth and concrete.
- Can accommodate ground wires up to 2 AWG.

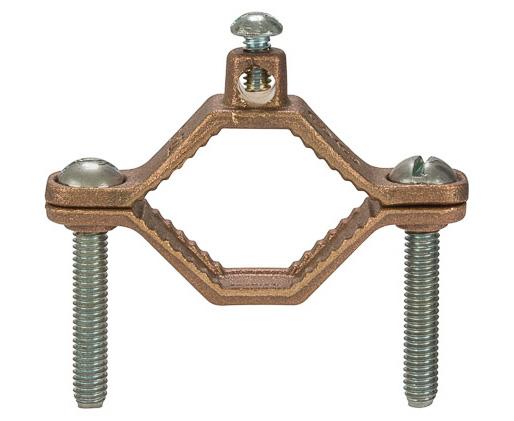

Heavy Duty Water Pipe Clamps (G)
- Bronze water pipe clamps with serrated head.
- Cast bronze body with plated steel screws.
- Designed for use alone or with heavy duty bronze adapters.
Specifications
| Part# | Certification | Pipe Size (IPS) (in.) | Ground Wire Range (in.) | Length (L) (in.) | Width (W) (in.) | Height (H) (in.) |

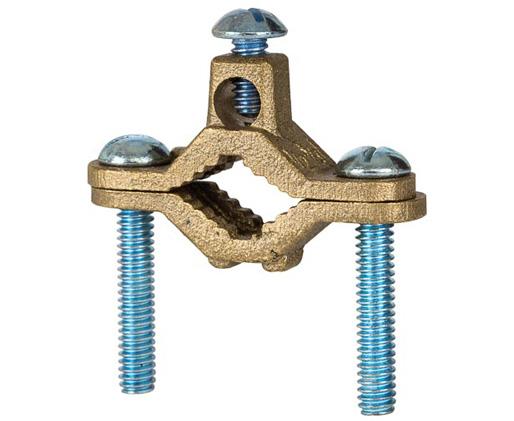

| NPNB-G1S |
UL |
1/2 - 1 | 10 SOL - 2/0 STR | 2.280 | 0.650 | 1.400 |
| NPNB-G2S |
UL |
1 1/4 - 2 | 10 SOL - 2/0 STR | 3.600 | 0.750 | 1.690 |

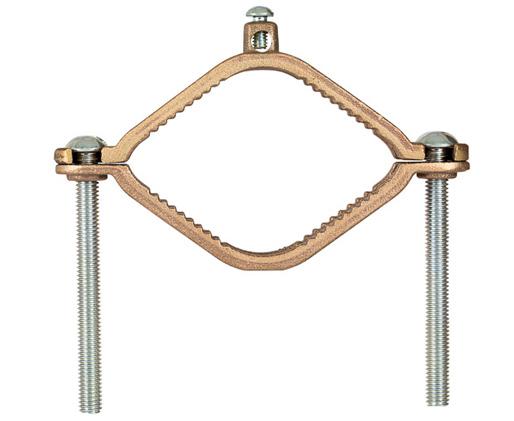

| NPNB-G4S |
UL |
2 1/2 - 4 | 10 SOL - 2/0 STR | 6.350 | 0.970 | 3.750 |

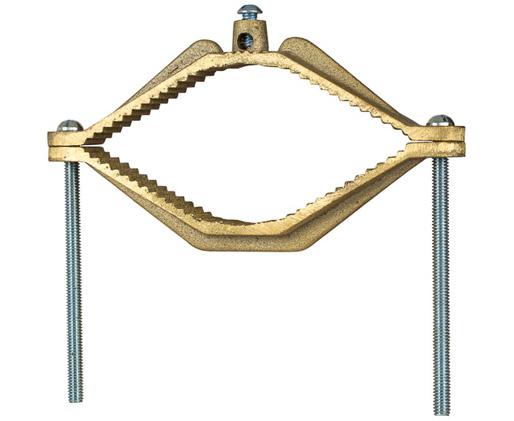

| NPNB-G6S |
cULus |
4 1/2 - 6 | 10 SOL - 2/0 STR | 8.300 | 1.250 | 4.000 |

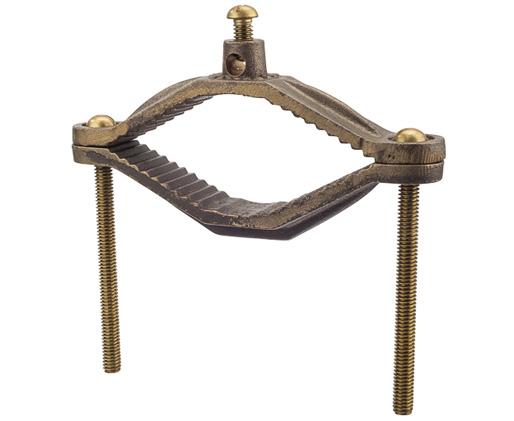

| NPNB-G4SBS |
UL |
2 1/2 - 4 | 10 SOL - 2/0 STR | 6.350 | 0.970 | 3.750 |

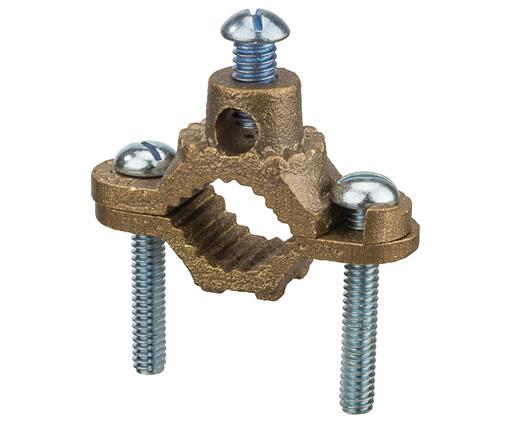

| NPNB-G1 |
UL |
1 1/2 - 1 | 10 SOL - 2/0 STR | 2.200 | 0.748 | 1.437 |

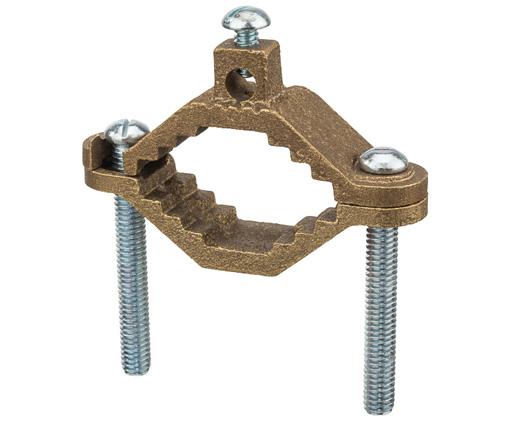

| NPNB-G2 |
UL |
1 1/4 - 2 | 10 SOL - 2/0 STR | 3.500 | 0.847 | 2.180 |

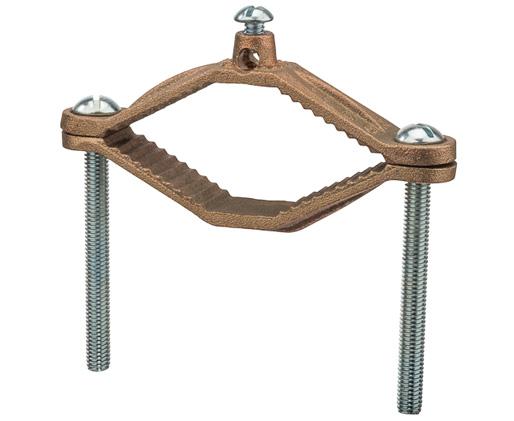

| NPNB-G12 |
cULus |
2 1/2 - 4 | 10 SOL - 2/0 STR | 6.250 | 0.943 | 3.674 |

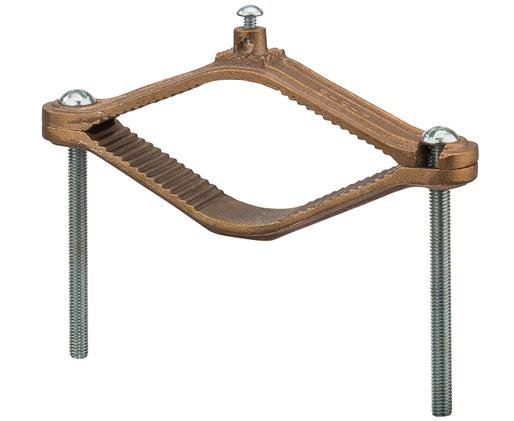

| NPNB-G13 | UL | 4 1/2 - 6 | 10 SOL - 2/0 STR | 7.916 | 0.933 | 4.165 |
