Ground Clamp HD w/Adapter
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.
Features
- Bronze water pipe clamps with bronze adapters.
- Excellent quality yet economical.
- All adapters are interchangeable.
- Assembled with zinc-plated steel screws.
- Hub swings 360° for easy alignment.
- Used to connect rigid conduct and ground conductor to water pipe.
Specifications
| Part# | Certification | Pipe Size (IPS) (in.) | Ground Wire Range (in.) | Conduit Hub Size (in.) |

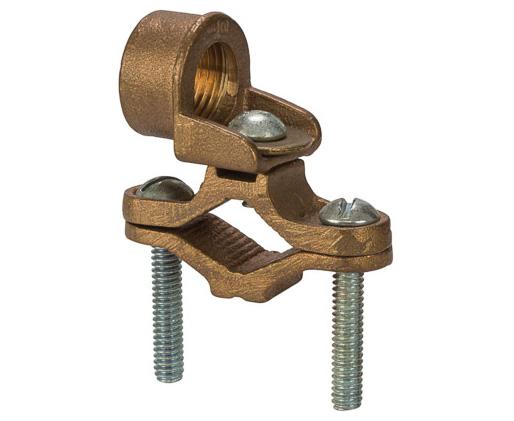

| NPNB-EG5 |
cULus |
1/2 - 1 | 10 SOL - 2/0 STR | 1/2 |

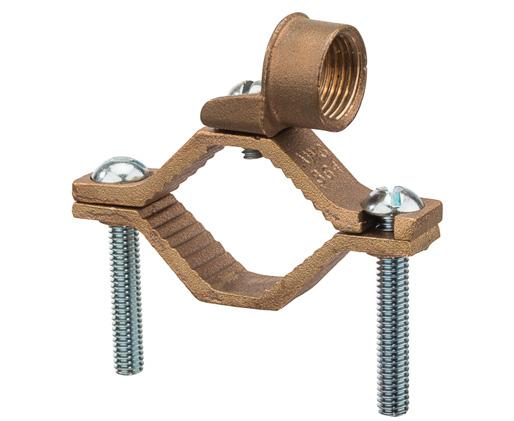

| NPNB-EG6 |
UL |
1 1/4 - 2 | 10 SOL - 2/0 STR | 1/2 |

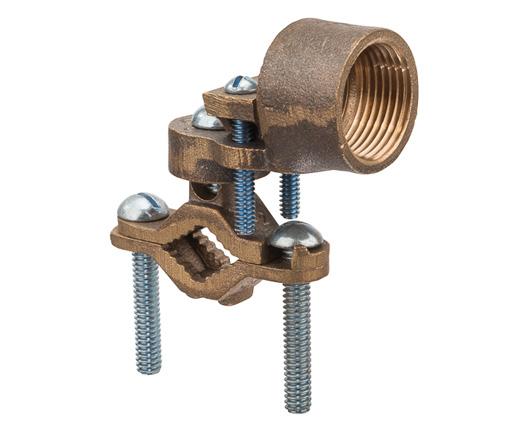

| NPNB-EG7 |
UL |
1/2 - 1 | 10 SOL - 2/0 STR | 3/4 |

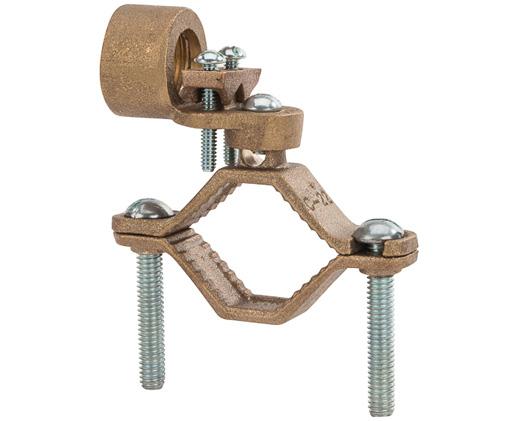

| NPNB-EG8 |
UL |
1 1/4 - 2 | 10 SOL - 2/0 STR | 3/4 |

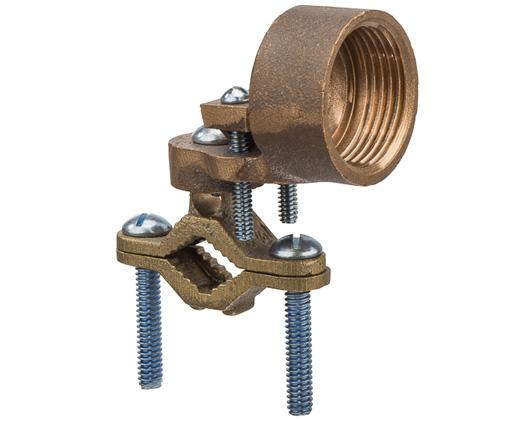

| NPNB-EG9 |
UL |
1/2 - 1 | 10 SOL - 3/0 STR | 1 |

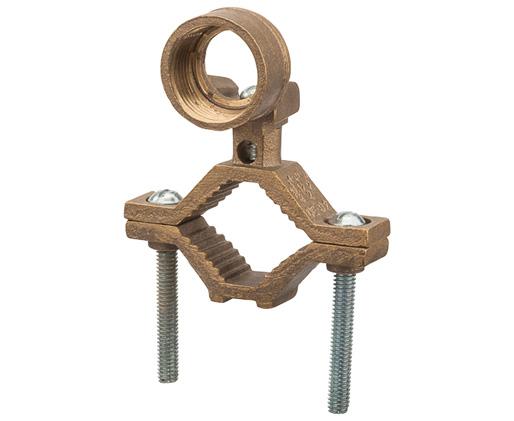

| NPNB-EG10 |
UL |
1 1/4 - 2 | 10 SOL - 3/0 STR | 1 |

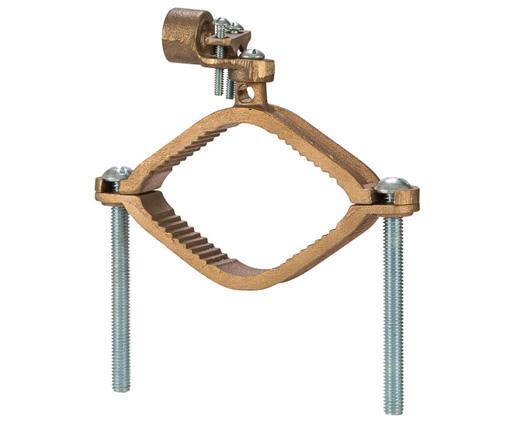

| NPNB- EG15 |
cULus |
2 1/2 - 4 | 10 SOL - 2/0 STR | 1/2 |

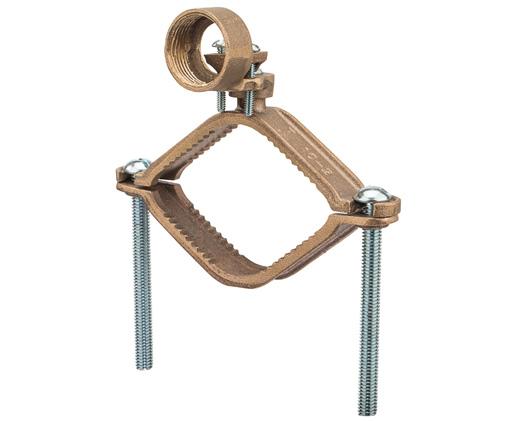

| NPNB- EG24 |
UL |
2 1/2 - 4 | 10 SOL - 3/0 STR | 1 |
What's in the box?
What's in the box?
-
Conduit Hub
