Description
Ground Clamp Lay-In DB Rated
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.
Features
- The ultimate ground clamp for large ground wires.
- This incredible ground clamp can handle just about any size ground wire and just about any application.
- Lay-in feature provides for the ultimate in flexibility.
- Convenient and pre-assembled screws are 304 stainless steel.
Specifications
| Part No. | Certification | Pipe Size (IPS) (in.) | Ground Wire Range | Rebar Size (in.) | Ground Rod Size (in.) | Length (in.) | Width (in.) | Height (in.) |

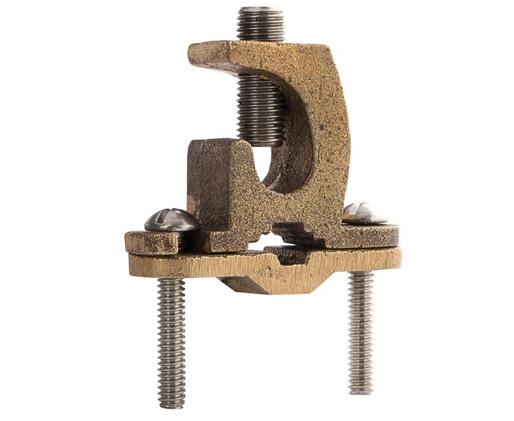

| NPNB-GLC140DB | cULus | 1/2-1 | 8 STR-4/0 STR | 3/8-1 | 1/2-1 | 2.551 | 0.784 | 2.132 |
| NPNB-GLC12DB | UL | 1/2-1 | 10-2 STR | 3/8-1 | 1/2-1 | 2.281 | 0.714 | 1.382 |

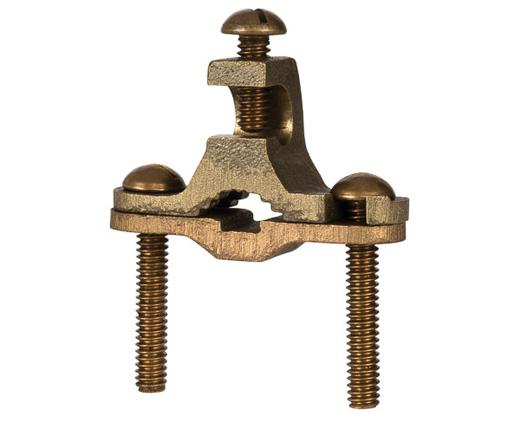

| NPNB-GLC12RDB | UL | 1/2-1 | 10-2 STR | 3/8-1 | 1/2-1 | 2.283 | 0.670 | 1.385 |

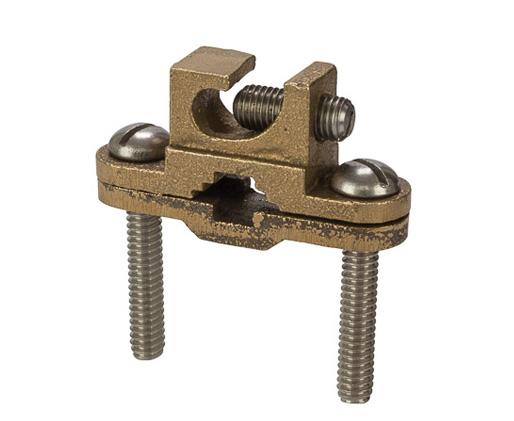

| NPNB-GLC12HDB | UL | 1/2-1 | 10-2 STR | 3/8-1 | 1/2-1 | 2.362 | 0.708 | 1.200 |

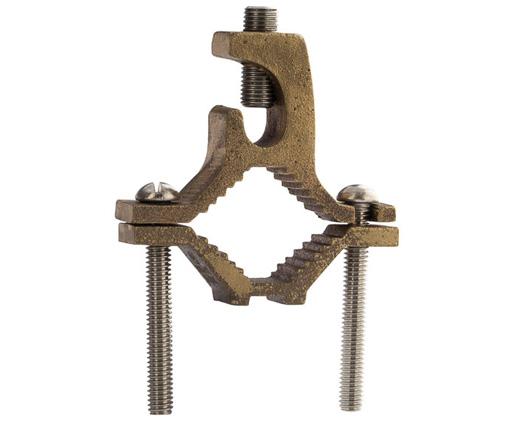

| NPNB-GLC240DB | cULus | 1 1/4-2 | 8-4/0 STR | - | - | 3.319 | 0.693 | 3.190 |

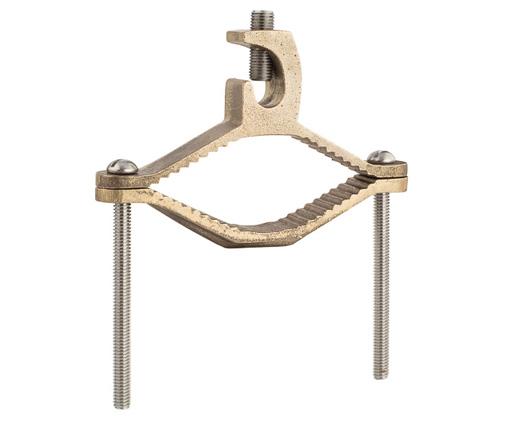

| NPNB-GLC440DB | cULus | 2 1/2-4 | 8-4/0 STR | - | - | 5.688 | 0.823 | 3.743 |
- cULus Listed 467 Grounding & Bonding.
- UL467 Listed, Grounding & Bonding.
- Application: UL Listed for direct burial in earth and concrete, it can be used with rebar, copper water pipe, copper tubing and ground rods up to 1 inch in diameter.
