Ground Clamps Heavy Duty with 360° Adapters for Rigid Conduit

Description

Ground Clamps Heavy Duty & with 360° Adapters for Rigid Conduit

A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable. With a lay-in feature for the ultimate flexibility, Primus Cables’ GLC-DB Direct Burial ground clamps are a perfect fit for continuous loop grounding of solar panels.

Features

Heavy duty bronze adapters have serrations that match the serrations on the ground clamp, assuring positive lock.
All adapters fit all clamps for the ultimate flexibility.
Assembled with zinc plated steel hardware.
Used to connect grounding conductor to rigid conduit on water pipe.

Specifications

Part#	Certification	Pipe Size (IPS) (in.)	Conduit Hub Size (in.)	Ground Wire Range (in.)

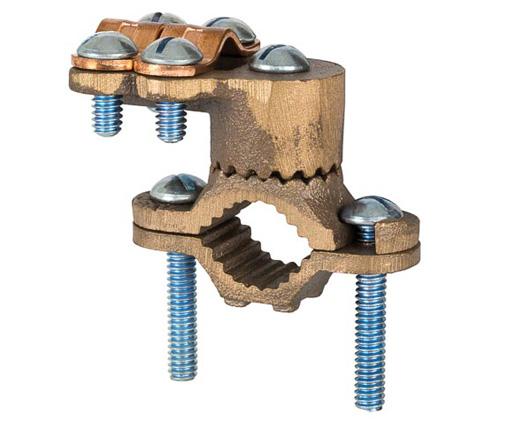

NPNB-G3	UL	1 1/2 - 1	----	8-4/0 STR

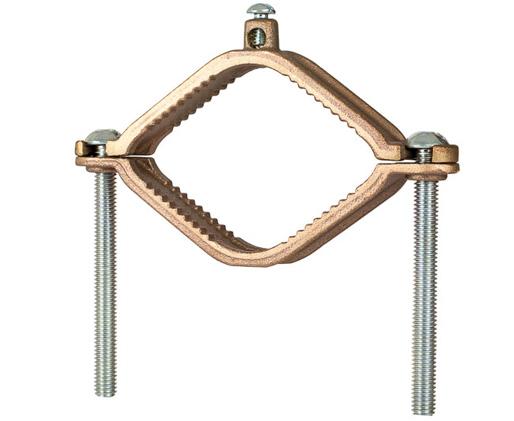

NPNB-G4	UL	1 1/4 - 2	----	8-4/0 STR

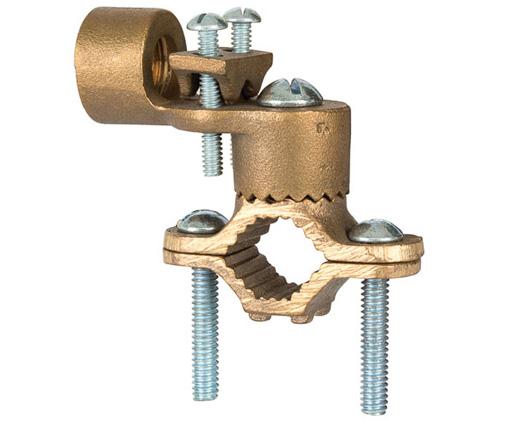

NPNB-G5	cULus	1/2 - 1	1/2	10 SOL – 2/0 STR

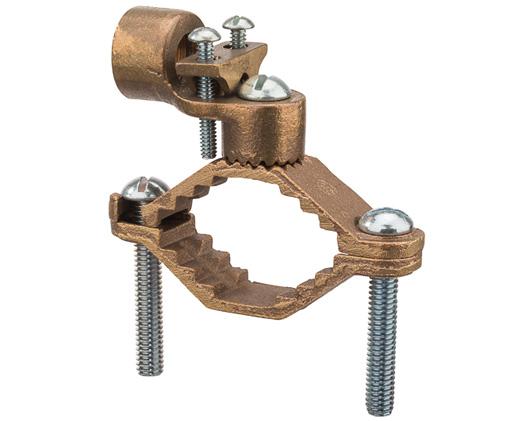

NPNB-G6	cULus	1 1/4 - 2	1/2	10 SOL – 2/0 STR

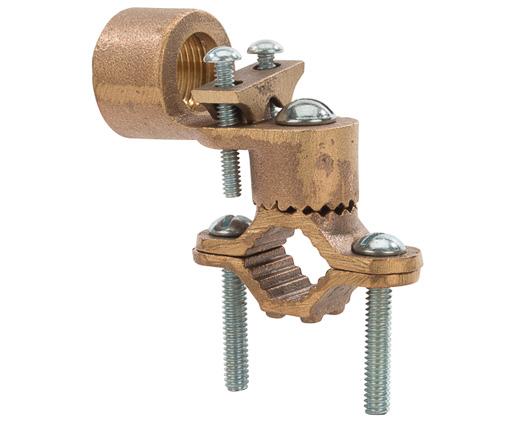

NPNB-G7	UL	1/2 - 1	3/4	10 SOL – 3/0 STR

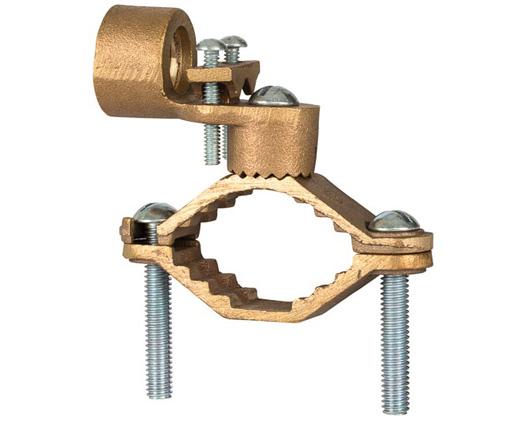

NPNB-G8	UL	1 1/4 - 2	3/4	10 SOL – 3/0 STR

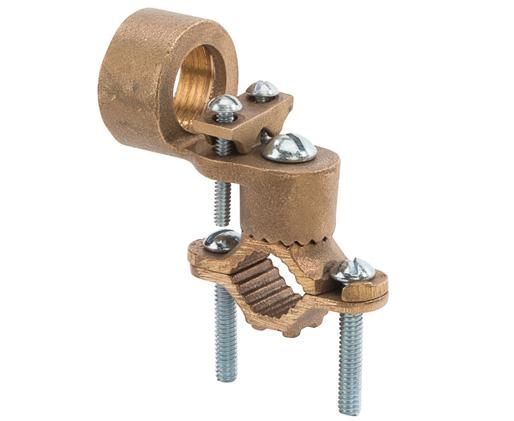

NPNB- G9	cULus	1/2 - 1	1	10 SOL – 3/0 STR

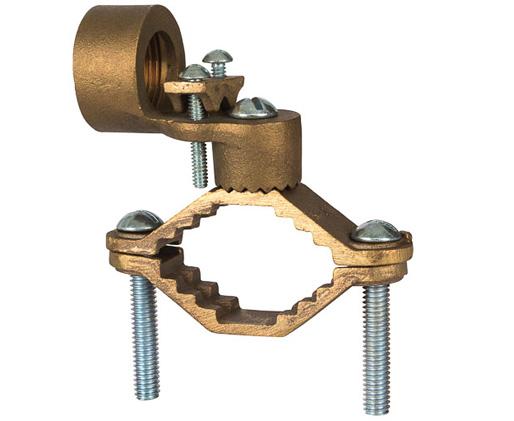

NPNB-G10	UL	1 1/4 - 2	1	10 SOL – 3/0 STR

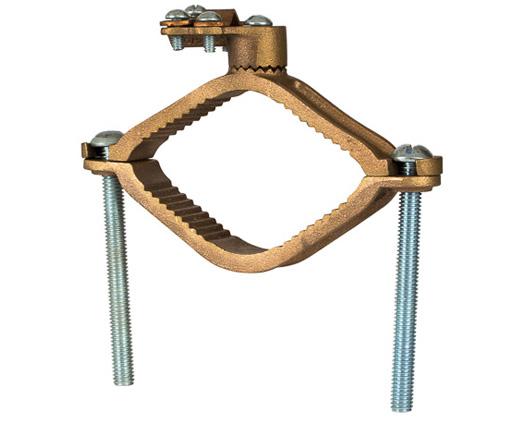

NPNB-G15	UL	2 1/2 - 4	-	8-4/0 STR

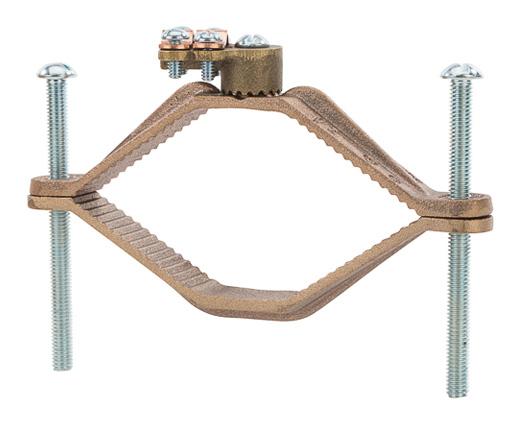

NPNB-G16	cULus	4 1/2 - 6	-	8-4/0 STR

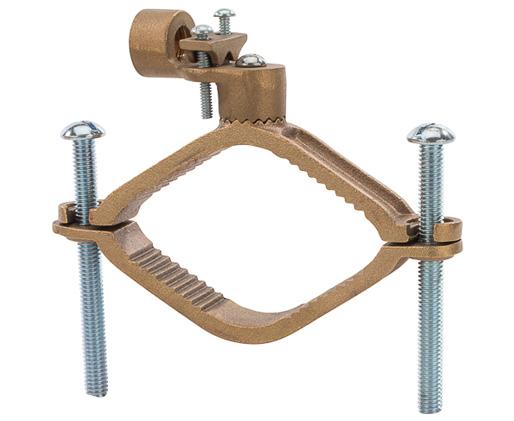

NPNB-G18	UL	2 1/2 - 4	1/2	10 SOL – 2/0 STR

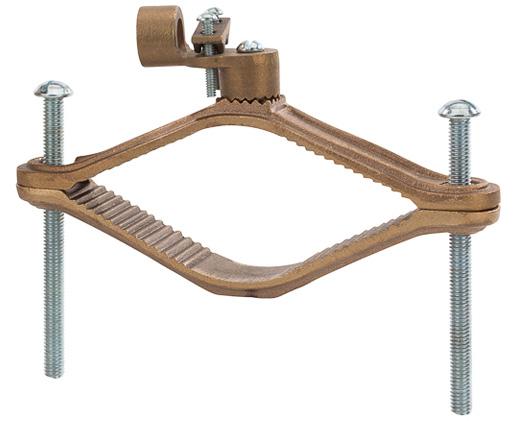

NPNB-G19	cULus	4 1/2 - 6	1/2	10 SOL – 2/0 STR

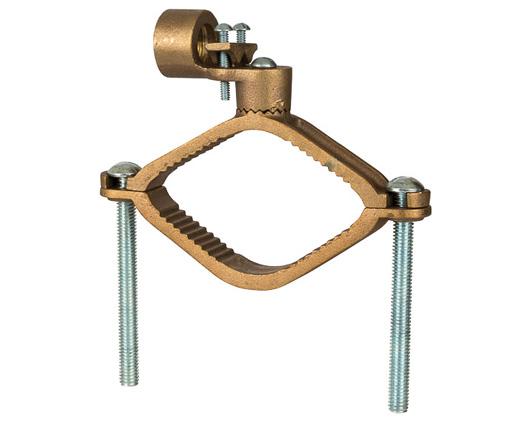

NPNB-G21	cULus	2 1/2 - 4	3/4	10 SOL – 3/0 STR

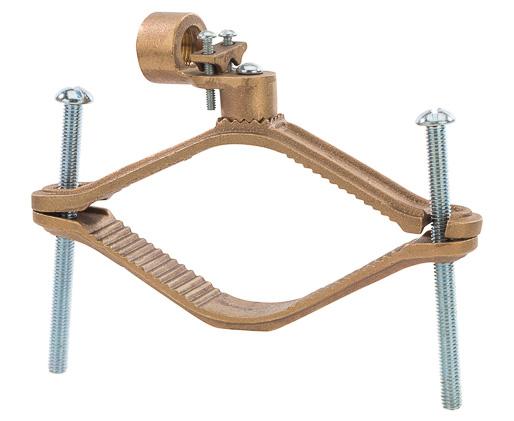

NPNB-G22	UL	4 1/2 - 6	3/4	10 SOL – 3/0 STR
NPNB-G24	cULus	2 1/2 - 4	1	10 SOL – 3/0 STR

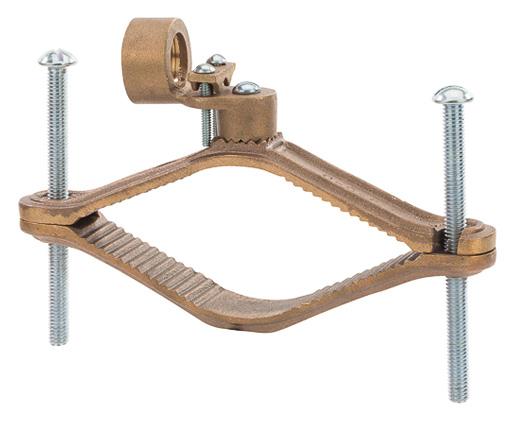

NPNB-G25	UL	4 1/2 - 6	1	10 SOL – 3/0 STR
