Description
Hardline Coring and Stripping Tool - ½", ⅝", ¾", ⅞"

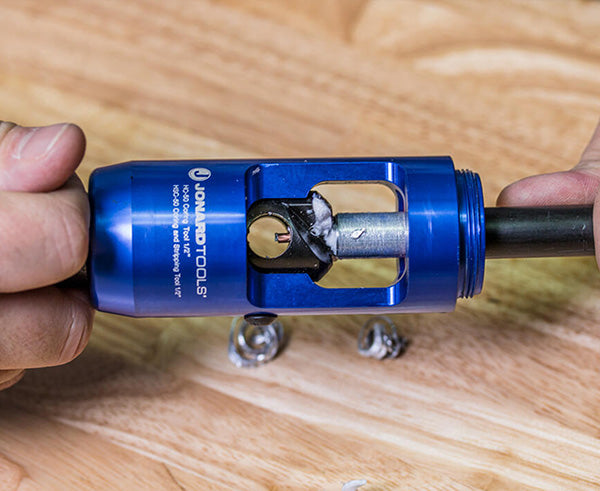

The HSC-50 hardline coring and stripping tool is designed to core and strip 500 Series COAX Cables (½”), such as the Times Fiber T10 and Commscope P3 cables.
The HSC-625 hardline coring and stripping tool is designed to core and strip 625 Series COAX Cables (⅝”), such as the Times Fiber T10 and Commscope P3 cables.
The HSC-75 hardline coring and stripping tool is designed to core and strip 750 Series COAX Cables (¾”), such as the Times Fiber T10 and Commscope P3 cables.
The HSC-875 hardline coring and stripping tool is designed to core and strip 875 Series COAX Cables (⅞”), such as the Times Fiber T10 and Commscope P3 cables.
Features
Features

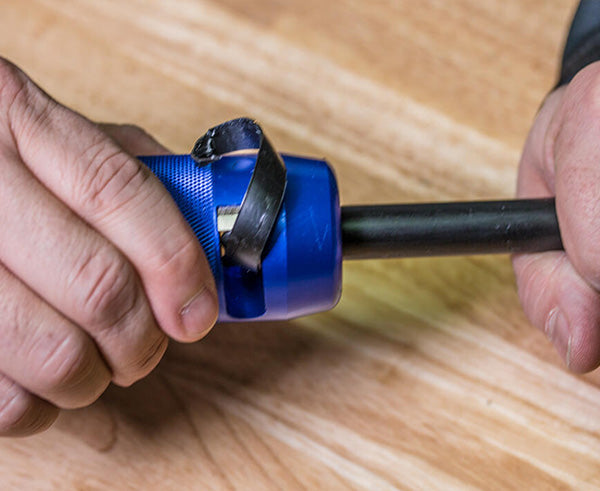

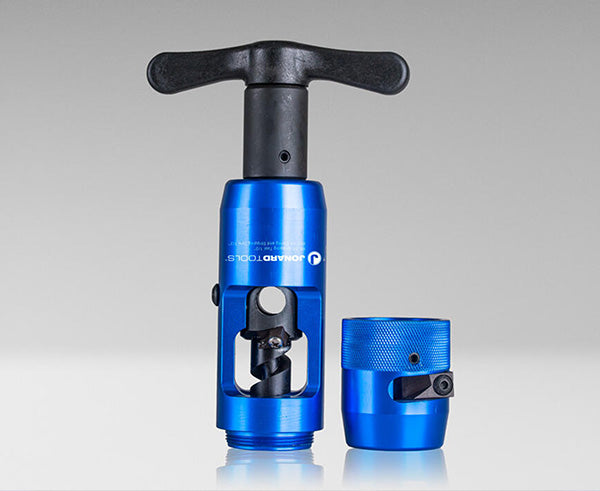

- Performs both coring and stripping all in one tool, stripper can be easily removed to help deal with flooded cables
- Heavy duty aluminum body with stripping and coring blades made of high carbon steel and heat treated for long life

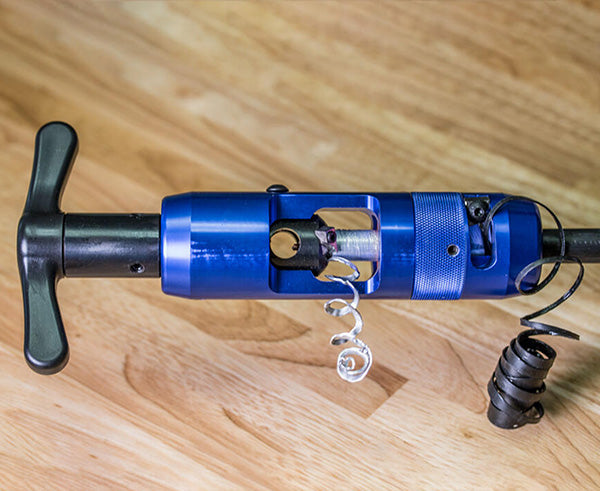

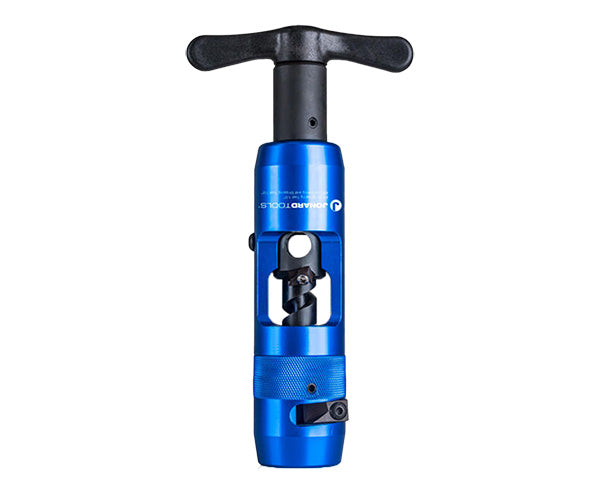

- T handle is a ratcheting handle for increased comfort and faster coring and the tool can perform both coring and stripping simultaneously, T handle can also be removed allowing the user to attach a drill to make coring even easier
- Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
- Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings

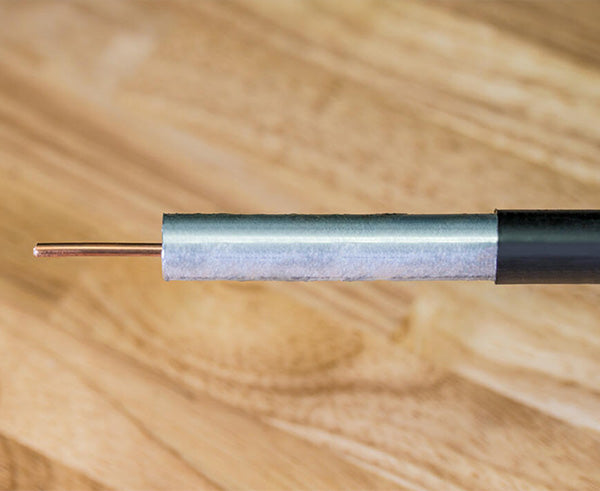

- The tool bevels the outer conductor, chamfers the center conductor, and opens its center conductor length
- Total core and strip length

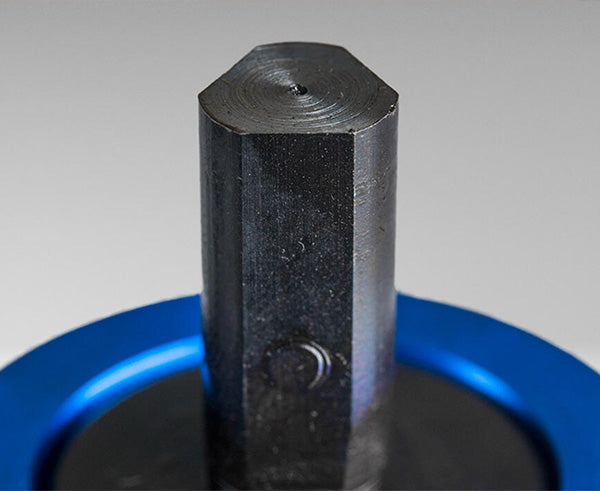

- The coring bit, coring blade, and jacket stripping blade are made from hardened steel for long life
- Includes hex keys for replacing stripping blades and removing the T handle and an instruction manual
Specifications
| TECHNICAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model | HSC-50 | HSC-625 | HSC-75 | HSC-875 |
| TOOL SPECIFICATIONS | ||||
| Description | Hardline strip & core tool 1/2” | Hardline strip & core tool 5/8” | Hardline strip & core tool 3/4” | Hardline strip & core tool 7/8” |
| Size of Cable | .500” / 12.7 mm | .625” / 15.86 mm | .750” / 19.05 mm | .875” / 22.23 mm |
| PHYSICAL CHARACTERISTICS | ||||
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Length | 8” / 203.2 mm | 8” / 203.2 mm | 8” / 203.2 mm | 8” / 203.2 mm |
| Weight | 1 lbs / 0.45 kg | 1 lbs / 0.45 kg | 1 lbs / 0.45 kg | 1 lbs / 0.45 kg |
| IDENTIFICATION | ||||
| UPC # | 811490018860 | 811490019638 | 811490018877 | 810053350614 |
Additional Information
Coring & Stripping All-in-One Tool 🤌 HSC-625 |
Jonard Tools HSC-50 Call Out Video |
Jonard Tools Coring Tools Product Video |
|
What's In The Box
What’s In The Box
- Hardline Coring and Stripping Tool - ½", ⅝", ¾", ⅞"
