Description
Heavy Duty Silicon Bronze Ground Rod Clamp
A full Grounding line covering all applications, featuring heavy duty, direct burial clamps, and range taking rod clamps. Primus Cables’ Grounding line also includes clamps with adapters, clamps for water pipe, rigid conduit or rebar, intersystem bonding connectors and clamps for parallel 90, 2, and 3 conductor copper cable.
Features

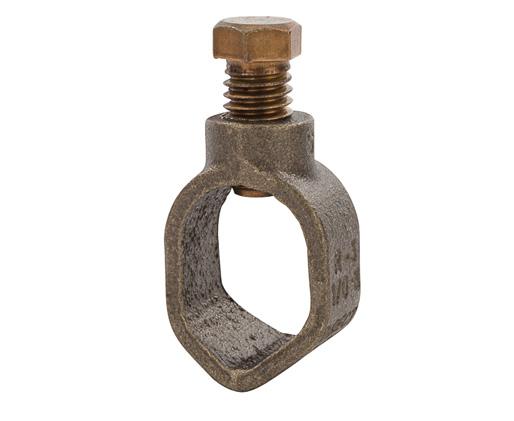

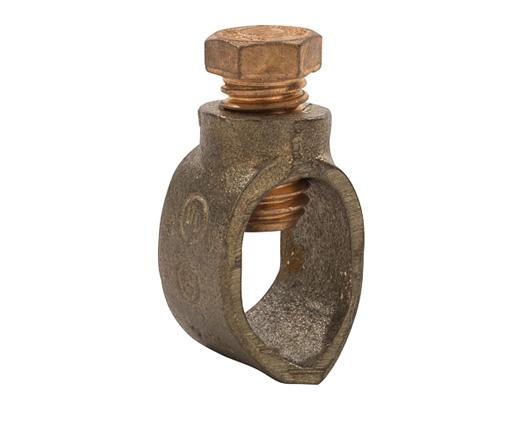

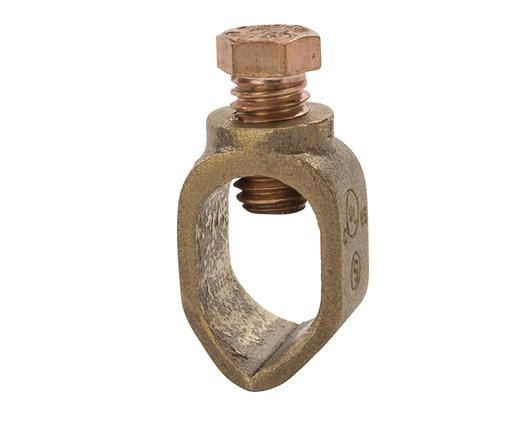

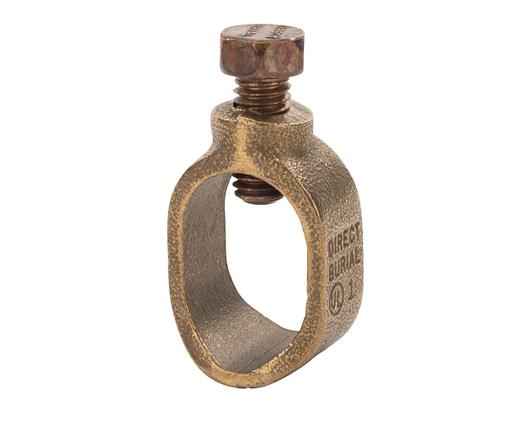

Heavy Duty Silicon Bronze (GRC-H)
- Ground rod clamps are made from silicon bronze for maximum strength.
- A silicon bronze screw furnishes maximum clamping force.
- All standard duty and heavy duty ground clamps are UL Listed for direct burial in earth or concrete.
- *Available with silicon bronze screws by adding suffix -SB.

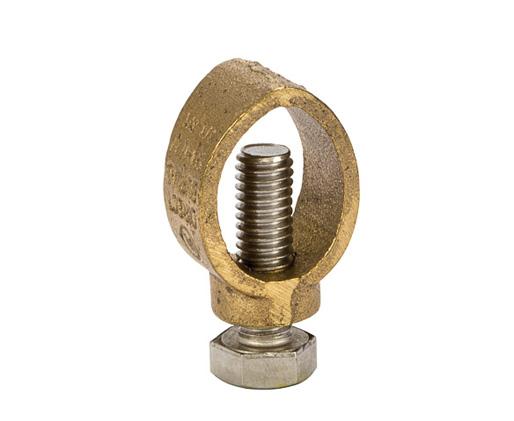

Range Taking Rod Clamp (GRC)
- This heavy duty ground rod clamp replaces all existing ground rod clamps, eliminating the need to stock several different sizes and types.
- UL listed for direct burial in earth and concrete, heavy duty construction enables it to handle large ground wires up to 1/0 AWG – much larger than a standard ground rod clamp.
- Suitable for 3/8”, 1/2”, 5/8”, 3/4” ground rods.
- *Available with silicon bronze screws by adding suffix -SB.
Specifications
- UL Listed for Direct Burial in Earth & Concrete.
| Part# | Pipe Size (IPS) (in.) | Ground Wire Range (in.) | Ground Wire Bolt Size (in.) | Ground Clamp Bolt Size (in.) |
| NPNB-GCA1 | 1/2 - 1 | 1/0 - 14 AWG | - | - |
| NPNB-GCA2 | 1 1/4 - 2 | 250 MCM - 6 AWG | - | - |
| NPNB-GCA4 | 2 1/2 - 4 | 250 MCM - 6 AWG | - | - |
| NPNB-G20 | 1/2 - 1 | 4, 6, 8 STR | 1/4 - 20 x 1/2 | 1/4 - 20 x 1 1/2 |
| NPNB-G66 | 1 1/4 - 2 | 4, 6, 8 STR | 1/4 - 20 x 1/2 | 5/16 - 18 x 2 |
What's in the box?
What's in the box?
-
Heavy Duty Ground Rod Clamp
