Description

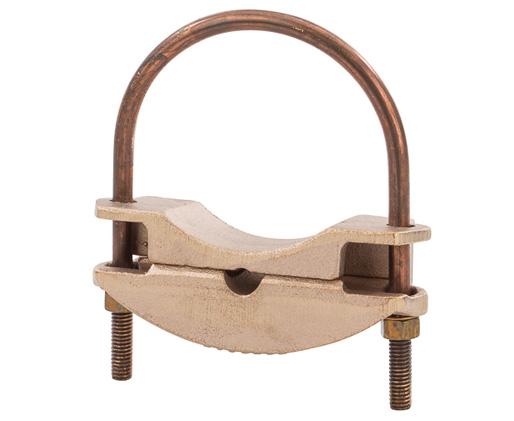

Heavy Duty U Bolt Ground Clamp 1 Cond.
Heavy Duty for Parallel, 90° Copper Cable
Features
- Made of high-copper-content alloy for grounding to
- 1/2” - 1” ground rods and ground pipes from
- 1/4” - 3 1/2” in parallel or 90° position.
- Suitable for direct burial in earth and concrete.
- Nuts and lockwashers are silicon bronze.
- For use with single wire.
Specifications
- UL467 Listed, Grounding & Bonding.
| Part# | Pipe Size (IPS) (in.) | Rod Size (in.) | Cable Range (in.) |
| NPNB-UC101 | 1/4 | 1/2 | 2/0 - 4 |
| NPNB-UC102 | 1/4 | 1/2 | 250-2/0 |
| NPNB-UC103 | 3/8 | 5/8 - 3/4 | 4-8 |
| NPNB-UC104 | 3/8 | 5/8 - 3/4 | 2/0 - 4 |
| NPNB-UC105 | 3/8 | 5/8 - 3/4 | 250-2/0 |
| NPNB-UC108 | 1/2 - 3/4 | 7/8 - 1 | 2/0 - 4 |
| NPNB-UC109 | 1/2 - 3/4 | 7/8 - 1 | 250-2/0 |
| NPNB-UC110 | 1/2 - 3/4 | 7/8 - 1 | 300 - 500 |
| NPNB-UC114 | 1 | - | 2/0 - 4 |
| NPNB-UC115 | 1 | - | 250-2/0 |
| NPNB-UC120 | 1 1/4 | - | 2/0 - 4 |
| NPNB-UC121 | 1 1/4 | - | 250-2/0 |
| NPNB-UC126 | 1 1/2 | - | 2/0 - 4 |
| NPNB-UC127 | 1 1/2 | - | 250-2/0 |
| NPNB-UC132 | 2 | - | 2/0 - 4 |
| NPNB-UC133 | 2 | - | 250-2/0 |
| NPNB-UC137 | 2 1/2 | - | 2/0 - 4 |
| NPNB-UC138 | 2 1/2 | - | 250-2/0 |
| NPNB-UC142 | 3 | - | 2/0 - 4 |
| NPNB-UC143 | 3 | - | 250-2/0 |
| NPNB-UC147 | 3 1/2 | - | 2/0 - 4 |
| NPNB-UC148 | 3 1/2 | - | 250-2/0 |
