Description
Heavy Duty U Bolt Ground Clamp 2 & 3 Cond.
Heavy Duty for Parallel
Features
- Made of high-copper-content alloy for grounding to 1/2” - 1” ground rods and ground pipes from 1/4” - 3 1/2” in parallel or 90° position.
- Suitable for direct burial in earth and concrete.
- Nuts and lockwashers are silicon bronze.

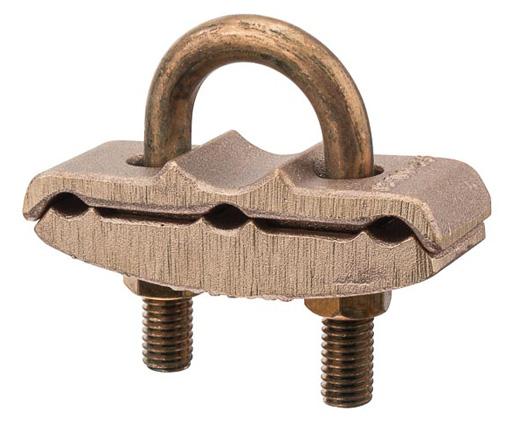

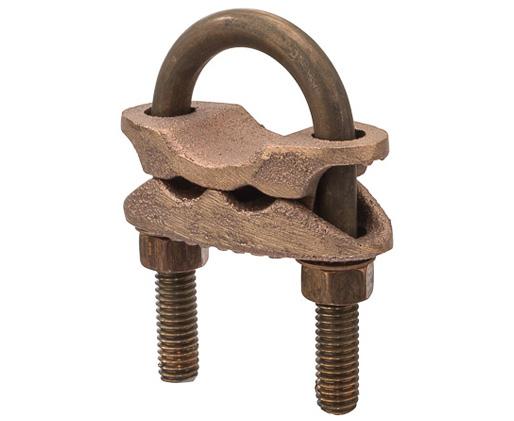

- 200 Series for use with two wires and 300 Series for use with three wires
Specifications
- UL467 Listed, Grounding & Bonding.
| Part# | Pipe Size (IPS) (in.) | Cable Range (in.) |

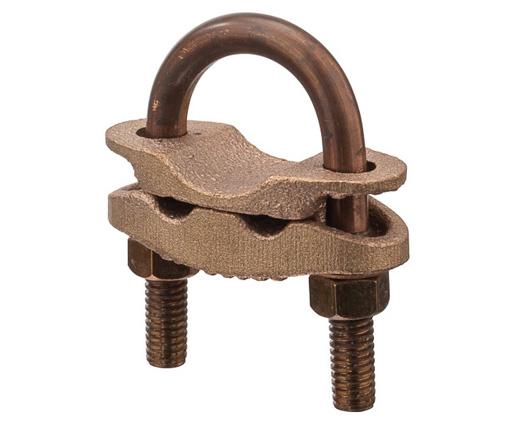

| NPNB-UC214 | 1 | 2/0-4 |
| NPNB-UC215 | 1 | 250 - 2/0 |

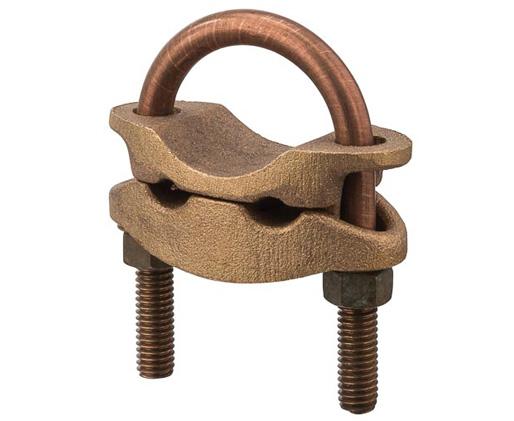

| NPNB-UC221 | 1 1/4 | 250 - 2/0 |

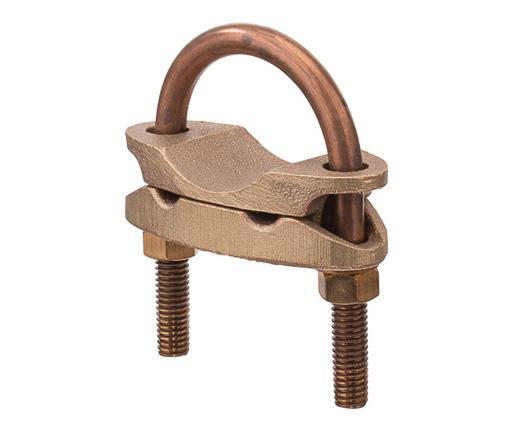

| NPNB-UC226 | 1 1/2 | 2/0-4 |
| NPNB-UC227 | 1 1/2 | 250 - 2/0 |

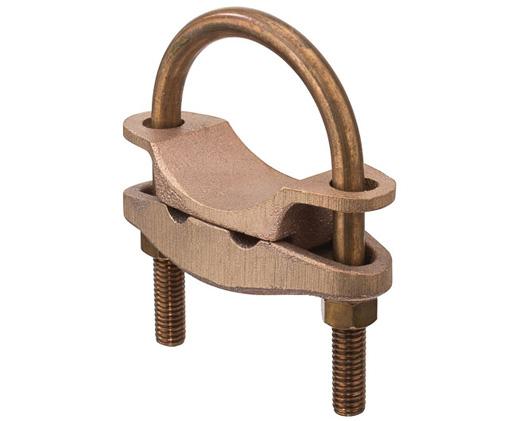

| NPNB-UC232 | 2 | 2/0-4 |
| NPNB-UC233 | 2 | 250 - 2/0 |

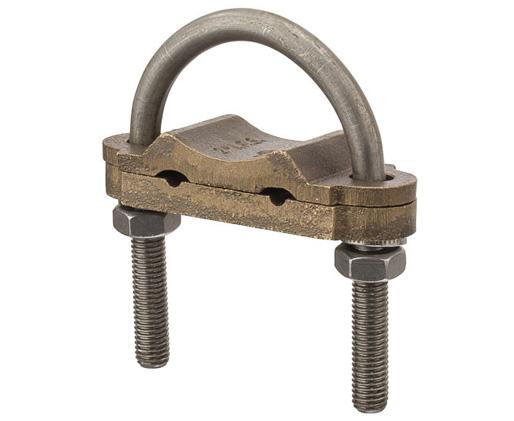

| NPNB-UC237 | 2 1/2 | 2/0-4 |
| NPNB-UC238 | 2 1/2 | 250 - 2/0 |

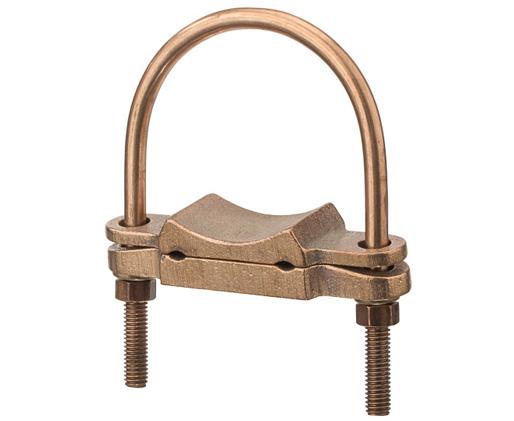

| NPNB-UC242 | 3 | 2/0-4 |

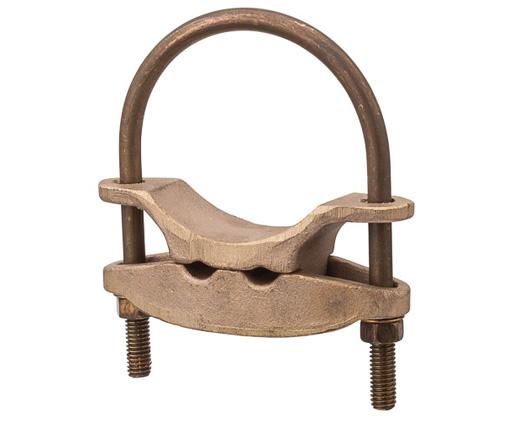

| NPNB-UC243 | 3 | 250 - 2/0 |
| NPNB-UC315 | 1 | 250 - 2/0 |
| NPNB-UC320 | 1 1/4 | 2/0-4 |
| NPNB-UC326 | 1 1/2 | 2/0-4 |
| NPNB-UC327 | 1 1/2 | 250 - 2/0 |
| NPNB-UC332 | 2 | 2/0-4 |
| NPNB-UC338 | 2 1/2 | 250 - 2/0 |

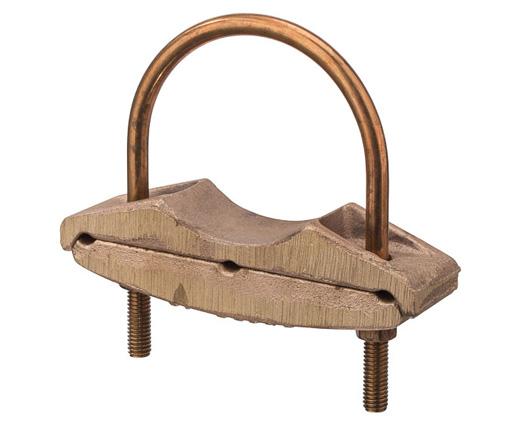

| NPNB-UC342 | 3 |
2/0-4 |
| NPNB-UC343 | 3 | 250 - 2/0 |
