These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description

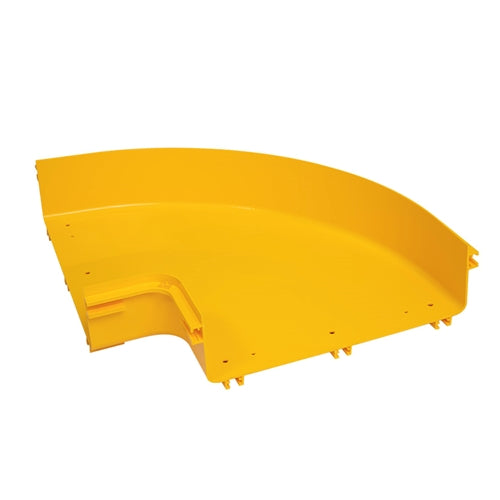

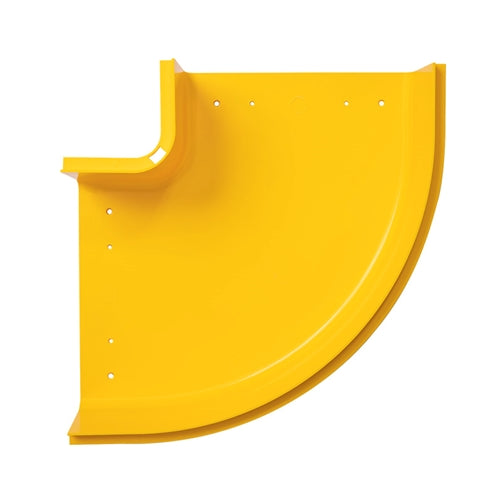

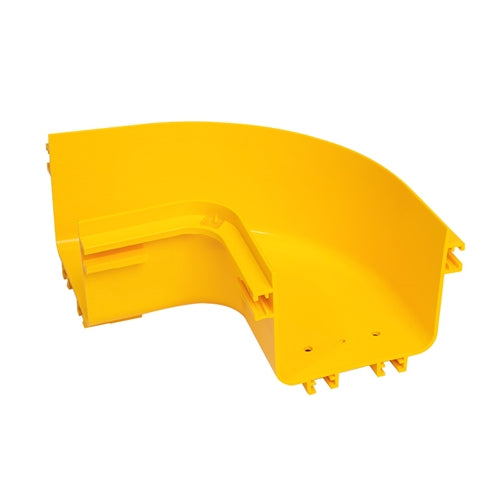

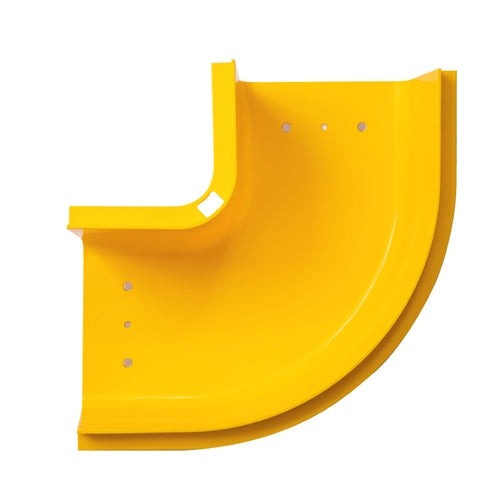

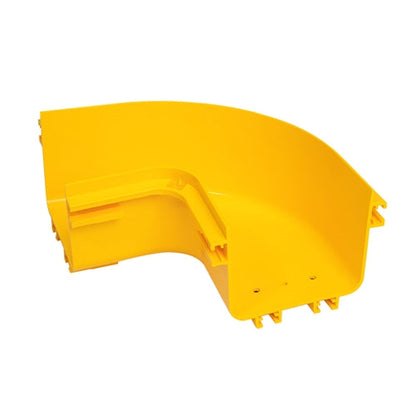

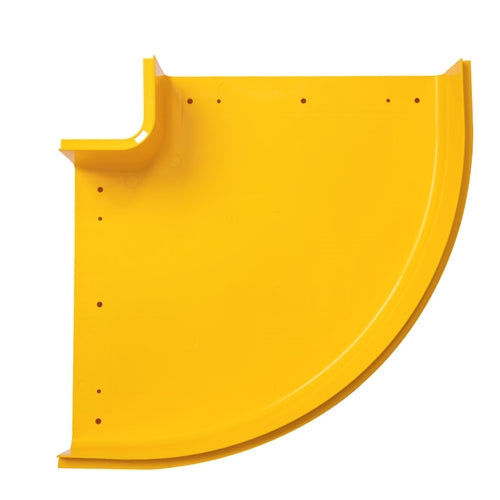

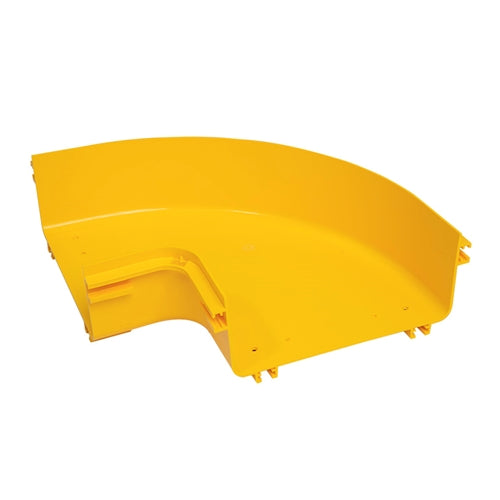

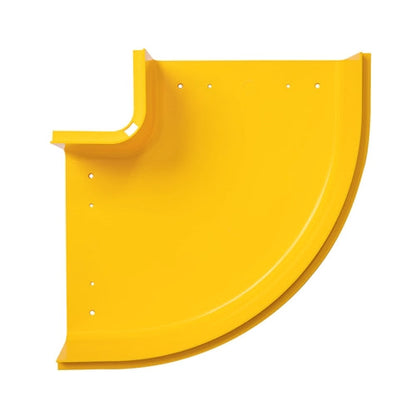

5” - 15" Horizontal 90° Elbow - Fiber Cable Tray Channel
Connects to a 5 to 15 in. straight channel section or other transitional fittings to provide a 90-degree horizontal bend in a fiber routing system.
Features
Features
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Requires couplers for connection (sold separately)

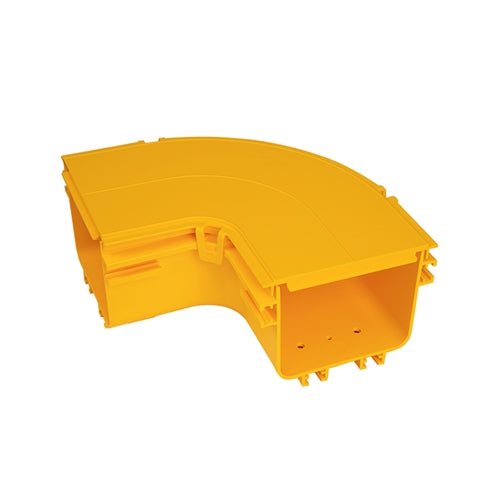

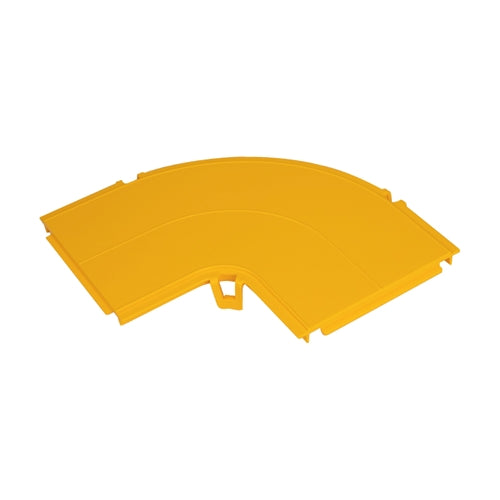

- Snap-on cover available (sold separately)
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS |
| FIBER CABLE TRAY CHANNEL |
5” Horizontal 90° Elbow |
10” Horizontal 90° Elbow |
15” Horizontal 90° Elbow |
| MATERIAL |
LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) |
| COLOR |
YELLOW |
| DIMENSIONS (L X W X H) |
10.1 x 10.1 x 4.6 |
14.9 x 14.9 x 4.6 |
19.4 x 19.4 x 4.6 |
| WEIGHT |
1.21 LBS |
2.29 LBS |
2.78 LBS |
| Included Component |
COVER for 5" (sold separately) |
COVER for 10" (sold separately) |
COVER for 15" (sold separately) |
| HARDWARE |
(2) 5" couplers for connection (SOLD SEPARATELY) |
(2) 10" couplers for connection (SOLD SEPARATELY) |
(2) 15" couplers for connection (SOLD SEPARATELY) |
| COMPLIANCE & STANDARDS |
UL2024 & UL94-V0 |
| SELLING UNIT |
1 PIECE |
Additional Information
| INSTALLATION ANIMATION |
 |
What's in the Box
What's in the Box
-
Qty 1 - Horizontal 90° Elbow, 5", 10", 15" - Fiber Cable Tray Channel
