Description

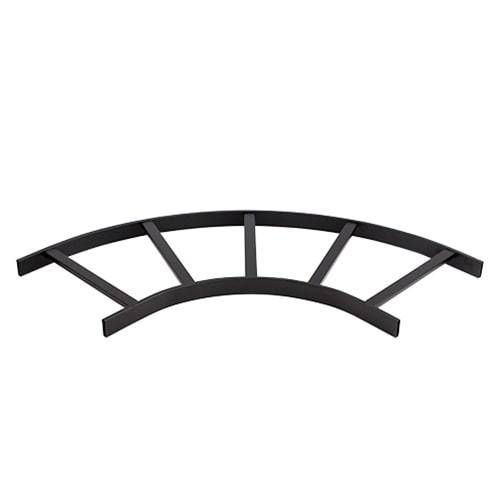

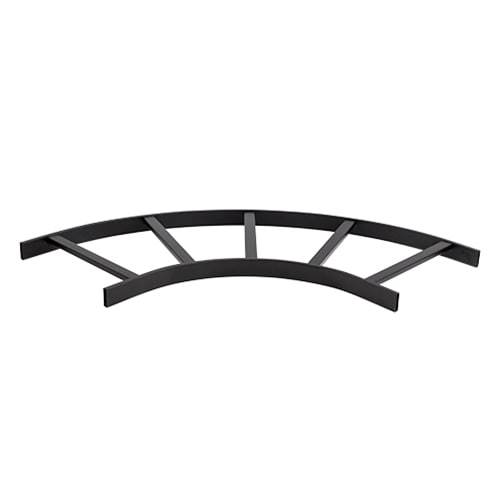

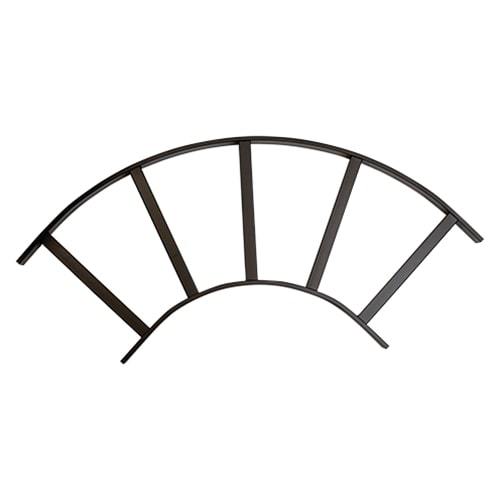

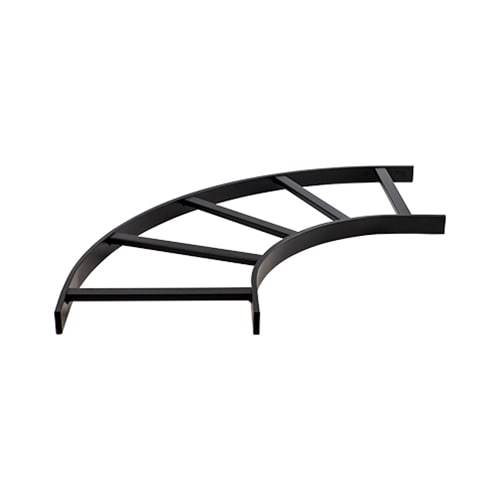

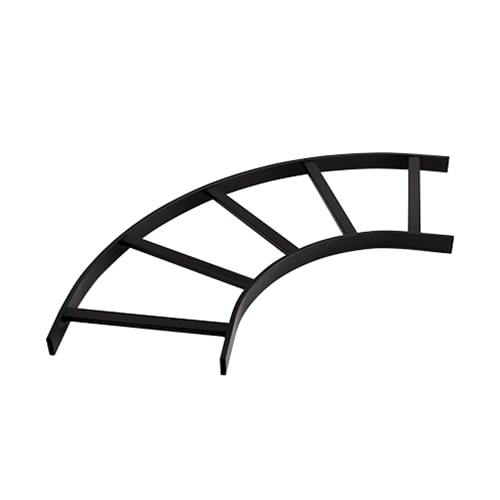

Horizontal Bend Ladder 90º Elbow
This Horizontal Elbow provides a 90 degree sweep in a ladder runway and conforms to minimum cable bend radius requirements. Installs easily using butt-splice kits.
Features
Features
- Stringers: 1-1/2 x 3/8 x 0.06 thick tubular steel
- Cross Members: 1.00 x 1/2 thick tubular steel welded on 9.00 centers
- RoHS compliant
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| PRODUCT TYPE | HORIZONTAL BEND LADDER |
| WIDTH | 12" |
| PRODUCT MATERIAL (SIDES) | 1-1/2 X 3/8 X 0.06 THICK TUBULAR STEEL |
| PRODUCT MATERIAL (RUNGS) | 1.00 X 1/2 X 0.06 THICK TUBULAR STEEL |
| PRODUCT COLOR | BLACK (ADDITIONAL COLORS AVAILABLE THROUGH SPECIAL ORDER) |
| COMPLIANCE & STANDARDS | ROHS COMPLIANT AND CONFORMS TO EIA-310 STANDARD |
Additional Information
| TECHNICAL ILLUSTRATIONS | |
|---|---|
 |
What's in the Box
What's in the Box
- Qty 1 - Horizontal 90º Elbow
