These products are all Made to Order
Which means they are non-cancelable and non-refundable
Description

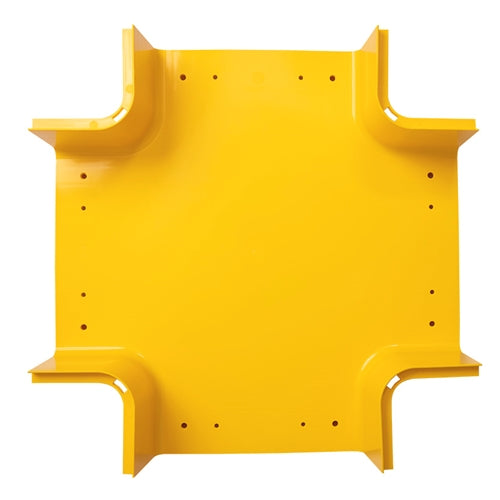

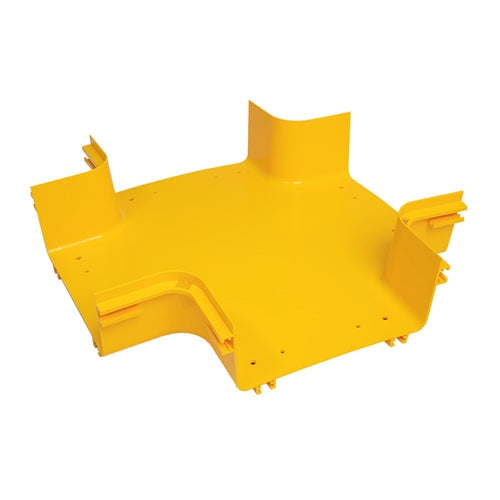

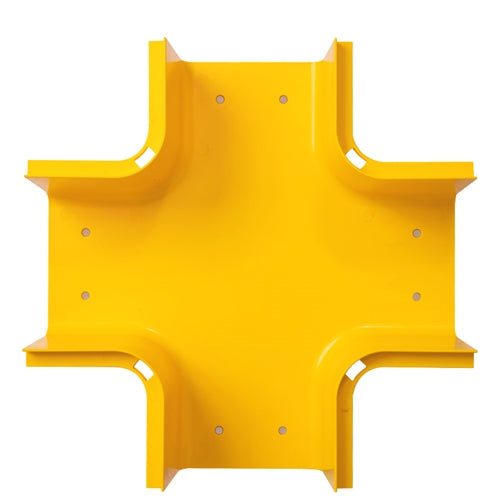

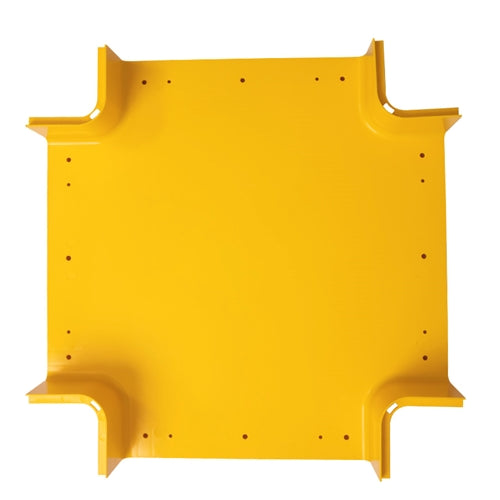

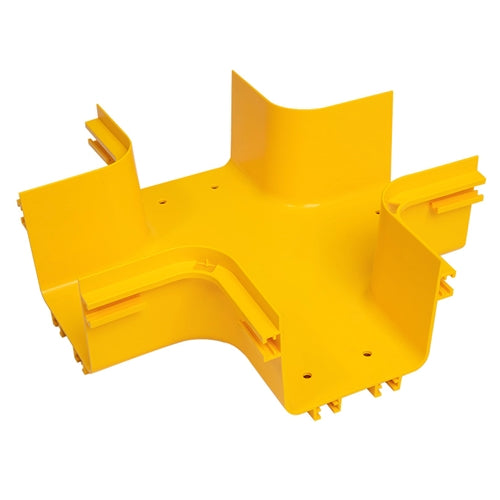

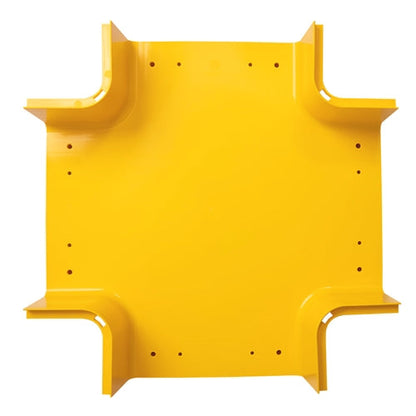

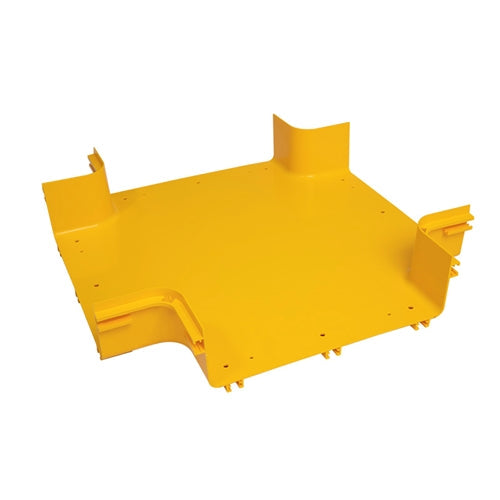

5” - 15" Horizontal Cross - Fiber Cable Tray Channel
Horizontal crosses connect to four appropriate straight channel sections or other transitional fittings to create a four-way intersection with two exits in a fiber routing system.
Features
Features
- Maintains minimum cable bend radius requirements
- Tool-free installation
- Lightweight, flame-retardant PVC (V-0 rated)
- Requires couplers for connection (sold separately)

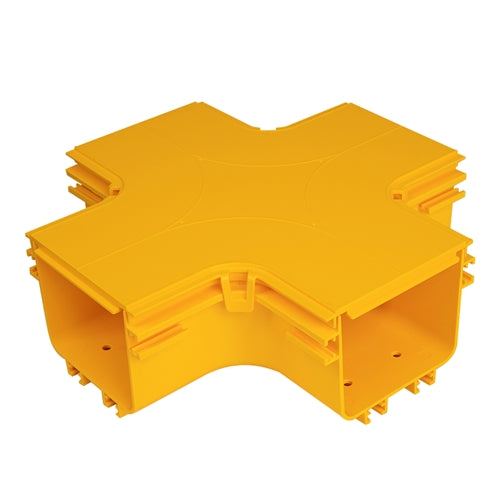

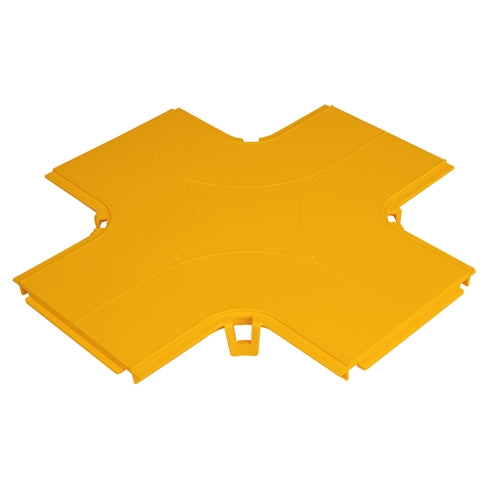

- Snap-on cover available (sold separately)
- UL listed
Specifications
| TECHNICAL SPECIFICATIONS | |||
|---|---|---|---|
| FIBER CABLE TRAY CHANNEL | 5” Horizontal Cross | 10” Horizontal Cross | 15” Horizontal Cross |
| MATERIAL | LIGHTWEIGHT, FLAME-RETARDANT PVC (V-0 RATED) | ||
| COLOR | YELLOW | ||
| DIMENSIONS (L X W X H) | 13.9” x 13.9” x 4.6” | 18.7” x 18.7” x 4.6” | 23.2” x 23.2” x 4.6” |
| WEIGHT | 1.69 LBS | 2.38 LBS | 4.20 LBS |
| Included Component | COVER for 5" (sold separately) | COVER for 10" (sold separately) | COVER for 15" (sold separately) |
| HARDWARE | (2) 5" couplers for connection (SOLD SEPARATELY) | (2) 10" couplers for connection (SOLD SEPARATELY) | (2) 15" couplers for connection (SOLD SEPARATELY) |
| COMPLIANCE & STANDARDS | UL2024 & UL94-V0 | ||
| SELLING UNIT | 1 PIECE | ||
Additional Information
| INSTALLATION ANIMATION |
|---|
 |
What's in the Box
What's in the Box
-
Qty 1 - Horizontal Cross 5", 10", 15" - Fiber Cable Tray Channel
