Description

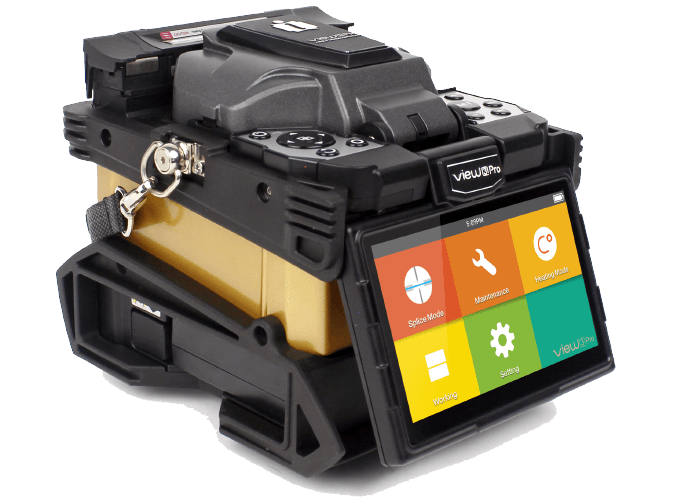

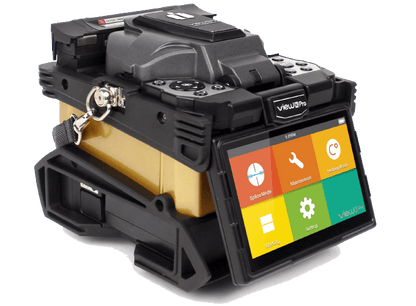

VIEW 3, An Active Clad-Alignment Splicer with the World’s Highest Fiber Image Magnification Rate
VIEW3 PRO is the most precise active cladding fusion splicer in the market with its advanced four motored alignment algorithm ensures the ultimate work experience.

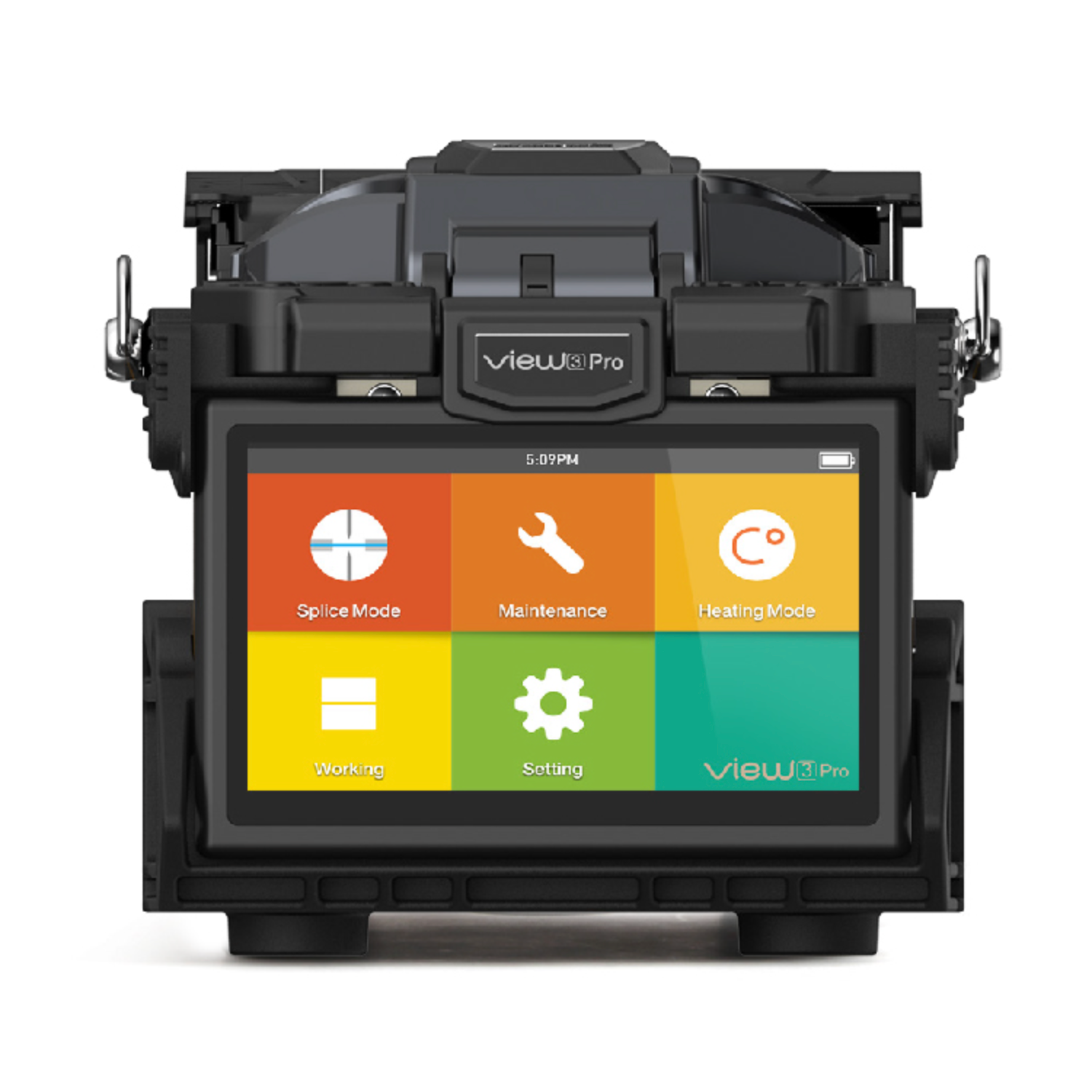

VIEW3 PRO’s 5-inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers users large and clear fiber images. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice conditions to the users working in the darkest environments.

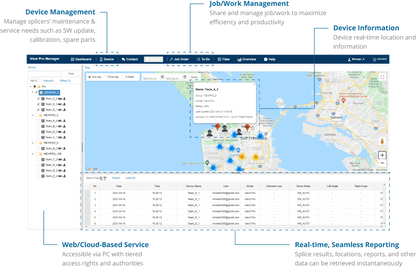

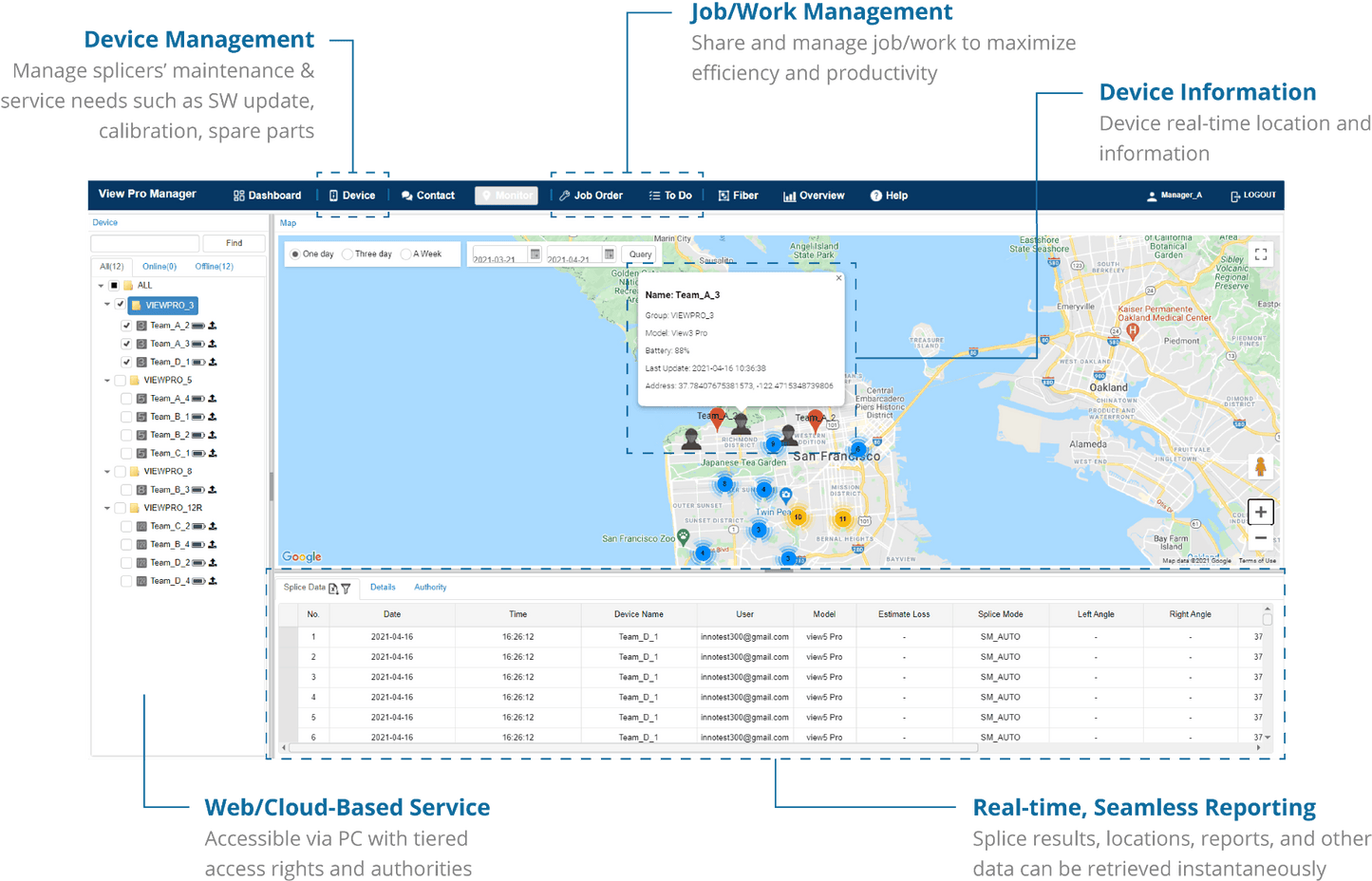

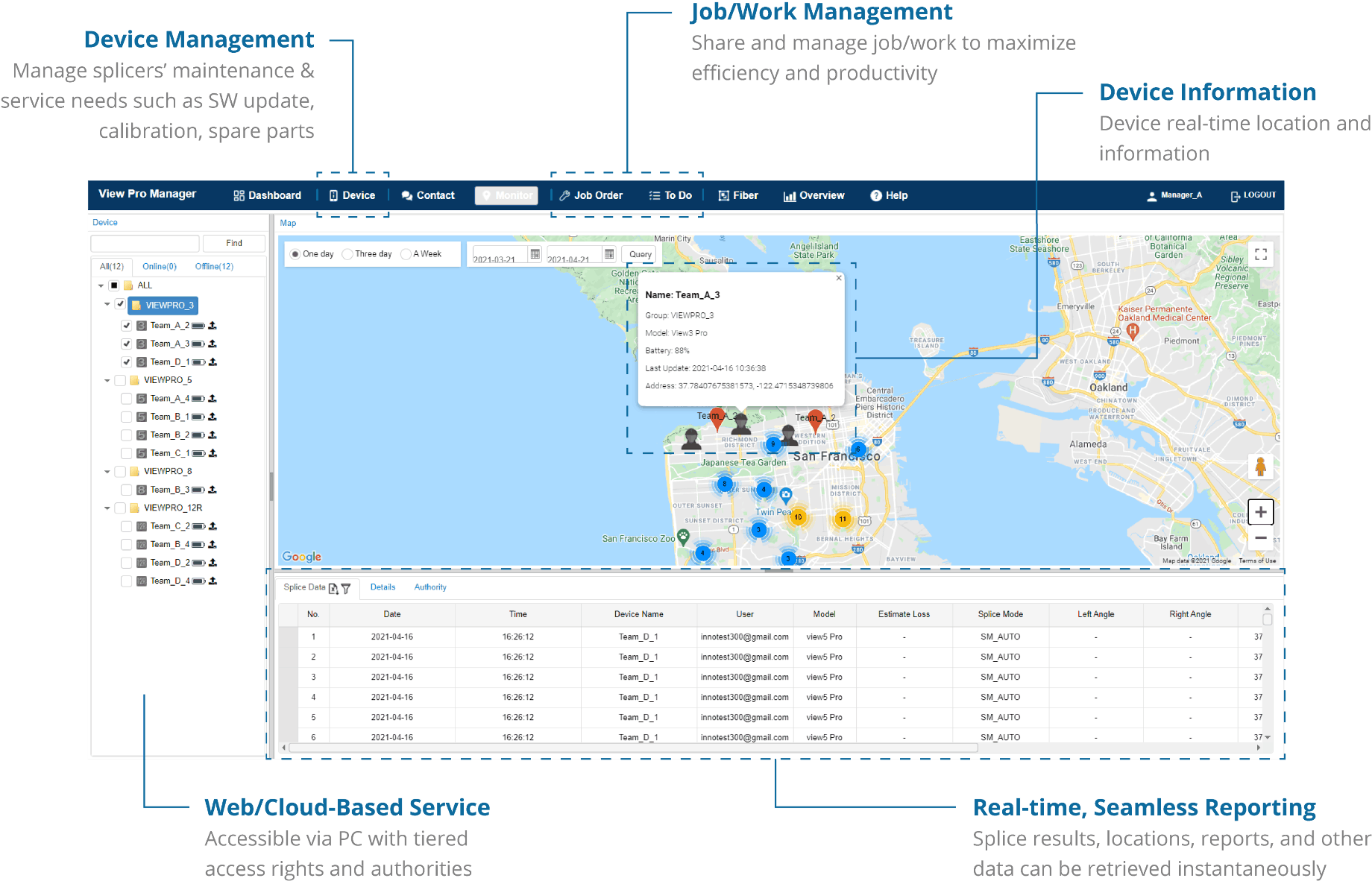

The fusion splicer is equipped with a built-in IoT module that connects to the INNO’s View Pro Cloud Management System for real-time operation and management online. This innovative cloud-based solution is designed to create the most advanced yet uncomplicated splicing and work experiences ever.

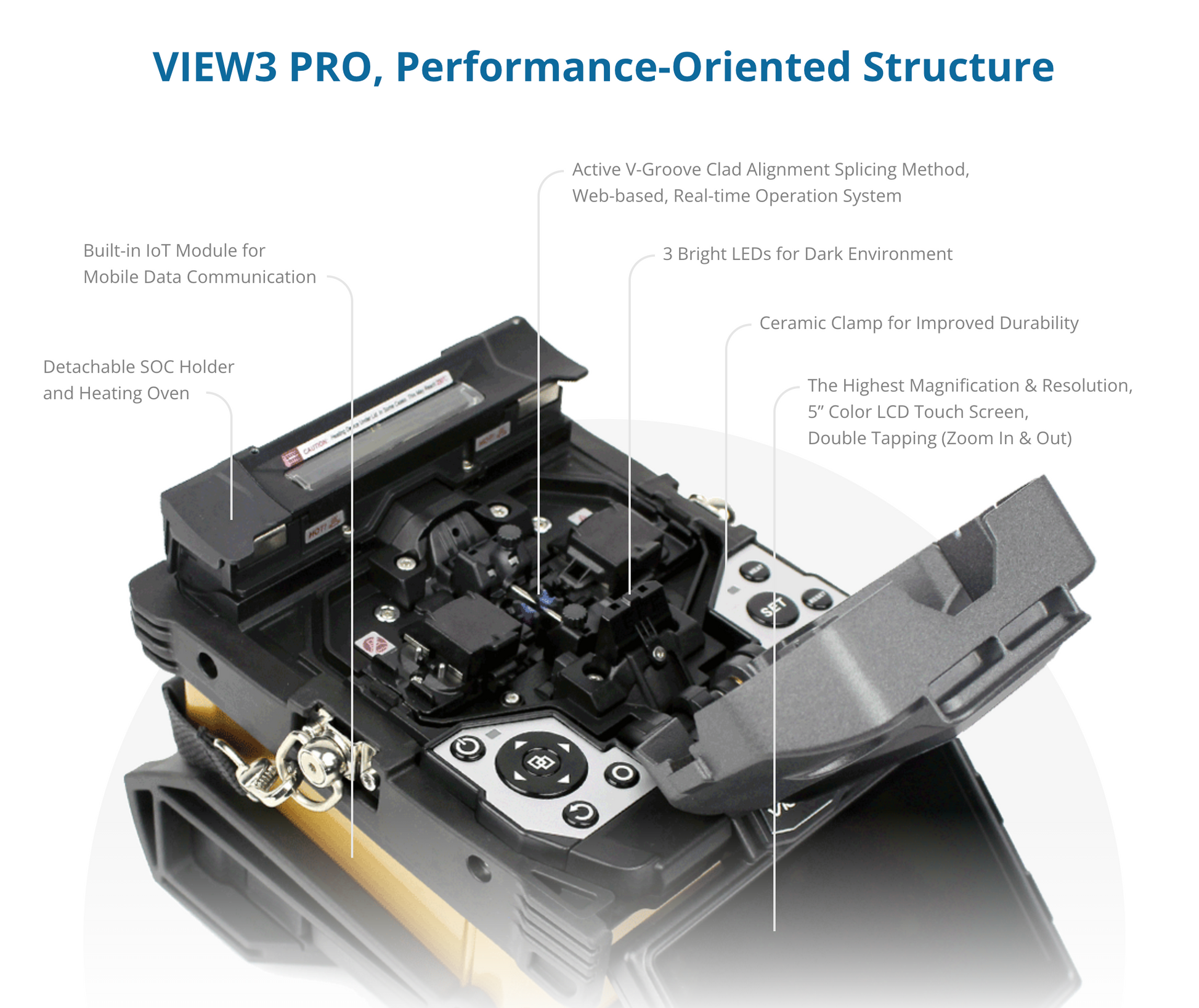

Features
Active V-Groove Clad Alignment Splicing
- Includes V10 PRO Cleaver
- Equipped with FH-45 fiber holder (Standard package)
- Model: FH-45 (Extra Detachable Holders are contained in the Kit)
- Built-in IoT Module for Mobile Data Communication
- 5" Color LCD Touch Screen Display - 520x Magnification
- Detachable SOC Holder and Heating Oven
- Ceramic Clamp for Improved Durability
- 3 LEDs for Operation in Dark Environment
- Average Splicing Time: 9 Seconds
- Heating Time: 15 Seconds
- Pull test：1.96 to 2.25N
- Terminals: Type C / SIM
Specifications
What's in the Box
What's in the Box
- (1) - VIEW3 PRO - Main Unit
- (1) - V10 PRO - Cleaver
- (1) - FH-45 - Fiber Holder Set
- (1) - SH-SOC-R - SOC Holder
- (1) - HTS-SOC-02 - SOC Heater Cover
- (1) - JS-180300 - AC Adapter
- (1) - CG-22 - Cooling Tray
- (1) - E-50 - Electrode Set
- (1) - LBT-52 - Battery Pack
- (1) - ACC-25 - Power Cable
- (1) - ICC-55 - Carrying Case
- (1) - IWS-06 - Work Tray
- (1) - WTB-01 - Work Tray Bolt (M6*8)
- (1) - WTB-02 - Work Tray Bolt (m6*14)
- (1) - USB-7P - USB Cable
- (2) - ST-01 - Shoulder Strap
- (1) - Quick Reference Guide
