View 7 the Best Performing Core-Alignment Fusion Splicer

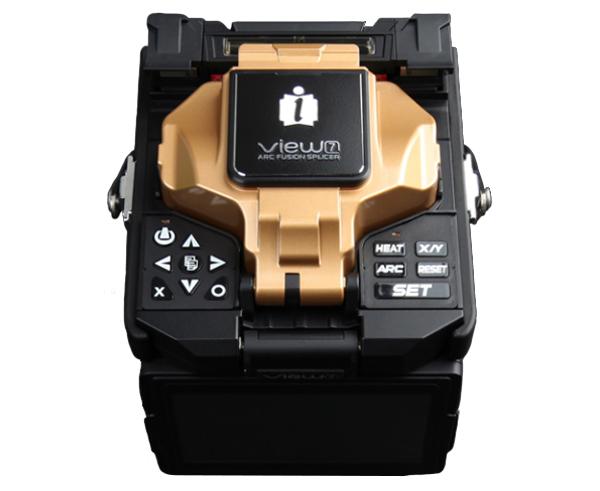

The best-performing core-alignment fusion splicer VIEW 7 is the most powerful and innovative fusion splicer in the market with the world’s highest fiber image magnification rate. View 7’ is equipped with user-friendly GUI on a high-resolution color LCD allowing first time splicer users to easily connect the optical fiber. By double-tapping the screen, all users can see and zoom the optical fiber up to 520 times.
Features
Features
View 7, Speed and Accuracy is Guaranteed
- Detachable SOC heater holder
- 355 Splice per full battery cycle. Long, heatable battery life
- Fast heating in 13sec.

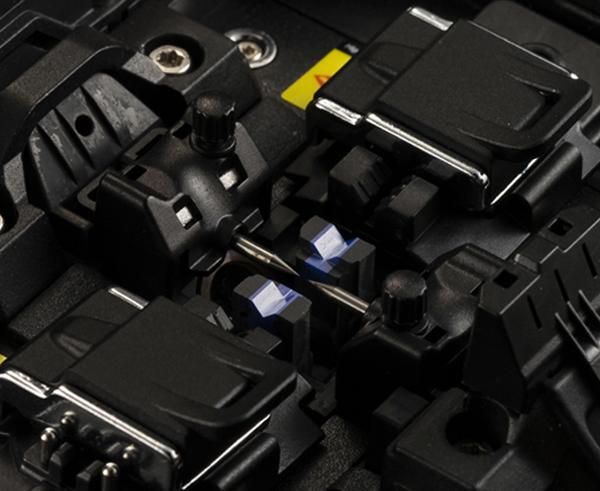

- Easy to replace electrodes
- 3 Bright LEDs for dark environment
- Illuminated Keypads
- Enhanced Durability with Ceramic Clamp

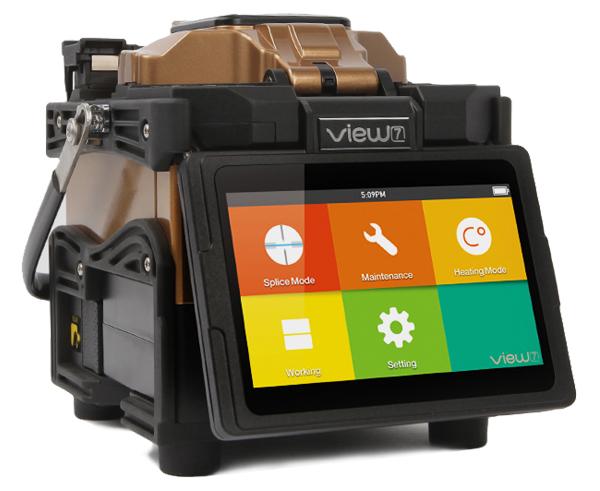

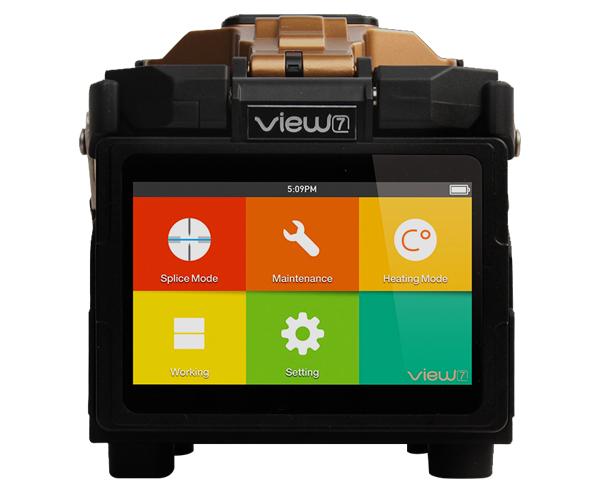

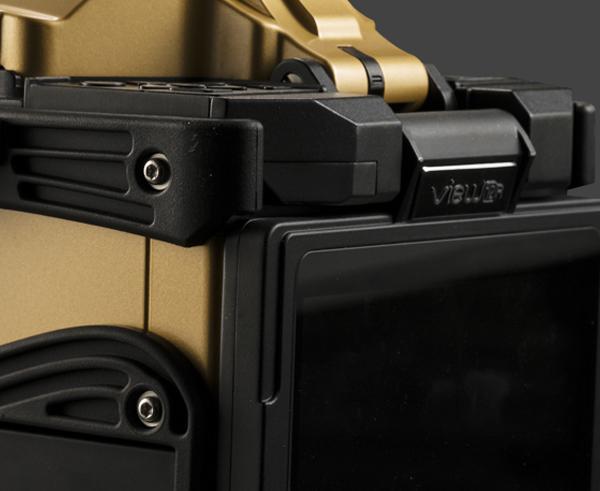

- 5" touch screen, Smart GUI
- Up to 520X magnification
- Double tapping function for fiber optic display zoom in & out
Specifications
| Specifications | |
|---|---|
| Model | View 7 |
| Dimensions |
167mm H x 143mm W x 163mm D (including rubber bumper) |
| Weight |
2.17 KG (without battery) 2.80 KG (with battery) |
| Number of Fiber | Single |
| Applicable Fibers |
SM (ITU-T-G652 & G.657) MM (ITU-T- G.651) DS (ITU-T-G.653) NZDS (ITU-T-G.655) |
| Compatible Fiber / Cable | 0.25mm - 3.0mm / Indoor Cable (with VFH-40) |
| Cleaved Length |
Diameter 0.125mm - 1mm Cleave Length 8-16mm |
| Cladding Diameter | 80µm - 150µm |
| Splicing Mode | Max 128 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss |
SM: 0.02dB MM: 0.01dB DS: 0.04dB NZDS: 0.04dB: 0.02dB(ITU-T-standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time |
Quick mode 7 sec SM mode 8 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20mm - 60mm |
| Heating Time | FP-03 typical heating 13 sec |
| Results Storage | The last 10,000 results |
| Tension Test | 1.96 - 2.25N |
| Operating Condition |
Altitude: 0 to 5000m above sea level Humidity: 0 -95% relative humidity Temperature: -10 - 50°C Wind: 15m/sec |
| Storage Condition |
Humidity: 0-95% relative humidity Temperature: -40~80℃ |
| Display |
90° bi-directional view 5.0" Color High Resolution Display |
| Fiber View & Magnification |
X, Y, XY, X/Y 520X Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice & Heating With Battery |
9000mAh Battery Capacity Typical 355 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0/ Mini USB |
Additional Information
| Product Videos | |
|---|---|
VIEW7 OPERATION |
What's in the Box
What’s in the Box
- Qty 1 - INNO Instrument View 7 Fusion Splicer
- Qty 1 - High Precision Cleaver (V7)
- Qty 1 - Fiber Holder (VFH-40)
- Qty 1 - AC Adapter
- Qty 1 - Cooling Tray
- Qty 1 - Electrode set (E-50)
- Qty 1 - Manual CD
- Qty 1 - Battery Pack (LBT-20)
- Qty 1 - Power Cable (ACC-25)
- Qty 1 - Carrying Case (NBX-35)
- Qty 1 - Fiber Stripper (Jonard or equivalent)
