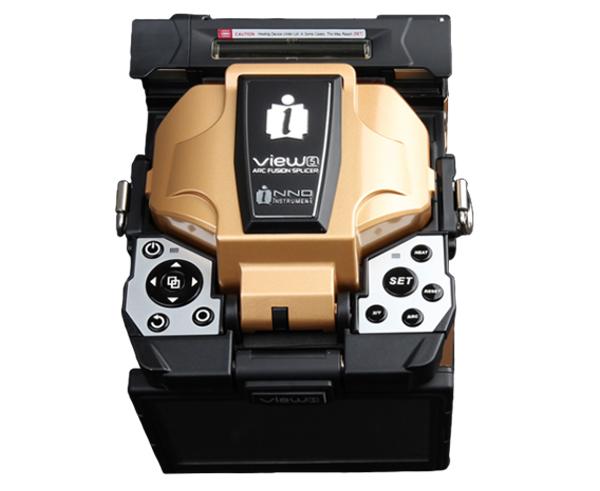

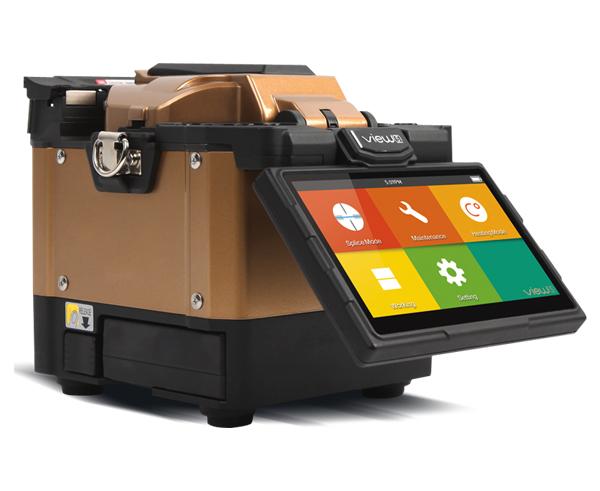

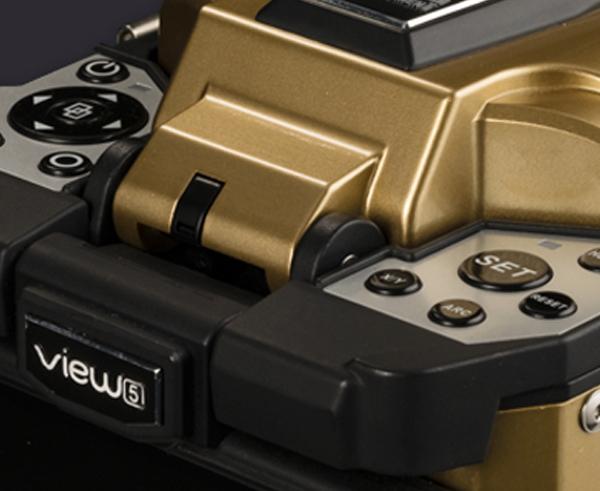

View 5 Exceptionally Convenient Core Alignment Fusion Splicer

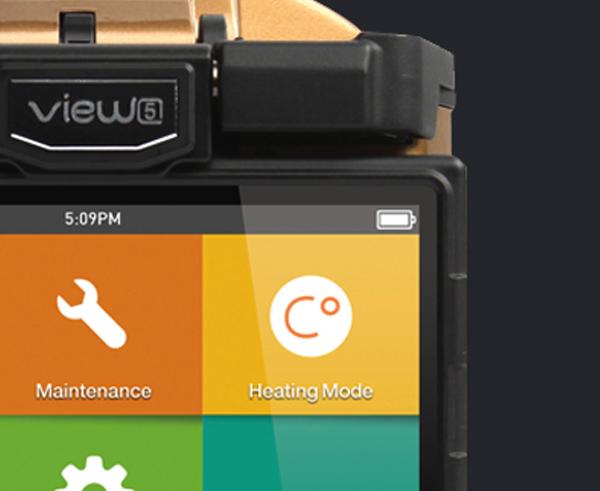

The high-magnification core alignment fusion splicer VIEW 5 provides fiber-optic enlargement for easy and intuitive operation. It has fast, powerful connectivity and innovative performance. VIEW 5 equipped with user-friendly GUI on a high-resolution color LCD allowing first time splicer users to easily connect the optical fiber. By double-tapping the screen, all users can see and zoom the optical fiber up to 520 times.

  • Detachable SOC heater holder
  • Changeable holder for various fiber connections
  • Fast heating in 13sec.

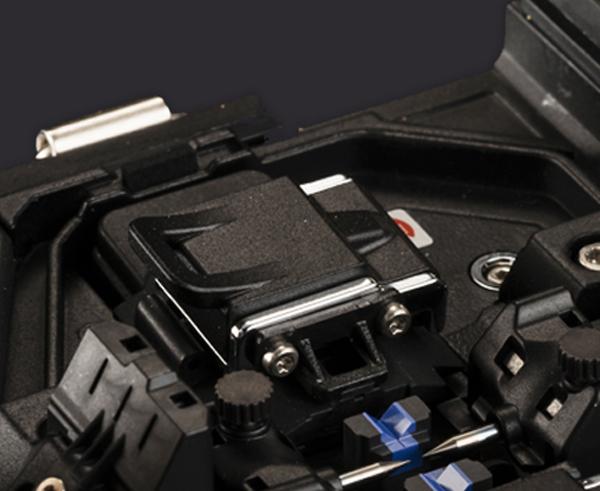

  • Easy to replace electrodes
  • 3 Bright LEDs for dark environment
  • Enhanced Durability with Ceramic Clamp5" touch screen, Smart GUI
  • Up to 520X magnification
  • Double tapping function for fiber optic display zoom in & out




Specifications
Model View 5
Dimensions

147mm H x 130mm W x 155mm D (including rubber bumper)

Weight

1.85 KG (without battery)

2.21 KG (with battery)

Number of Fiber Single
Applicable Fibers

SM (ITU-T-G652 & G.657)

MM (ITU-T- G.651)

DS (ITU-T-G.653)

NZDS (ITU-T-G.655)

Compatible Fiber / Cable 0.25mm - 3.0mm / Indoor Cable
Cleaved Length

Diameter 0.125mm - 1mm

Cleave Length 8-16mm

Cladding Diameter 80µm - 150µm
Splicing Mode Max 128 modes
Heating Mode Max 32 modes
Typical Splice Loss

SM: 0.02dB

MM: 0.01dB

DS: 0.04dB

NZDS: 0.04dB

G.657:0.02dB (ITU-T-standard)

Return Loss >> 60 dB
Lighting 3 White LEDs
Splicing Time

Quick mode 7 sec

SM mode 9 sec

Estimated Splice Loss Available
Heating Sleeve Length 20mm - 60mm
Heating Time FP-03 typical heating 13 sec
Results Storage The last 10,000 results
Tension Test 1.96 - 2.25N
Operating Condition

Altitude: 0 to 5000m above sea level

Humidity: 0 -95% relative humidity

Temperature: -10 - 50°C

Wind: 15m/sec

Storage Condition

Humidity: 0-95% relative humidity

Temperature: -40~80℃

Display

90° bi-directional view

5.0" Color High Resolution Display

Fiber View & Magnification

X, Y, XY, X/Y

520X Magnification

Power Supply AC Input 100-240V, DC Input 9-14V
No. of Splice & Heating With Battery

4200mAh Battery Capacity

Typical 170 times (Splice + Heat)

Operating Methods Button / Touch Screen
Automatic Calibration Automatic arc calibration by air pressure and temperature
Electrode Life 5500 arcs, can be extended by using an electrode grinder
Terminal USB2.0/ Mini USB

View 5 Operation
