VIEW 1, Remarkable Performance, in a Compact Size.

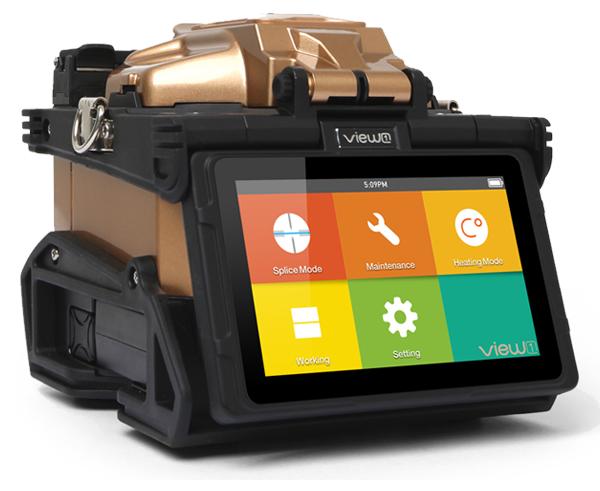

VIEW 1, a portable clad-alignment splicer with innovative performance in compact design, is the most dependable fusion splicer in the market. Equipped with user-friendly GUI and high-resolution color LCD touch screen. You can check the optical fiber with clear images and double-tap screen to enlarge / reduce the screen up to 520X. VIEW 1 gives you the most reliable working environment.
Features
Features
Compactly Designed Active V-Groove Fusion Splicer
- Active V-Groove Clad Alignment Splicing Method
- Light Weight and Handy Size
- The Highest Magnification and Resolution

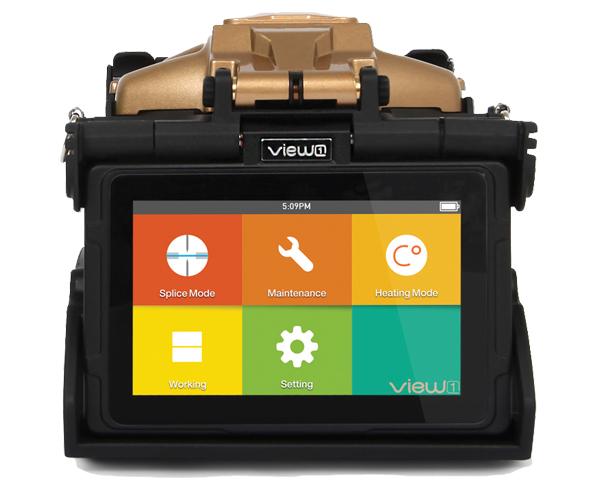

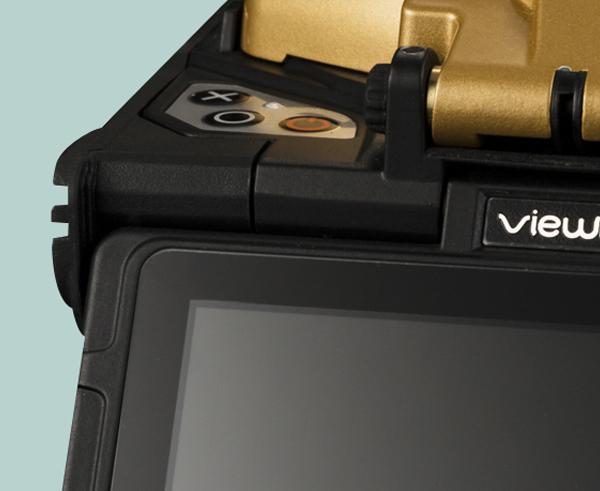

- 4.3” Color LCD Touch Screen

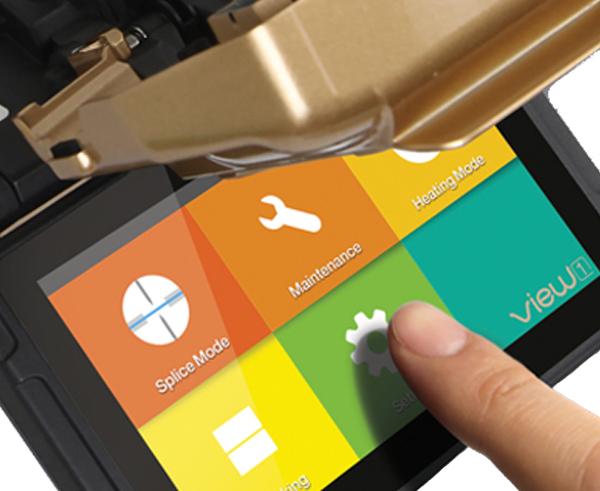

- Double Tapping (Zoom in & out)

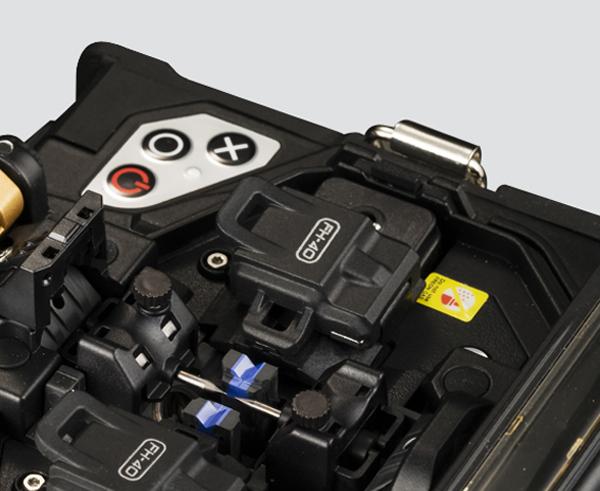

- Detachable SOC Holder and Heating Oven
Specifications
| Specifications | |
|---|---|
| Model | View 1 |
| Dimensions |
137H x 132W x 126D (including rubber bumper) |
| Weight |
1.45 KG (without battery) 1.70 KG (with battery) |
| Number of Fiber | Single |
| Applicable Fibers |
SM (ITU-T G.652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655) |
| Compatible Fiber / Cable | 0.25mm - 3.0mm / Indoor Cable |
| Cleaved Length |
Diameter 0.125mm - 1mm Cleave Length 8-16mm |
| Cladding Diameter | 80µm - 150µm |
| Splicing Mode | Max 120 modes |
| Heating Mode | Max 33 modes |
| Typical Splice Loss |
SM: 0.03dB MM: 0.02dB DS: 0.05dB NZDS: 0.05dB G.657: 0.03dB (ITU-T Standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time |
Quick mode 7 sec SM mode 9 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20mm - 60mm |
| Heating Time | Typical 13 sec |
| Results Storage | The last 10,000 results |
| Tension Test | 1.96 - 2.25N |
| Operating Condition |
Altitude: 0 to 5000m above sea level Humidity: 0 -95% relative humidity Temperature: -10 - 50°C Wind: 15m/sec |
| Storage Condition |
Humidity: 0-95% relative humidity Temperature: -40~80℃ |
| Display |
90° bi-directional view 4.3" Color High Resolution Display |
| Fiber View & Magnification |
X, Y, XY, X/Y 520x Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice & Heating With Battery |
3800mAh Battery Capacity Typical 140 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5500 arcs, can be extended by using an electrode grinder |
| Terminal | USB Type-C |
Additional Information
| PRODUCT VIDEOS | |
|---|---|
VIEW 1 OPERATION |
What's in the Box
What’s in the Box
- Qty 1 - VIEW 1 Fusion Splicer main unit
- Qty 1 - High Precision Cleaver V7
- Qty 1 - Fiber Holders VFH-40 (equipped) / FH-SOC
- Qty 1 - SOC Heat Cover HTN-SOC
- Qty 1 - AC Adapter JS-1618
- Qty 1 - Cooling Tray CG-22
- Qty 1 - Electrode E-50
- Qty 1 - Electrode Grinder EG-18
- Qty 1 - User Manual CD
- Qty 1 - Battery Pack FFLBT-40
- Qty 1 - Power Cable ACC-25
- Qty 1 - USB Cable HDMI-15
- Qty 1 - DC Cable CJ-11
- Qty 1 - HD Carrying Case CJ-11
