Description

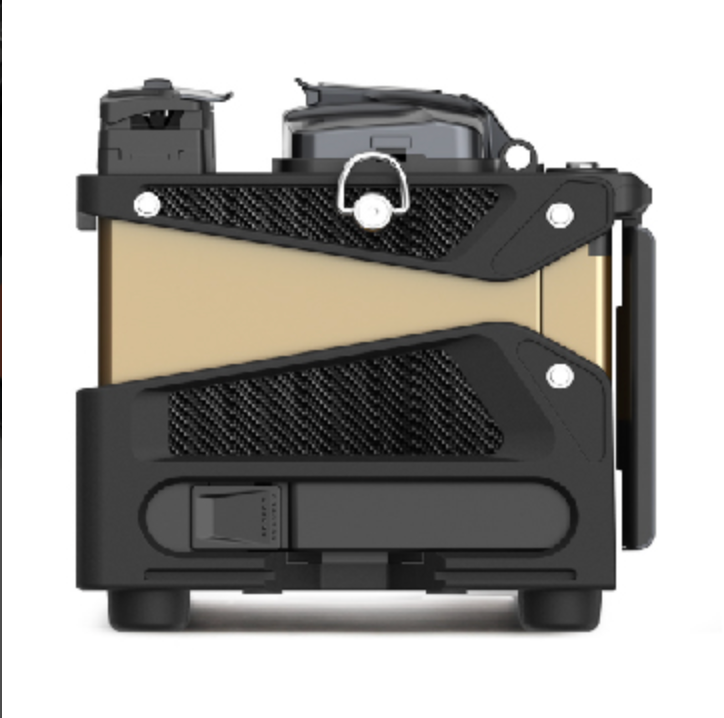

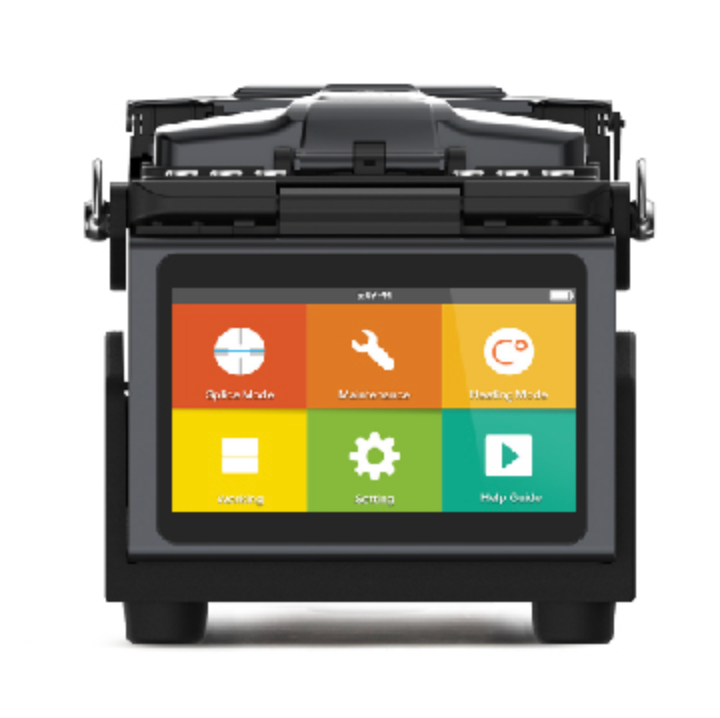

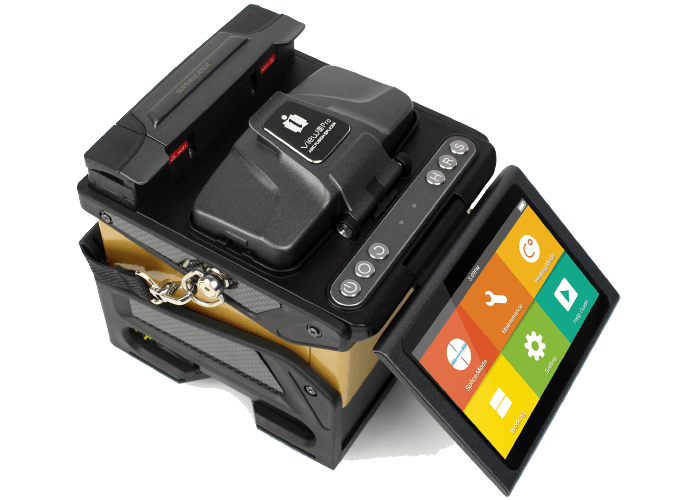

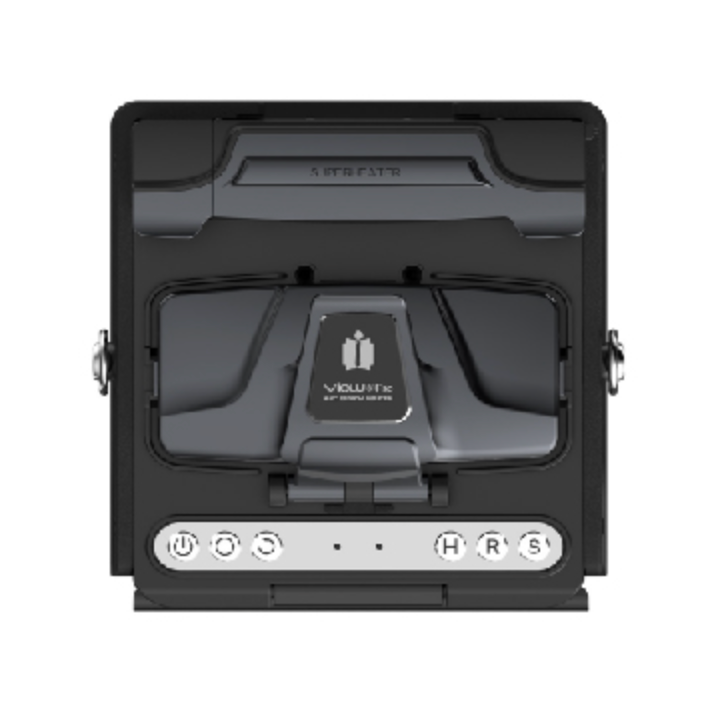

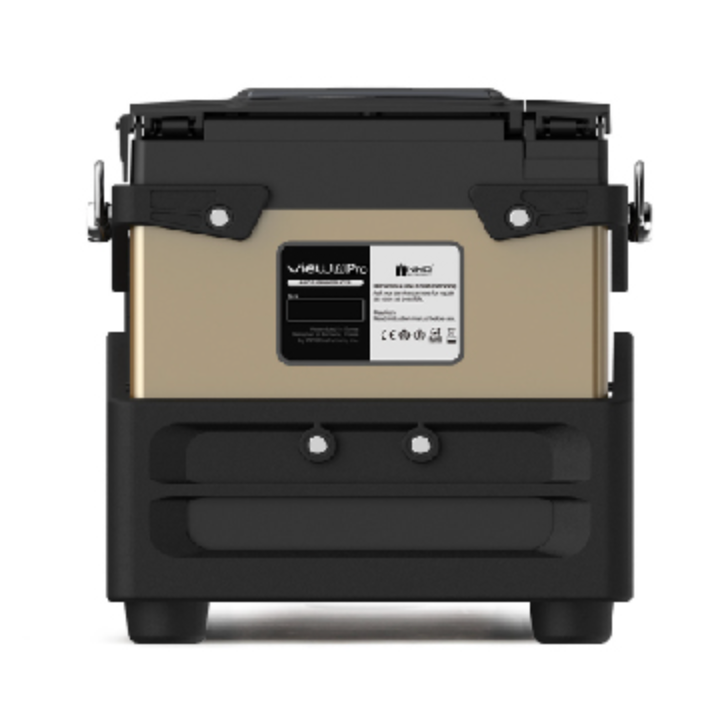

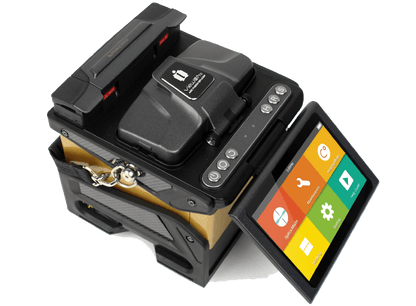

VIEW 8 Pro Arc Fusion Splicer from INNO Instrument
VIEW8 PRO is a premium core-alignment splicer with the world’s highest specification offers maximum work efficiency through the quick mode of 6s splice time and 9s heating time.
In addition to the machine’s superior hardware and technical specifications, the fusion splicer has a built-in IoT module that connects to the INNO’s View Pro Cloud Management System for real-time operation and management online.
This innovative cloud-based solution is designed to create the most advanced yet uncomplicated splicing and work experiences ever.
Features
Features
Premium Core Alignment Fusion Splicer W/ A Cloud-Based Operation & Management System
- Equipped with FH-45 fiber holder (Standard package)
- Model: FH-45 (Extra Detachable Holders are contained in the Kit)
VIEW 8 Pro adopts innovative product design and exquisite manufacturing technology so as to deliver an unprecedented splicing experience to customers. The totally new technology greatly reduces splicing and heating time, and advanced estimation methods and alignment techniques ensure the accuracy of splice loss estimation. The simple but-trendy product design, sophisticated internal structure, and reliable durability make the splicer be suitable for any operating environment.
Power Supply
- Standard AC power voltage: AC 100 to 240V, 50 to 60Hz
- Standard DC power voltage: DC 9 to 14V
Environmental Conditions
- Operating conditions:
- altitude: 0 to 5000m
- relative humidity: 0 to 95%
- temperature: -10 to 50 ℃
- maximum wind velocity: 15m / s
- Storage conditions:
- relative humidity: 0 to 95%
- temperature: -20 to 60 ℃ ,
- battery: -20 to 30 ℃ for long-term storage.
Specifications
| Specifications | |
|---|---|
| Model | View 8+ |
| Dimensions |
162mm H x 147mm W x 157mm D (including rubber bumper) |
| Weight |
2.12 KG (without battery) 2.78 KG (with battery) |
| Number of Fiber | Single |
| Applicable Fibers |
SM (ITU-T-G.652 & G.657) MM (ITU-T- G.651) DS (ITU-T-G.653) NZDS (ITU-T-G.655) |
| Cleaved Length | 8-16mm |
| Cladding Diameter | 80µm - 150µm |
| Splicing Mode | Max 128 modes, Preset 45 user modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss |
SM: 0.02dB MM: 0.01dB DS: 0.04dB NZDS: 0.04dB (ITU-T-standard) |
| Return Loss | >> 60 dB |
| Lighting | 2 White LEDs |
| Splicing Time |
Quick mode 6 sec SM mode 8 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20mm - 60mm |
| Heating Time | Quick mode 9 sec |
| Results Storage | The last 10,000 results |
| Tension Test | 1.96 - 2.25N |
| Operating Condition |
Altitude: 0 to 5000m above sea level Humidity: 0 -95% non dew Temperature: -10 - 50°C Wind: 15m/sec |
| Storage Condition |
Humidity: 0-95% non dew Temperature: -20~60℃ |
| Display |
5.0 inches HD color LCD display |
| Fiber View & Magnification |
320x Magnification Four Display modes |
| Power Supply | AC Input 100-240V, DC Input 19-3.42A |
| No. of Splice & Heating With Battery |
9000mAh Battery Capacity Typical 355 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 5500 arcs, can be extended by using an electrode grinder |
| Terminal | USB2.0/ Mini USB |
Additional Information
View 8+ Splice & Heating with Timecode
What's in the Box
What's in the Box
- Qty 1 - INNO Instrument Premium Core Alignment Fusion Splicer, View 8 PRO Kit
