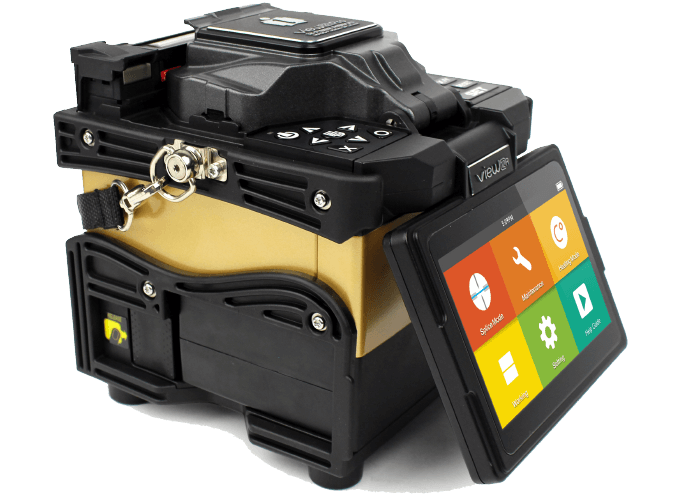

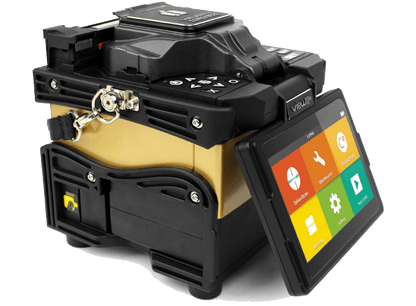

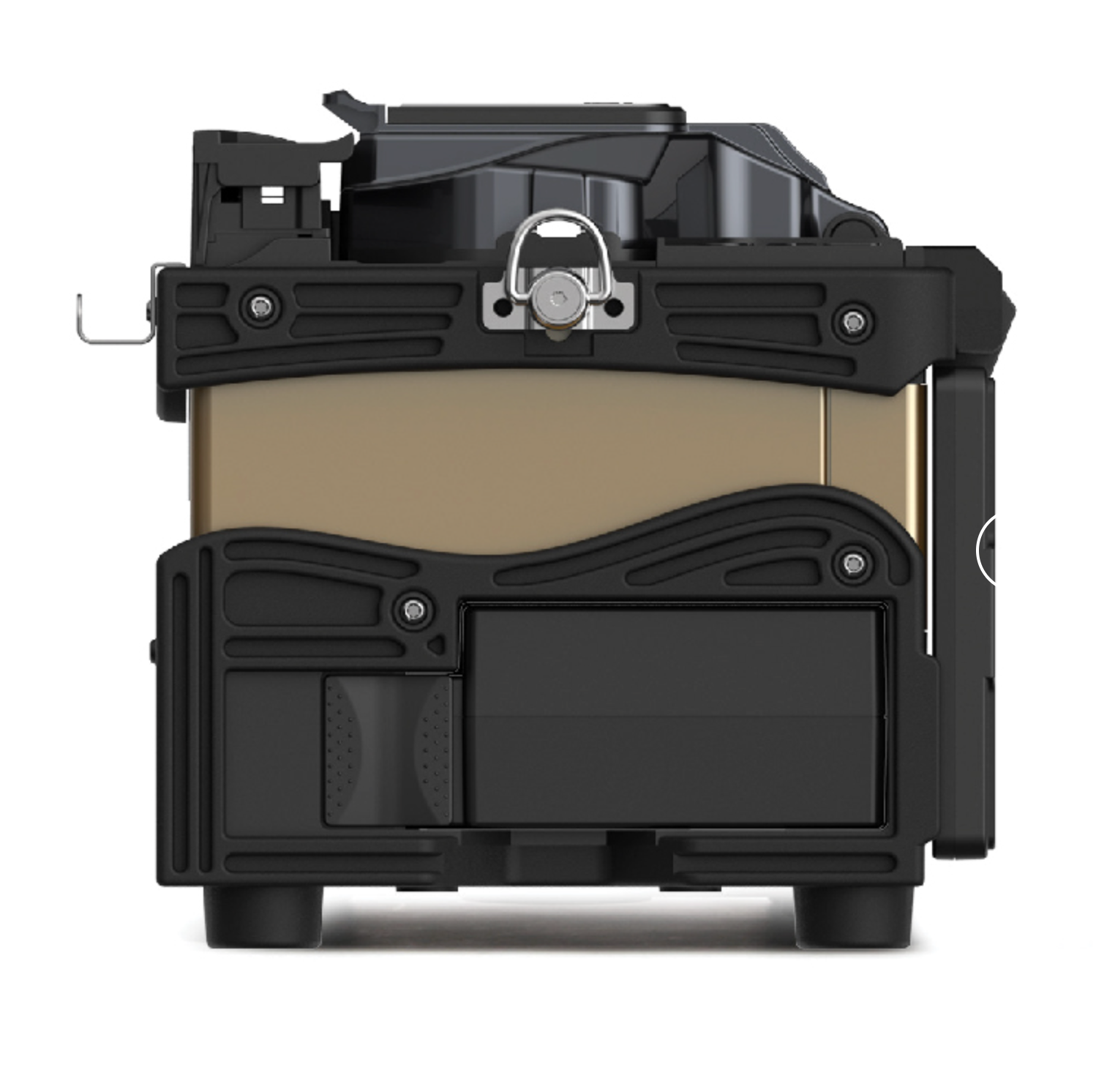

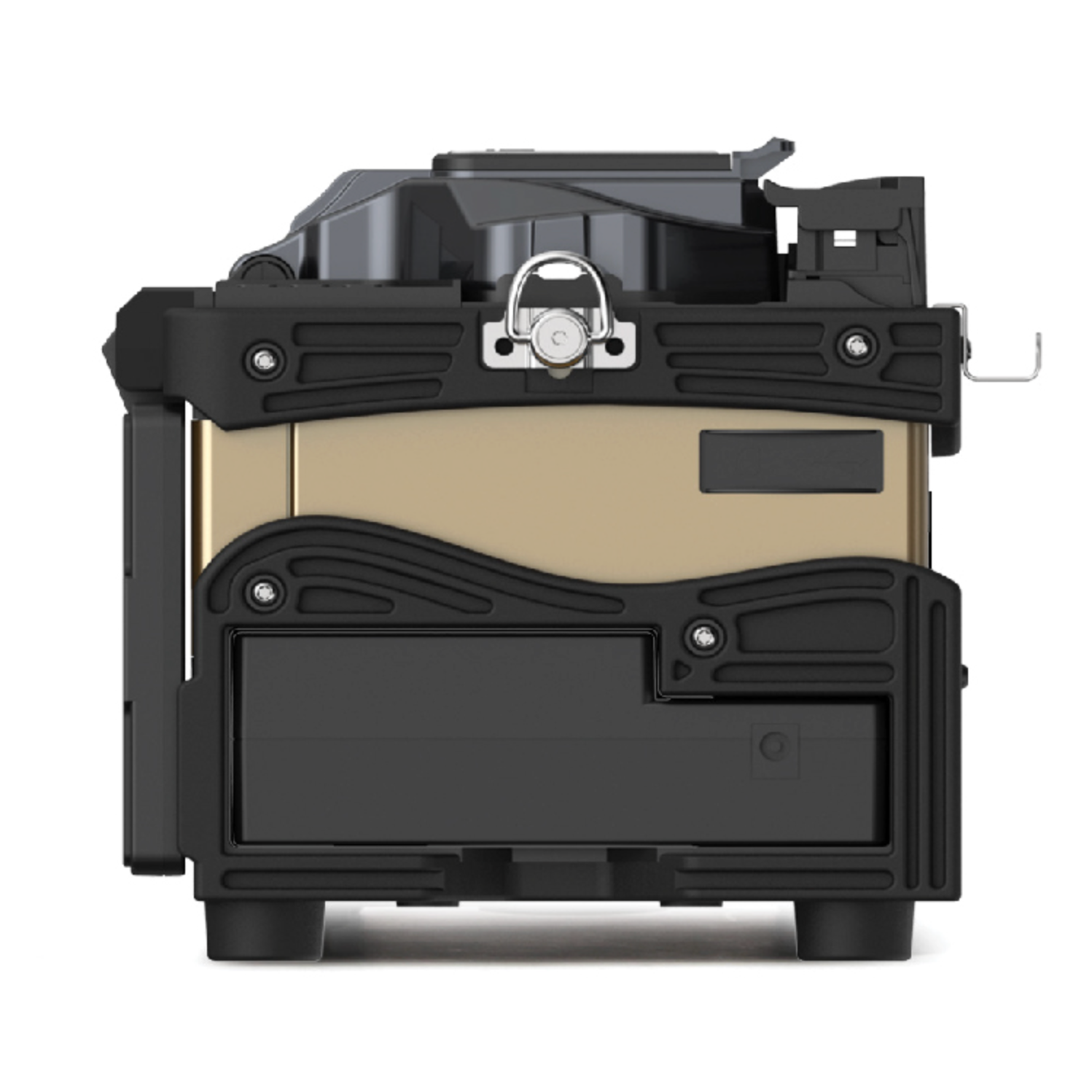

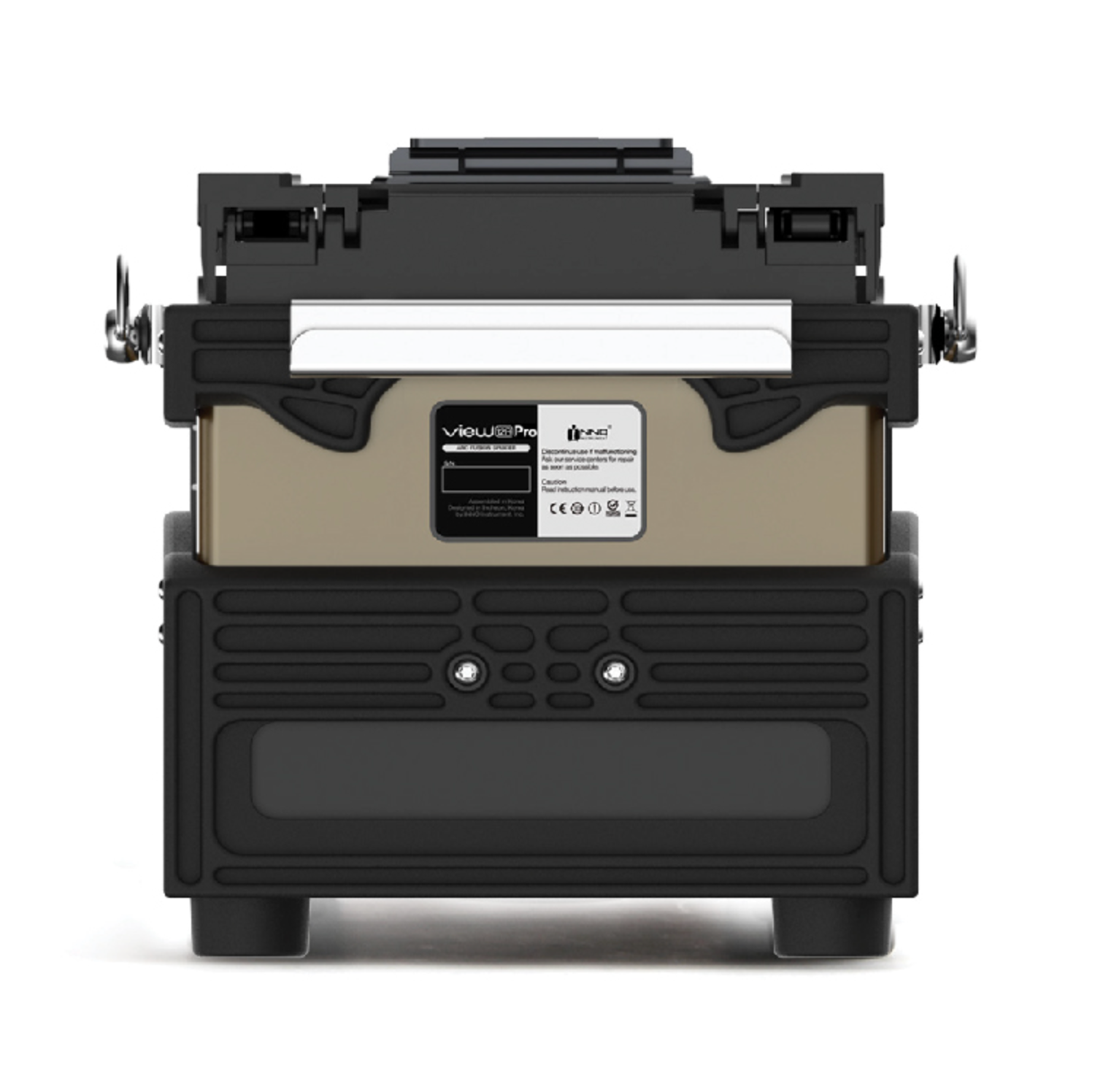

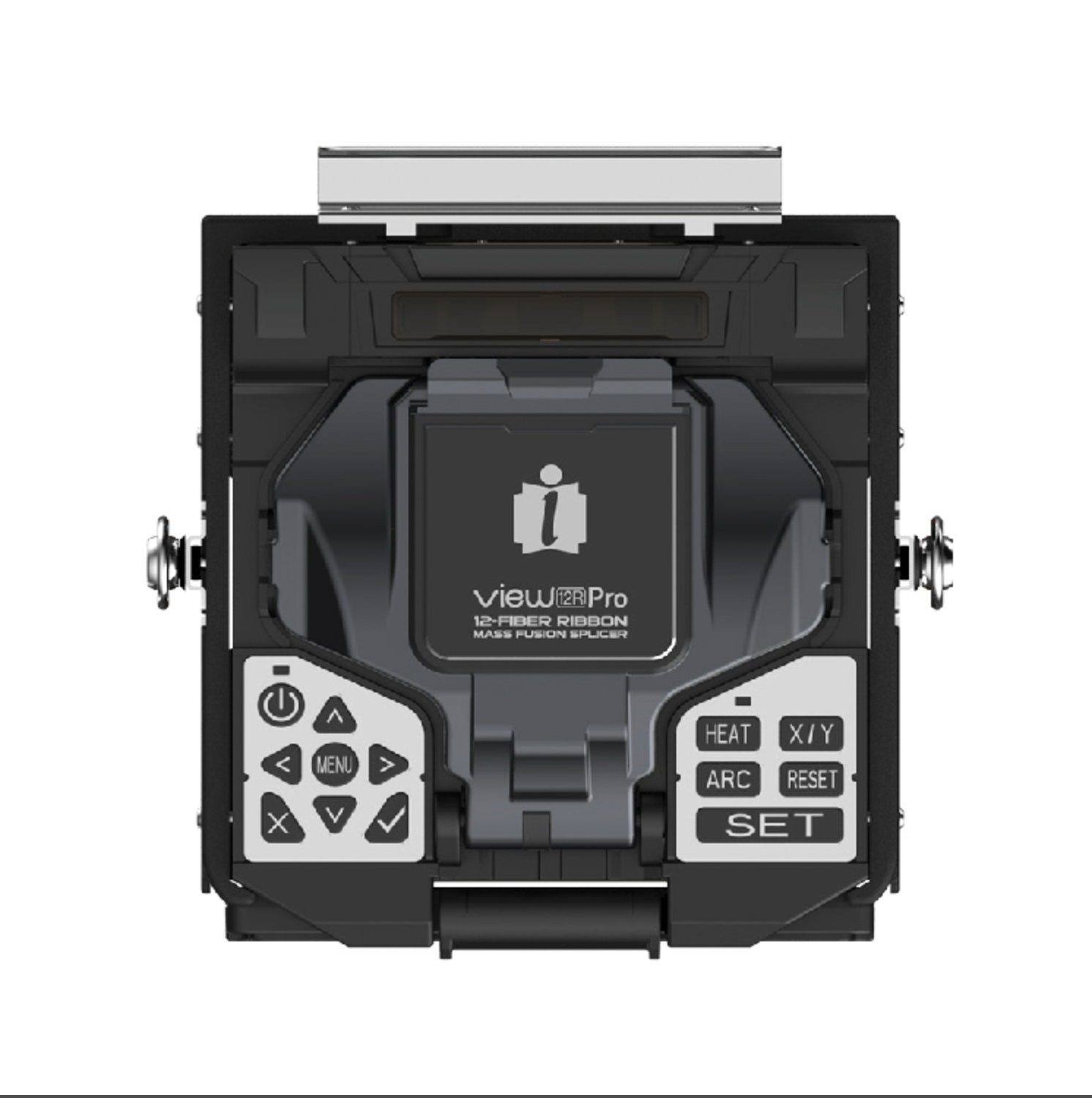

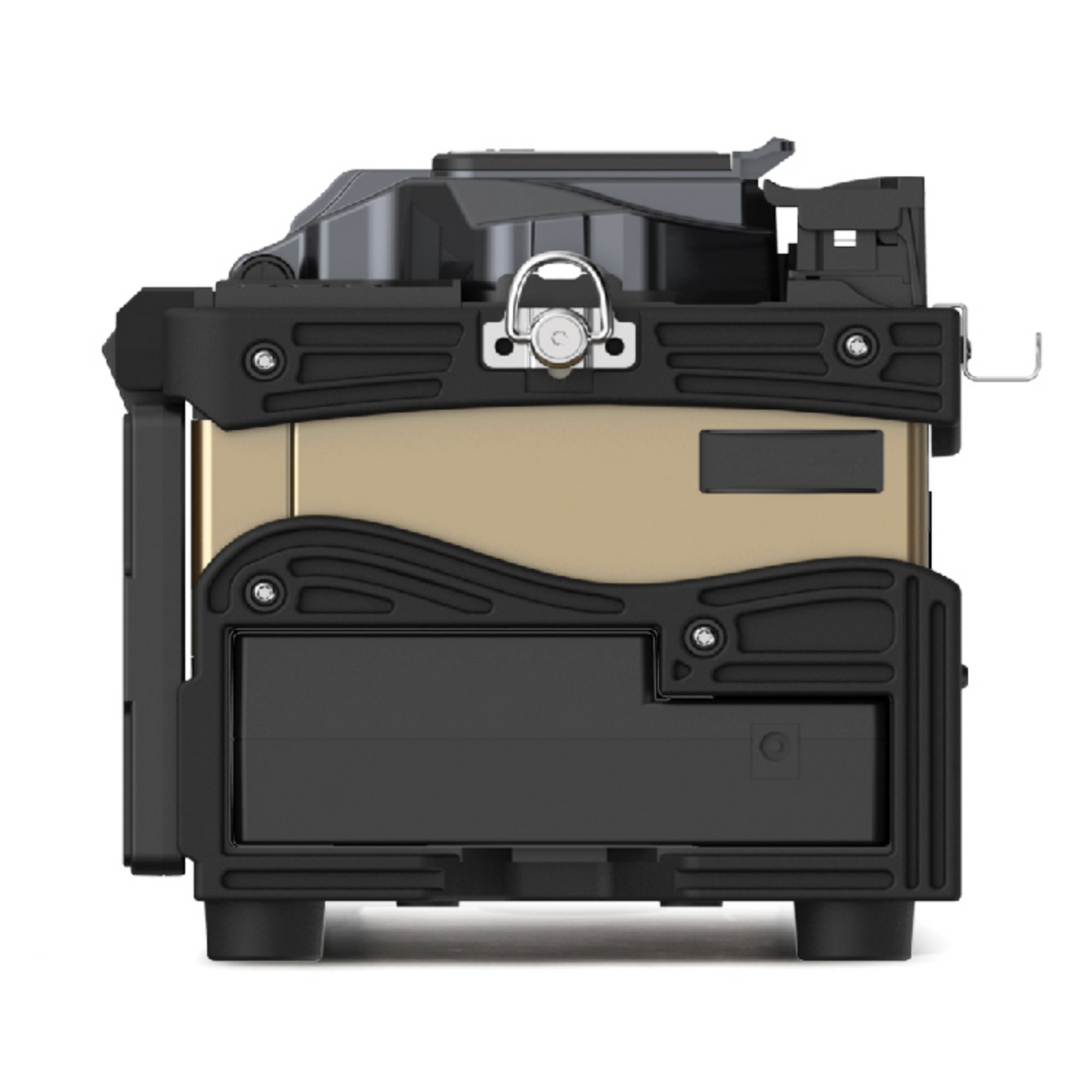

VIEW 12R Pro Arc Fusion Splicer from INNO Instrument
VIEW12R PRO, a ribbon splicer with a fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer in the market.
Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer.
The VIEW12R PRO provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles, and universal holder both for 250μm & 900μm single fiber.
The VIEW12R PRO delivers the most reliable work experiences.
Features
Features
VIEW 12R, MONITORING WEB SERVICE CLAD-ALIGNMENT FUSION SPLICER
- Equipped with FH-12 fiber holder (Standard package)
- Model: FH-12 (Extra Detachable Holders are contained in the Kit)
- The Highest Magnification and Resolution
- Double Tapping (Zoom in & out)
- The Fastest Working Time

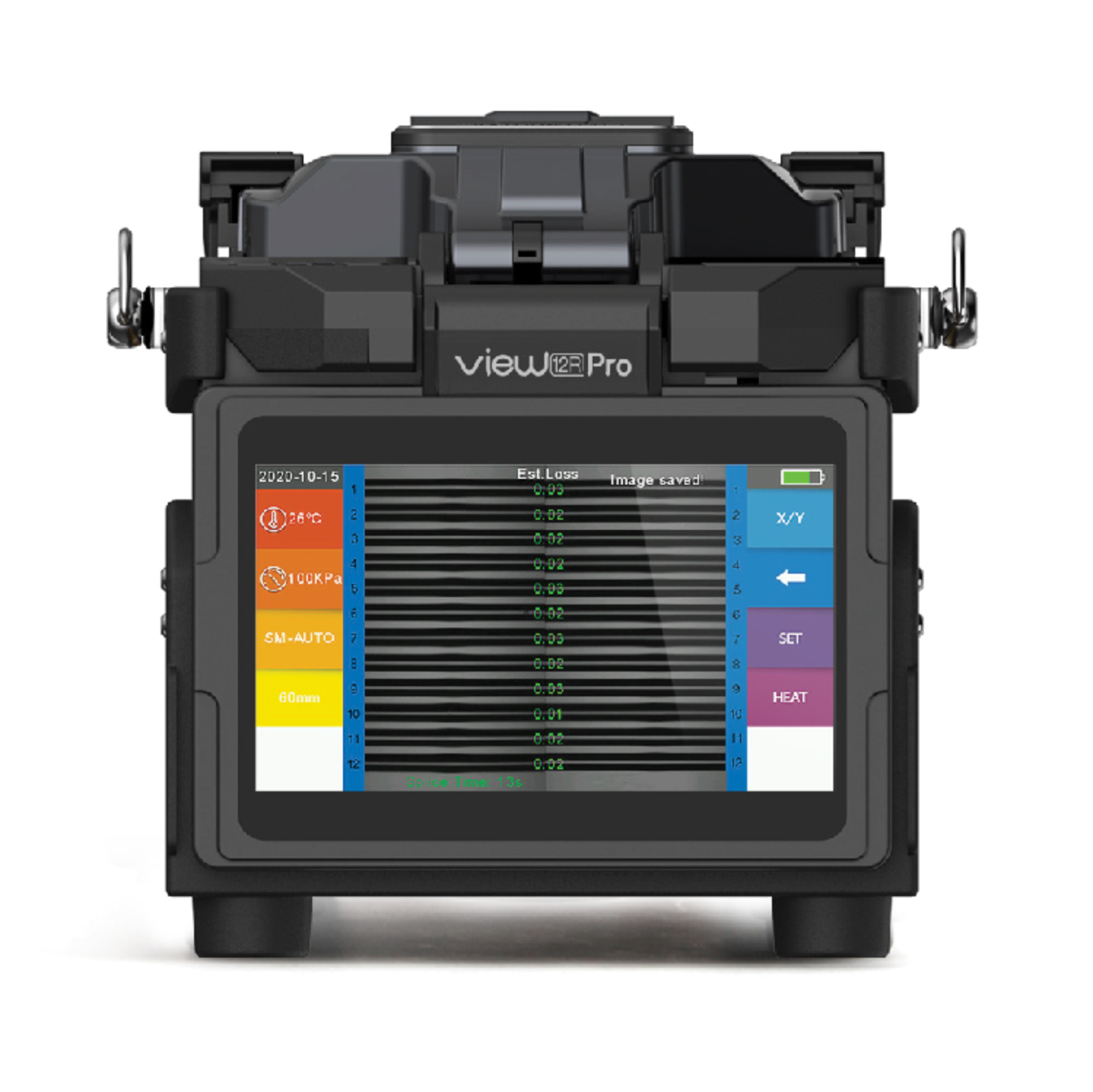

- 5” Color LCD Touch Screen
- Ultra-High Capacity Battery
- Universal Single Fiber Holder
VIEW 12R Pro adopts innovative product design and exquisite manufacturing technology so as to deliver an unprecedented splicing experience to customers. The totally new technology greatly reduces splicing and heating time, and advanced estimation methods and alignment techniques ensure the accuracy of splice loss estimation. The simple but-trendy product design, sophisticated internal structure, and reliable durability make the splicer be suitable for any operating environment. Dynamic operation interface and automatic splice mode provide users great convenience.
Specifications
| Specifications | |
|---|---|
| Model | View 12R |
| Dimensions |
160H x 133W x 155D mm (excluding rubber bumper) 167H x 143W x 163D mm (including rubber bumper) |
| Weight |
1.98 KG (without battery) 2.64 KG (with battery) |
| Number of Fiber | 1, 2, 4, 6, 8, 10, 12 |
| Applicable Fibers |
SM (ITU-T G.652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655) |
| Compatible Fiber / Cable |
Ribbon: 0.25~0.4 mm Single: 250 μm & 900 μm |
| Cleaved Length | 10~13 mm |
| Cladding Diameter | 125 μm |
| Splicing Mode | Max 100 modes |
| Heating Mode | Max 32 modes |
| Typical Splice Loss |
SM: 0.05dB MM: 0.02dB DS: 0.08dB NZDS: 0.08dB (ITU-T standard) |
| Return Loss | >> 60 dB |
| Lighting | 3 White LEDs |
| Splicing Time |
Ribbon fiber: 15 sec Single fiber: 9 sec |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 60mm, 50mm, 40mm, Micro |
| Heating Time | Typical 20 sec |
| Results Storage | Last 5,000 results |
| Tension Test | 1.96~2.25N |
| Operating Condition |
Altitude: 0~3,660m above sea level Humidity: 0~95% relative humidity Temperature: -10~50℃ Max Wind: 15m/s |
| Storage Condition |
Humidity: 0~95% relative humidity Temperature: -40~80℃ |
| Display |
90° bi-directional view 5.0” Color High Resolution Display |
| Fiber View & Magnification |
X, Y, XY, X/Y 250x Magnification |
| Power Supply | AC Input 100-240V, DC Input 9-14V |
| No. of Splice & Heating With Battery |
9000mAh Battery Capacity Typical 220 times (Splice + Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
| Electrode Life | 3000 arcs, can be extended by using an electrode grinder |
| Terminal | USB Type-C |
| Durability Tests |
Shock resistance: Drop from 76cm Dust Resistance: Test in the dust chamber for 8 hours (IP5X) Water Resistance: Dripping water when tilted up to 15° (IPX2) |
